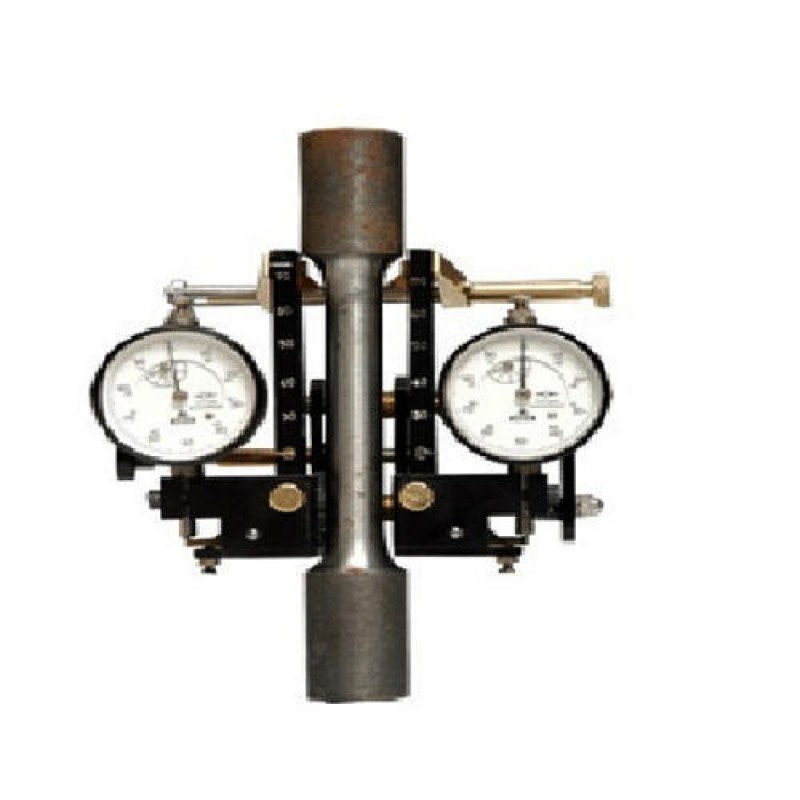

Mechanical Extensometer
Product Details :
We offer our customers a high quality of Mechanical Extensometer which is procured from well-known manufacturers who make the products in accordance with the quality standards that have been set by the industry. We ensure that our products are of a good quality and they provide a long lasting performance to the clients. The products are available in the market at very reasonable rates so that they can be easily afforded by the clients.
Features :
- It is an attachment to Universal Testing Machine and Tensile Testing Machines, used to find out the proof stress at the required elongation percentage.
- It measures the elongation of a test piece on load for the set gauge length.
- Least count of measurement 0.01 mm and maximum elongation measured upto 3 mm.
- Adjustable gauge length from 30 mm to 120 mm
- Round specimen from 1 mm to 20 mm dia. and flat specimen from 1 mm to 20 mm thickness can be accommodated.
Specifications :
- Model: FME-1
- Measuring Range: 0 - 3 mm
- Least Count: 0.01 mm
- Gauge length adjustable from: 30 - 120 mm (30 - 70 mm can also be given)
- Specimen size: Round 1 to 20 mm or flat upto 20 x 20 mm
