Modular Beer Measuring System :
Animo-5100
All relevant process control parameters in one go

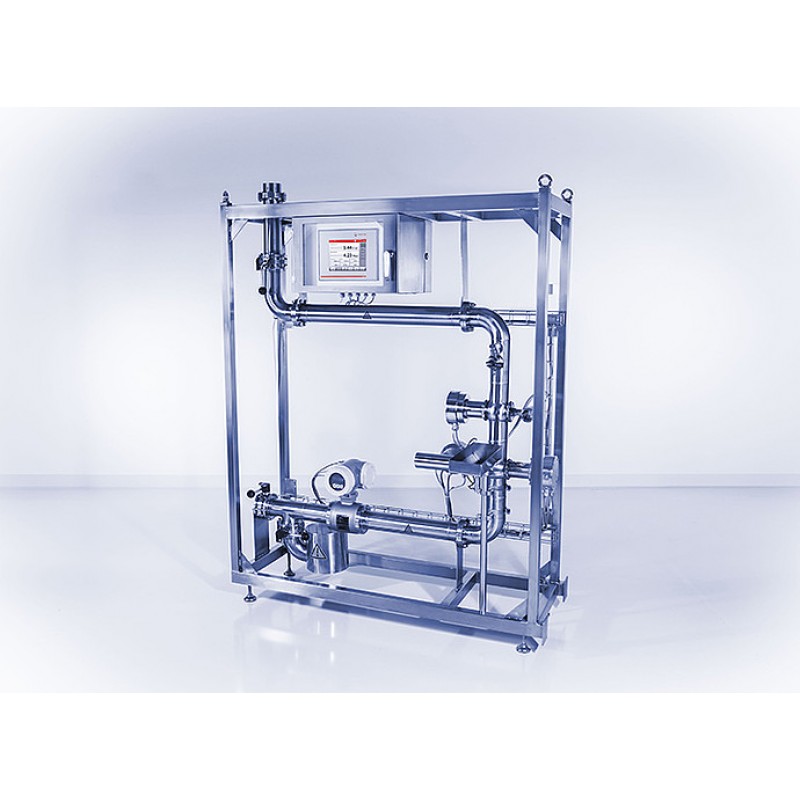

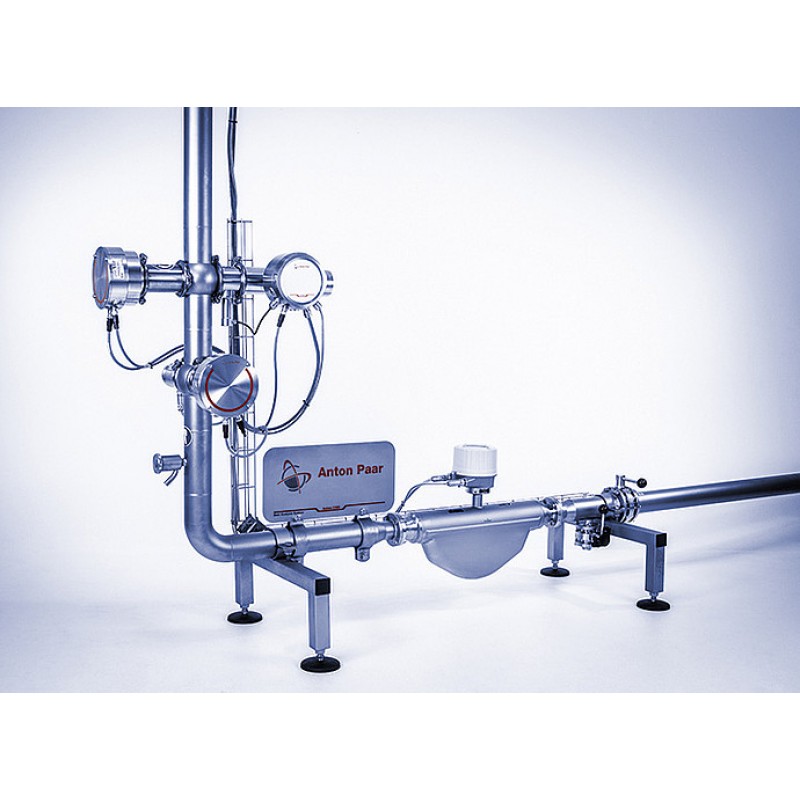

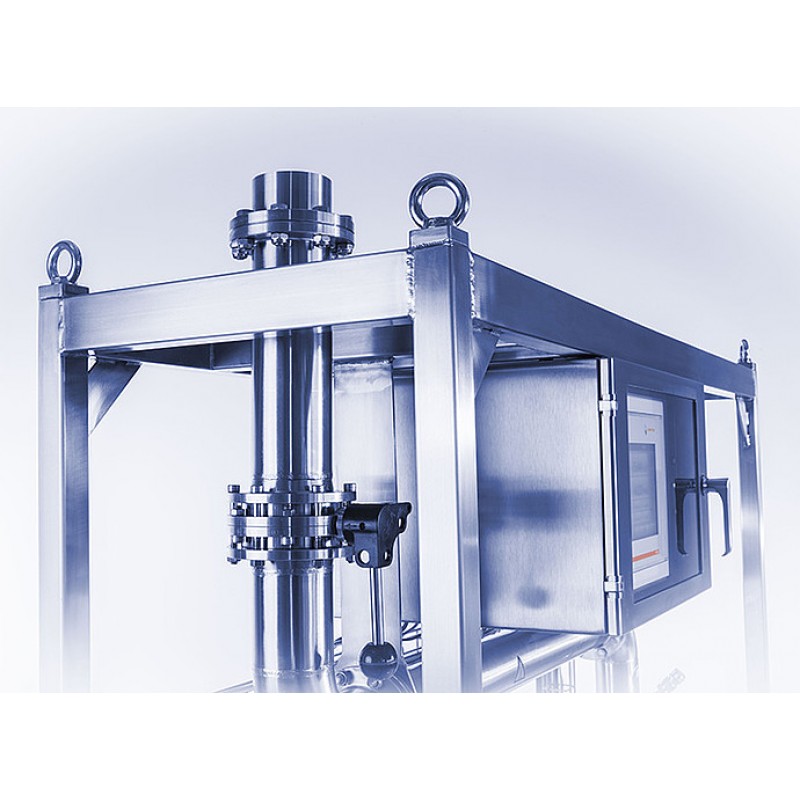

Our fifty years of experience in the beverage industry led to Animo 5100, a complete multiparameter measuring system including the Davis 5 analysis software which performs perfect quality monitoring in the filling line. Animo 5100 comes in either a modular framework construction (skid) that can easily be tailored to your actual production line or as a pipe assembly which is directly integrated into the production line.
By providing services such as project engineering, system design, installation, and commissioning, Anton Paar makes the all-in-one package complete.
Key Features :
Zero effort, real-time process monitoring: mPDS 5 evaluation unit
Anton Paar’s process analyzers don’t require time-consuming on-site adjustments as all systems are delivered with factory pre-configurations. The integrated mPDS 5 evaluation unit enables easy data exchange, remote control, and diagnosis via the fieldbus of your choice.
Tracing your production quality from your desktop: Davis 5 analysis software
With the Davis 5 analysis software, the statistical evaluation and traceability of production line performance and product quality can be done directly from your desktop computer.
Davis 5 also enables:
- Tracing of calibration and adjustment activities and data for reliable proof of measuring quality
- Automated transfer of laboratory reference values to the process instruments

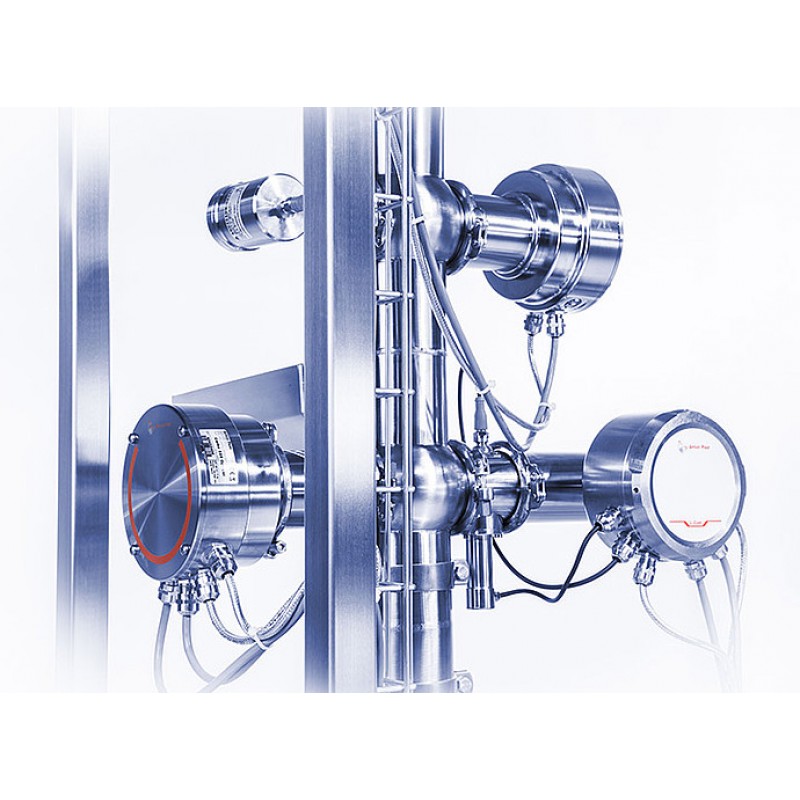

Accurate and reliable alcohol and extract measurement: L-Com 5500
L-Com 5500 is a highly stable combined density and sound velocity sensor which automatically compensates for process variations and changing environmental conditions. It ensures drift-free and reliable measuring results during filler stops and product changeovers.
Drift- and maintenance-free CO₂ measurement: Carbo 520 Optical
The integrated Carbo 520 Optical inline CO2 sensor is highly economic due to:
- Zero maintenance due to optical measurement concept
- Zero drift during CIP and long-term stability due to gas-tight sealed sensor unit
Optional sensors for customer-specific solutions
Pressure and temperature measurements are carried out by L-Com 5500 and additional sensors can also be integrated upon request.
Technical specifications :
Parameter | Range | Accuracy |
Alcohol | 0 ... 12 %w/w 0 ... 15 %v/v | +/-0.02 |
Real extract | 0 ... 12 °Plato | +/-0.02 °Plato |
Original extract | 0 ... 35 °Plato | +/-0.04 °Plato |
Dissolved CO2 Concentration | 0 ... 6 Volumes 0 ... 12 g/L | 0.025 Vol. 0.05 g/L |
Dissolved O2 Concentration | 0 ppb ... 2000 ppb optional 0 ppm ... 22.5 ppm (0 ... 50%) | ≤+/-1 ppb or +/-3 % (the larger value is valid) ≤+/-0.1 % O2 or +/-3 % (the larger value is valid) |
Conductivity | Range (adjustable): <10 mS/cm 10 ... 100 mS/cm 100 ... 999 mS/cm | Resolution: 1 μS/cm 10 μS/cm 100 μS/cm |
Temperature measurement | -3 ... +145 °C | +/-0.1 °C |
Pressure measurement | 0 ... 16 bar absolute | +/-0.1 bar |
Flow | v = 0.01 ... 10 m/s with the specified measuring accuracy | +/-0.5 % of reading +/-1 mm/s |
Color (option) | 0 ... 30/150 EBC (depending on optical path length) | Reproducibility: +/-1 % transmission |
