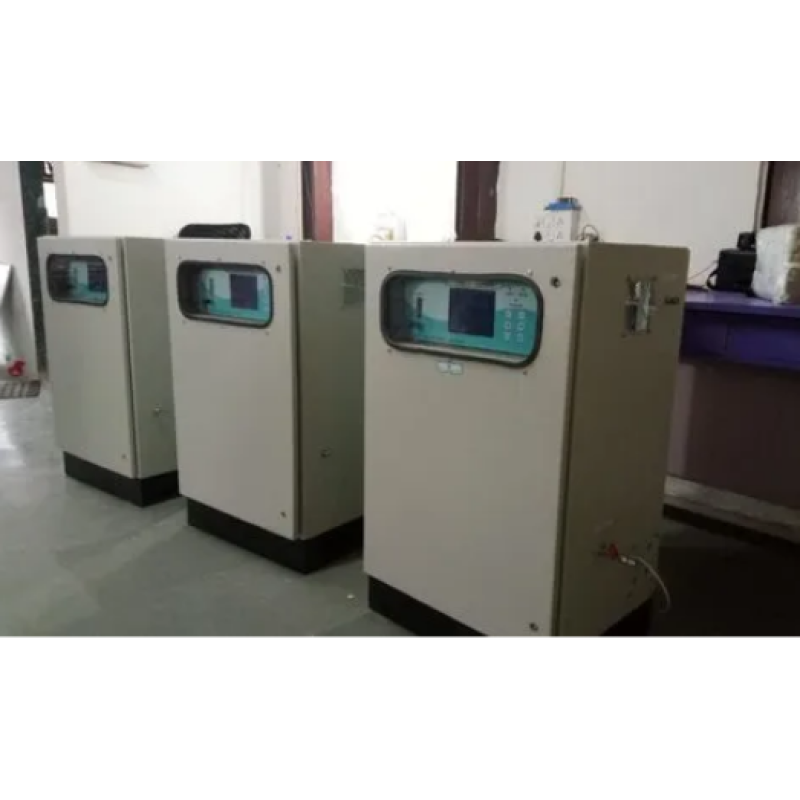

Continuous Emissions Monitoring Systems (OCEMS)

Product Details:

Application	Industrial Use
Brand	Applied Techno Systems
Gas Measurement	O2,CO,CO2,NO,NO2,HF and Many More
Temperature Range	-5 to 55 Deg C
Accuracy	+-1%
power supply	230 V AC
Analog Output	4-20mA
Digital Output	USB RS-232,RS-485,MODBUS
Display	LCD Graphic Display
Humidity	95% RH
Response Time	less than 30 seconds at 95% variation
output	4-20mA

Applied Techno Systems is Inginiuos manufacturer of Continuous Emission Monitoring Systems which includes Gas ANalyser, Gas Sampling Systems, Tempreture , flow & Opacity dust Monitoring Systems with real time data transmission Systems to CPCB & SPCB.
Applied Continuous Emission Montoring CEMS fullfill the environmental regulatory compliance of various industrieal sources of air pollutant.
Features:

• Microcontroller based embedded intelligent instruments

• Continuous Monitoring of CO2 ,CH4, CO, O2, SO2, NOX (NO NO2), H2, H2S, N2

• Duel wavelength Infra red sensor for Long terms accuracy and stability

• Long Life Electrochemical sensor

• Six Gas Analysis in Single Analyser

• Multi Parameter Single 320 X 240 Graphics LCD Display

• Self diagnostic & Self integrity check

• RS 232/RS 485 and USB Computer Interface

• Excellent low level capability for NOX and SO2 Measurement

• For most of the application sample gas is cooled and dried inside the sampling conditioning systems to avoid the Heated Sample Line.

• Analog 4-20mA output for each gas

• Software solutions for Gas Analysis

• Web Based Real time data transfer
