- Magnification: 25 X to 1500 X.
- Body: Light Weight, latest design with improved system for strain free working. Eyepiece Tube: Inclined at 30 degrees.
- Observation Head: Rota table through 360 degrees. All prisms and optical surfaces are with antireflection coating.
- Condenser: Sub stage bright field condenser having numerical aperture N.A.1.25, moveable on rack and pinion with filter holder and iris diaphragm.
- Coarse Focusing: 25 mm / Rotation range.
- Fine Focusing: 2 mm / Rotation range.
- Nosepiece: Quadruple.
- Illumination Lamp: Rating of halogen bulb 6 Volts / 20 Watts.
- Illumination Control: Step down transformer with regulator built in microscope. Filters: Blue.
- Eye Piece: Wide Field 10X, Hugenian 15X.
- Objectives: Achromats 5X, 10X, 45X spring loaded, 100X oil immersion spring. Mechanical Stage: Fine graduated scales with vernier engraved.
- Free Spare Accessory: Halogen Bulb, Dust /Microscope Cover.
- Storage /Packing: Thermocole Box.
- Guarantee: One Year.

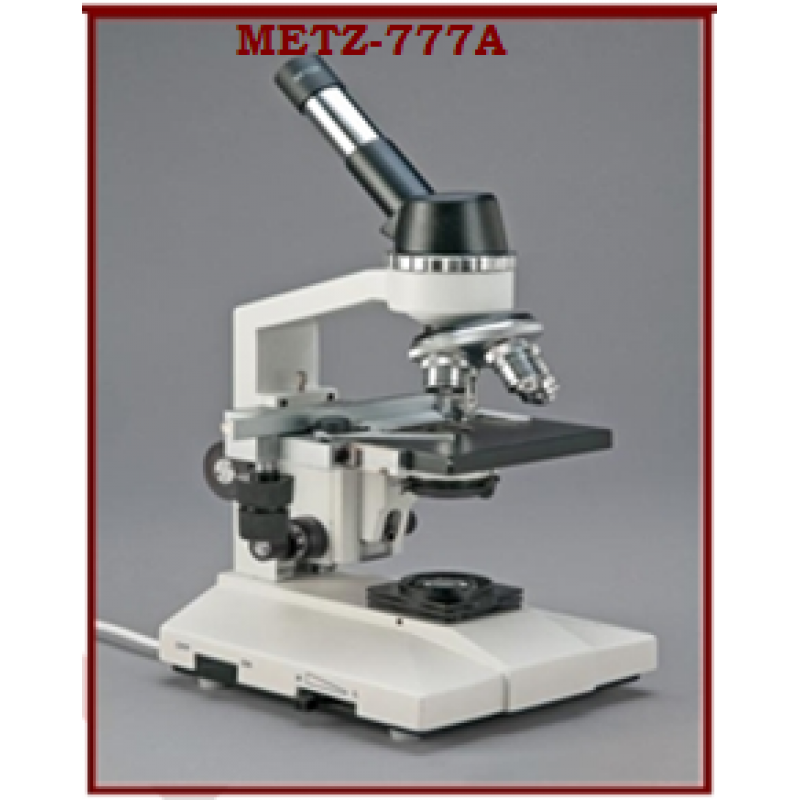

Monocular Research Microscope
- Views: 527
-
Gravity Lab - Vendor Type: Manufacturer
- Product Code: GLL0000024
- Availability: In Stock
- ₹0
