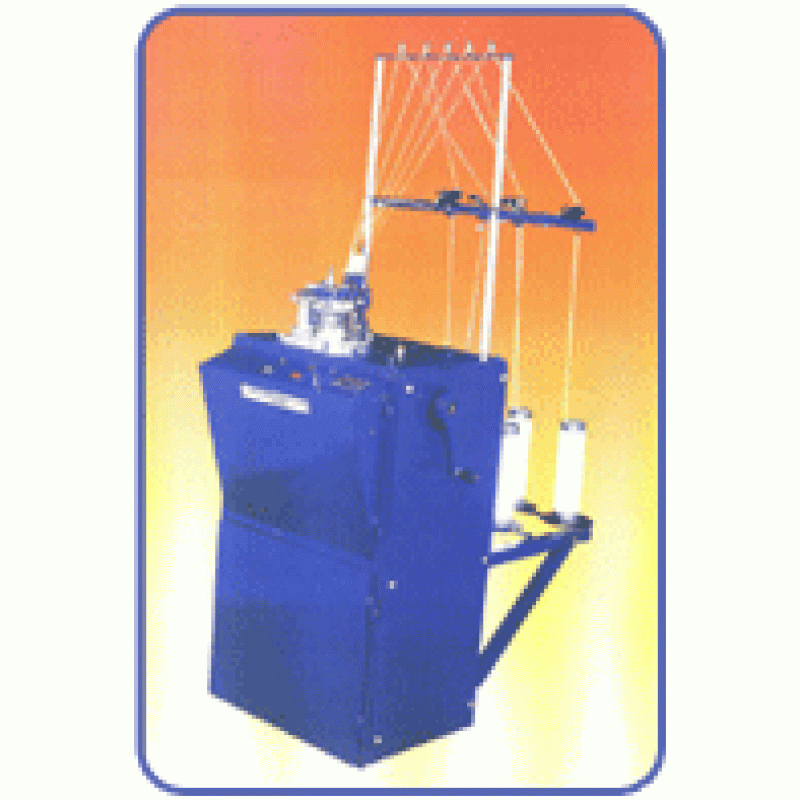

Multi Feeder Knitting Machine

Purpose

The yarns to be necessarily sampled for test-dyeing are some synthetic polymer yarns of esters and processed, such as Draw-textured yarn, Draw yarn, and Textured yarn, etc. and these processed yarns have an inevitable tendency to dye with irregular shades even in a batch, according to individual yarns produced on different processing section of the same machine, and consequent\lay this cause drying troubles on the stage of piece-dyeing with an irregularly dyed woven or knitted yarn that appears distinctively against other yarns dyed in unified shade and color in the fabric. Similar troubles are also caused when dyed yarns processed in the package dyeing have been woven or knitted into a fabric, because the fabric thus produced is found often to include some yarns dyed with shade remarkably different from other yarns. This is because of difficulty in distinguishing slight color difference between one and another packaged yarn before weaving or knitting. The dyed yarns processed in the package dyeing must also be classified by color difference into some groups of yarns in unified color, by using the knit test-pieces representing the color consistency or shade of yarns in each package.

Features Features :

• Textured Yarn : 150-30 Denier
• Partially oriented Yarn : 150-30 Denier
• Automatic changing of 5 ends
• Running speed : 80-100 rpm
• Tension Adjustment.
• Creel stand for 5cops.
• Length of Meshes continuously adjustable from 2"-6"
• Both fine and coarse yarn can be run in one machine
• Cylinder diameter 3.5"
• Needle Gauge Standard 48. If desired 20,24,28 or 32 Gauge can be provided.
• Length of Meshes continuously adjustable.
• Yarn threading Controlled by brakes with Yarn breakage detector.
• Automatic decreasing of RPM when changing to another bobbin.
• Fabric take down rollers device (optional)

Application :

Knitting Directly from bobbin car from the creel of cops on the machine to produce knitting hoses from textured yarn,or from draw twisted yarn for dye affinity control

Knitting from Bobbin Car

Application :

Knitting Directly from bobbin car from the creel of cops on the machine to produce knitting hoses from textured yarn,or from draw twisted yarn for dye affinity cont
