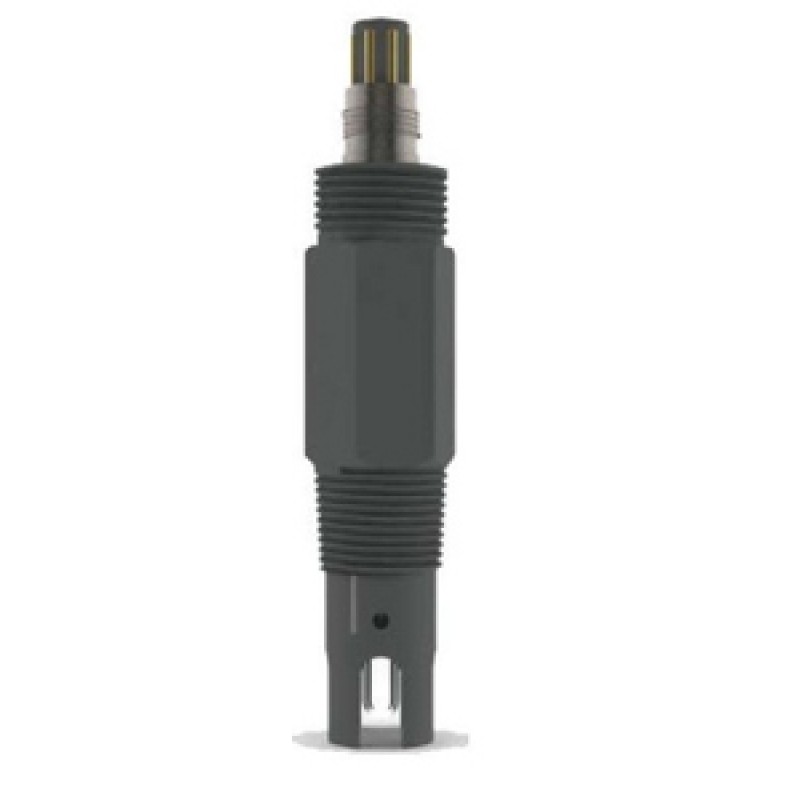

Online Industrial Ph Electrodes

Product Details :

Standard Industrial pH Electrode Configuration :-

• Model :- REF-200
• pH Measuring Range:- 0~14pH
• Low resistance sensoring film,
• Ceramic salt bridge,
• 3/4" NPT thread,
• 3.0KCl electrolyte can't be re-filled.
• Temp:-0~60 C
• Working pressure: 0.4MPa (Even high pressure is option)Cable length: 5 meter with BNC header Glass electrdoe, NYLON jacket

HIGH PERFORMANCE pH Electrodes Configuration :-

• Model:- REF-300
• pH measuring Range:- 0~14pH
• Low resistance sensoring film
• Ceramic salt bridge
• 3/4" NPT thread
• 3.0KCl electrolyte, can't be re-filled.
• 0.1MPa / 0.4MPa / 0.8MPa pressued, long lifespan.
• Temp:-0~85 C (0~130 C is optional)
• Working pressure: 0.6MPa (Even high pressure is option)
• Cable length: 5 meter with BNC header (VP header is optional)Glass electrdoe, PPS jacketLiquid ground pole: Available. Can be used in dual high-impedance differential amplifier, improve anti interference, improve response speed.
