Operating Terminal / Remote Operating Terminal

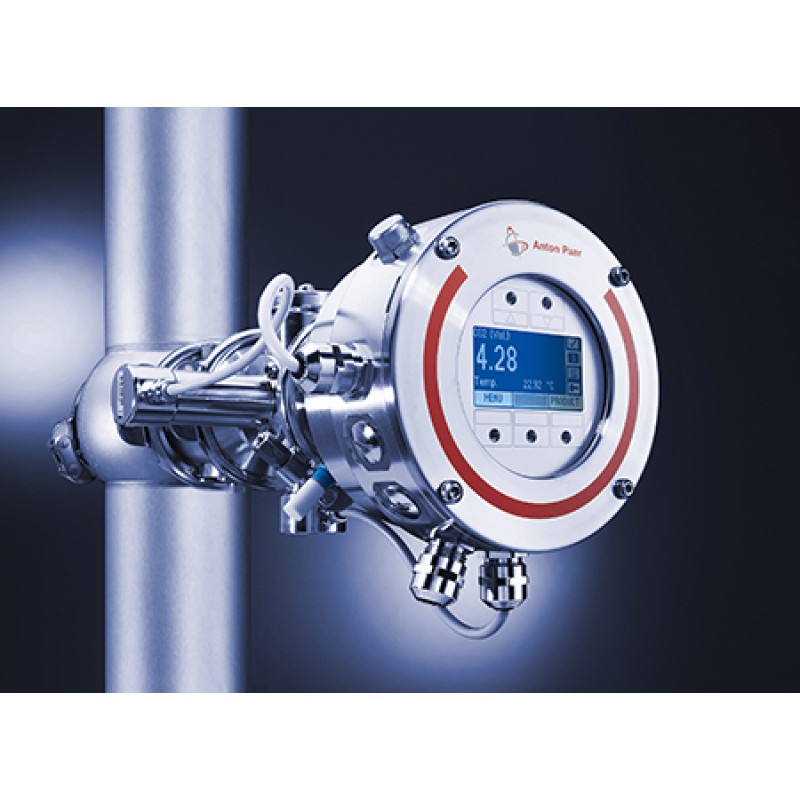

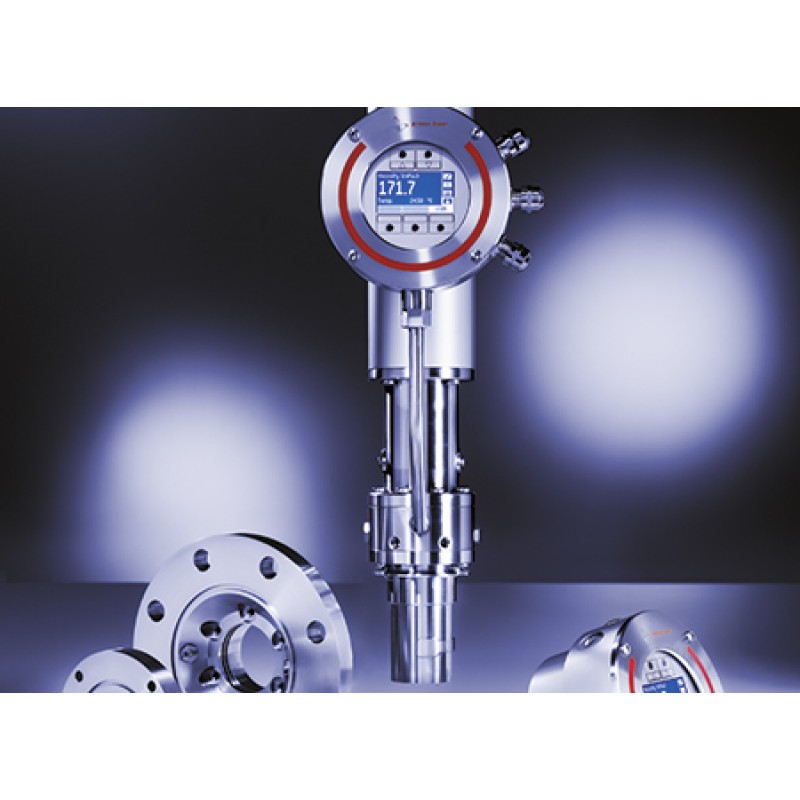

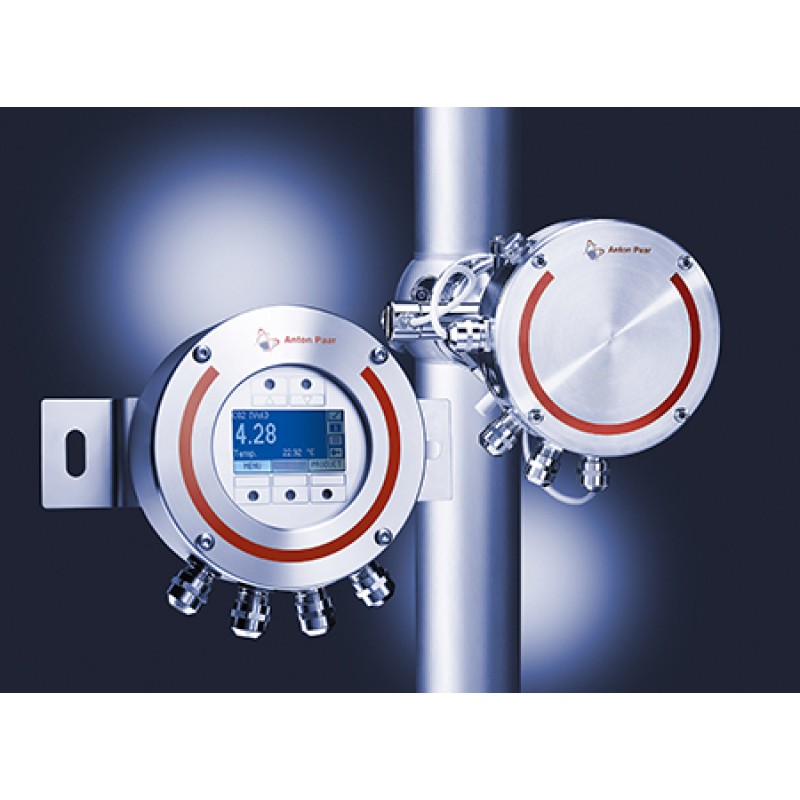

The Operating Terminal (OT) and the Remote Operating Terminal (ROT) are flexible evaluation units for the Anton Paar Smart Sensors used in viscosity measurement (L-Vis 510) for dynamic and kinematic viscosity and in CO2 measurement for beverages (Carbo 510) such as beer, wine or FABs. The OT is directly mounted on the Smart Sensor, the ROT and the Smart Sensor are separated units with a distance of up to 250 m. The OT and ROT provide several interfaces for external communication.
Key features
Flexible Connection to your Plant
- Perfect integration via various fieldbus and analog, digital interfaces
- Optical buttons for easy handling in harsh environment
Limit Monitoring
- Alarms help to prevent out-of-spec production
- Up to 30 products can be selected via fieldbus
Installation of Remote Operating Terminal
- Perfect visibility for the operator
- No extra stainless steel housing necessary
- Small sized ROT housing for optimal installation at narrow places
- Up to 250 m distance between sensor and ROT possible
Technical specifications :
| Sensor Input | Carbo 510, L-Vis 510, L-Vis 520 Ex, L-Rix 510 |
|---|---|
| Digital Input | For filler stop, detection of empty line |
| External Product Selection | Via fieldbuses |
| Digital Output | For limit monitoring or error output |
| Power supply | DC 24 V SELV min 0.2 A |
| Analog Output | 2 x 4 to 20 mA active |
| Fieldbuses | PROFINET IO |
| Display | 35 mm x 60 mm display incl. optical pushbuttons |
