Oxidation Stability Tester:
RapidOxy-100-Fuel
Patented RSSOT – Rapid Small Scale Oxidation Test
RapidOxy 100 Fuel – the only RSSOT on the market – investigates the fuel oxidation and performs stability tests on spark ignition fuels, diesel fuels ranging from pure diesel (B0) and diesel/FAME (fatty acid methyl esters) blends (B–B99) to pure biodiesel (B100), and also heating oils. This oxidation stability tester fulfills standard methods ASTM D7525, ASTM D7545, and EN 16091 for fuel analysis. Only 5 mL of sample is required, making it ideal for testing costly antioxidants.
Key Features
Shortest time to results
- Results with excellent precision in a fraction of the time compared to other oxidation stability methods
- Excellent reproducibility and repeatability
- Unique and fully automatic measuring principle: RSSOT = Rapid Small Scale Oxidation Test
- Measuring range up to 180 °C
- No sample preparation necessary
All-in-one system for fuels
- In full compliance with ASTM D7525, ASTM D7545, EN 16091, and
IP 595
- Spark ignition fuels
- Diesel fuels: Diesel (B0), diesel/FAME blends (B1 to B99) and pure biodiesel/FAME (B100)
- Heating oils
- Maximized user safety whatever your sample
Effortless operation
- Preset programs for standard methods
- Large 5.7‘‘ capacitive touchscreen in a modern design
- Pressure curve monitoring on the display during measurement
- Live display of temperature, time, and pressure
- Fast and effortless cleaning of the test chamber with soft paper tissue and ethanol
Space-saving benchtop instrument
- There is space for RapidOxy 100 Fuel in every lab.
- Very small footprint (200 mm x 400 mm) and a height of 250 mm
- Easy to handle (and to move within the lab)
- Low weight of less than 9 kg
- Stand-alone instrument (no external PC required)
Low-waste, eco-friendly device
- No chemicals other than ethanol needed for the cleaning process; no reagent waste
- No chemicals needed for sample preparation
- Increased energy efficiency; reaction times are up to 20 times shorter, which improves the overall energy efficiency of chemical processes
- Small fuel sample amount of only 5 mL
Technical specifications :
Application range | Up to 180 °C |
---|---|
Re-cooling | Automatic, fan and Peltier |
Sample volume | Typically 5 mL |

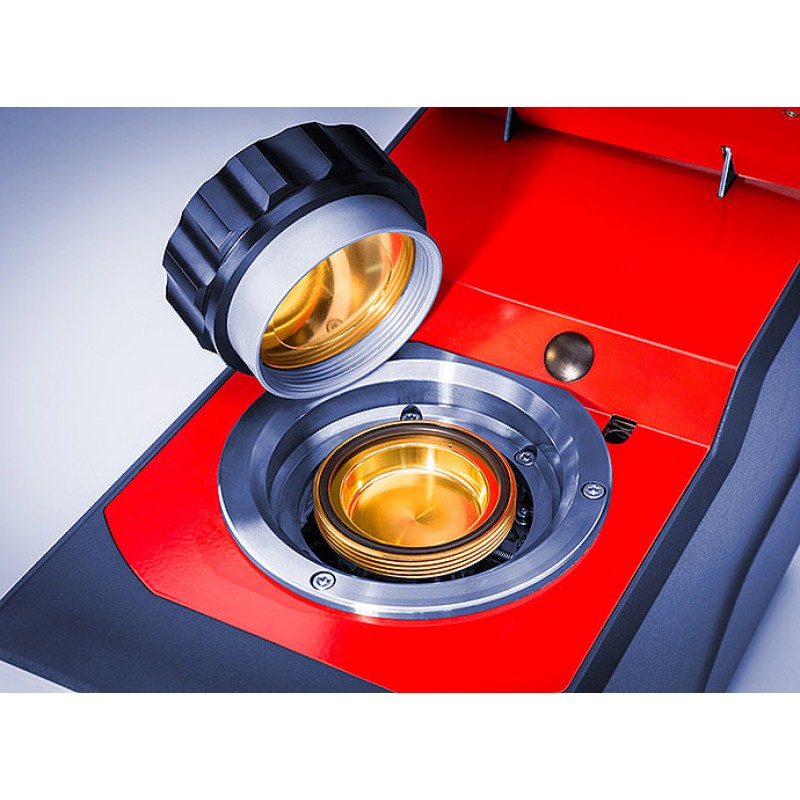

Test cell | Gold-plated aluminum |
Pressure range | Up to 1800 kPa |
Safety | Screw cap cover, safety and insulation hood with automatic lock, overtemperature and overpressure shut-off |
Display | Pressure, temperature, pressure/time curve, time |
Oxygen supply | 700 kPa (maximum input) |
Power supply | AC 220 V - 240 V, 50/60 Hz AC 100 V - 120 V, 50/60 Hz |
Dimensions | 20 cm x 40 cm |
Weight | <9 kg |
