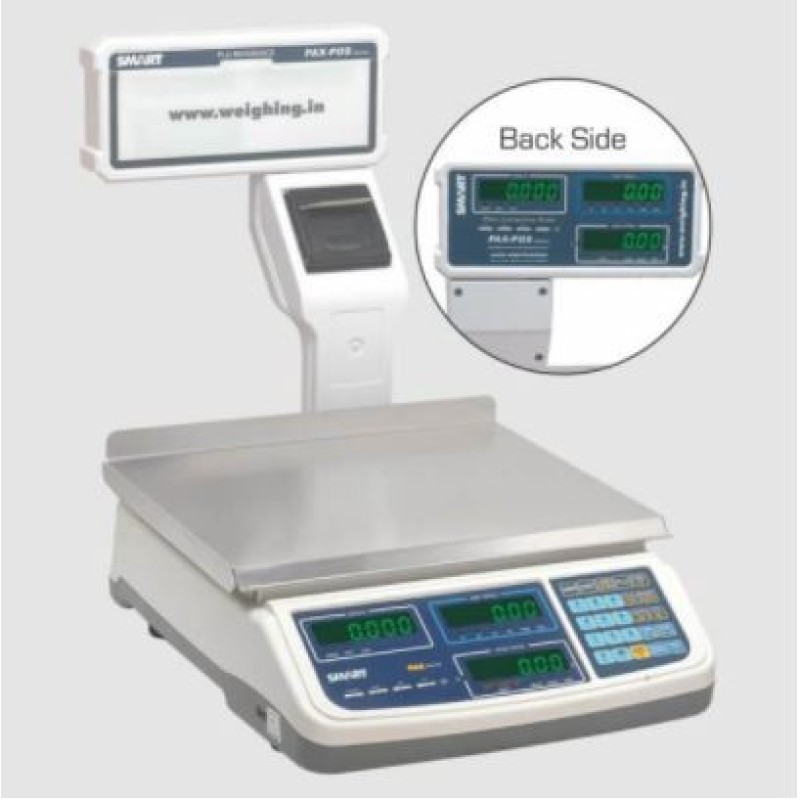

PAX-POS Series
The PAX-POS SCALE is a price computing receipt / ticket printing retail scale having a high impact ABS housing with durable keypad contribute to the PAX-POS’s robust build and its LCD displays with bright Red LED make it practical for most environments. The scale features individual customer and operator displays making it ideal for market traders, Super market or shops. It consists of a high-speed Built in thermal printer for receipt printing. Easy paper handling is achieved with a simple loading mechanism. Store name and message can be printed on the receipt. This scale uses USB feature for data import & export from scale to PC. Bluetooth connectivity also available. It features Tare and Zero functions, 299 PLUs for faster transactions. The PAX-POS is suitable for weighing items up to 30kg. This scale is easy to use with full range Tare, Preset Tare and auto-zero tracking available. It can be powered from the rechargeable battery, or by the mains.
Description
Features :
- Up to 1/15,000 display resolution
- 299-2000 PLU’s, 4 Vendors, 4 VAT, 20 Groups
- Support for weighed and non weighed, price/unit, price/pc
- Direct Label receipt printing option with Shop details, product, unit price, qty, total amount, tendered amount, change, date time etc.
- 3 displays : Weight, Unit Price & Total Price
- Complete PLU management, Support void Transaction
- Training Mode for user training
- Read / Dump Prices from USB / Excel file (Optional)
- Remote Price Update with GPRS option
- Print ticket or label (on external printer) / Barcode Option
- Stock Control Module (Option)
- Reports : PLU Listing, Bill Clerk / PLU wise sales, Duplicate Bill Hourly, Weekly, Monthly, & Yearly Sales, VAT Report
Specification :
PAX-POS SERIES | |||||
---|---|---|---|---|---|
Order Code | Capacity (kg) | Division (g) | Display | Platter(mm) | Accessories |
PAX-POS-15K2 | 15kg | 2gm | 0.56" Large LED Display Green | 350 x 260mm | SS Body Printer 500 Memory 1000 Memory 2000 Memory USB Disk Interface USB PC Interface GSM - GPRS |
PAX-POS-30K5 | 30kg | 5gm | |||
PAX-POS-30K5D | 30kg / 15kg | 5gm / 2gm |
Capacity / Increment
- 15kg x 5g / 15kg x 2g
- 30kg x 10g / 30kg x 5g
- 15/30kg x 5/10g dual range
- 15/30kg x 2/5g dual range
Memory
- Upto 999 PLU Memory (299 Std)
- 4 VAT Types
- 4 Discounts
- 20 Groups
- 4 Vendors at a time
Display
- LED Bright Green Display
- 6-digit weight
- 6-digit unit price
- 6-digit total price
Power
- 240 VAC, 50/60 Hz
- 12 VDC/3.3Ah rechargeable bat tery
- (Lithium Ion battery option available)
Working Environment
- Temperature: -10°C to 50°C
- Humidity: 85% RH, non-condensing
Dimensions/Weight
- Platter: 345 mm x 290 mm
- Net Weight: 6.6 kg (without battery)
Functions
- PLU Management
- Void transaction
- Discount on ticket
- Suspend
- Read / Dump Prices from USB / Excel File (optional)
- Save Price / Pack Mode
- Remote Price Update with GPRS option
- Print ticket or label(on external printer)
Reports
- Sale Summary
- VAT List Report
- PLU
- Voids / Returns
- PLU Edit List
- Hourly Sales
- Yearly Sales
- Weekly Sales
- PLU Sales
- Monthly Sales
Other
- Zero/Tare
- Void Key
- Printer Feed
- RF Connectivity
- Date/Time
Options
- 12 VDC/3.3Ah rechargeable battery
- Tower Kit
- RF Connectvity for Master Slave Config. Connect upto 32 scales
- USB Mass Storage / Thumb Drive
