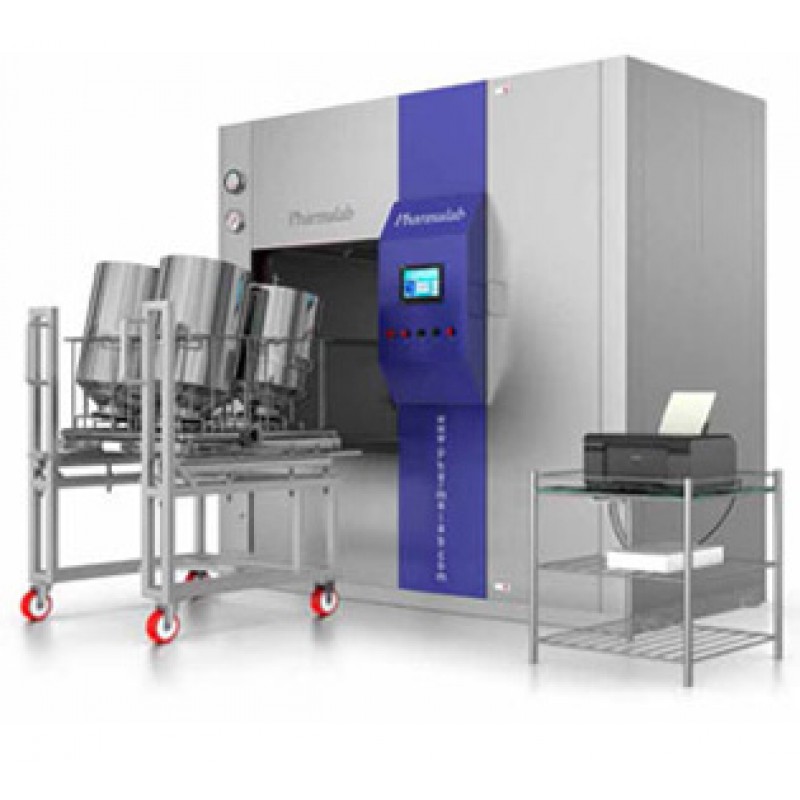

PHARMACEUTICAL WASHER

Product Details :

Pharmalab being a technology-driven company, have developed a Pharmaceutical Washer based on the latest advancement in washing technology. The aim is to help customer improve the efficiency of their washing operation with validated results. Pharmalab washer is designed to provide effective washing and drying for a wide range of components such as containers, vessels, glassware and other parts used in pharmaceutical processing. The equipment comes with multiple pre-configured cycles for various loads enabling the user to carry out the operation automatically with the touch of a button. The Washer is designed to achieve maximum cleaning efficacy complying to cGMP guidelines. The unit is built considering operator and equipment safety aspects.

FEATURES :

• Constructed in SS316L (contact part) and non-contact parts SS304
• GMP design. Chamber surface, especially the corner is rounded-off to avoid any water hold-up.
• Complete automatic operation through PLC with pre-configured cycles
• Settable parameters for flexible operation
• Dot-matrix printer for online printing
• Door operation can be through geared motor drive or hinged door operation
• Chamber design for different shapes, size and types of load
• Unique cart design for effective and thorough cleaning of load internal surfaces
• Efficient external washing with high water jet impact force through two rotating arms and stationary nozzles located strategically
• Unique self-docking arrangement for cart connecting the water circuit
• Online measurement of conductivity of WFI inlet and outlet
• Special designed drain line for quick and complete draining of liquid without hold-up
• Powerful circulation pump
• Easily accessible service area for detergent dosing refilling and other maintenance work
• Dosing pump with precise quantities of detergent / chemical dosing
• Chamber is insulated with rock wool
• Electrical air heating arrangement for drying
• Heated air is passed to H13/H14 HEPA filter before charging into the chamber
• Safety interlocks provided for operator and machine safety
