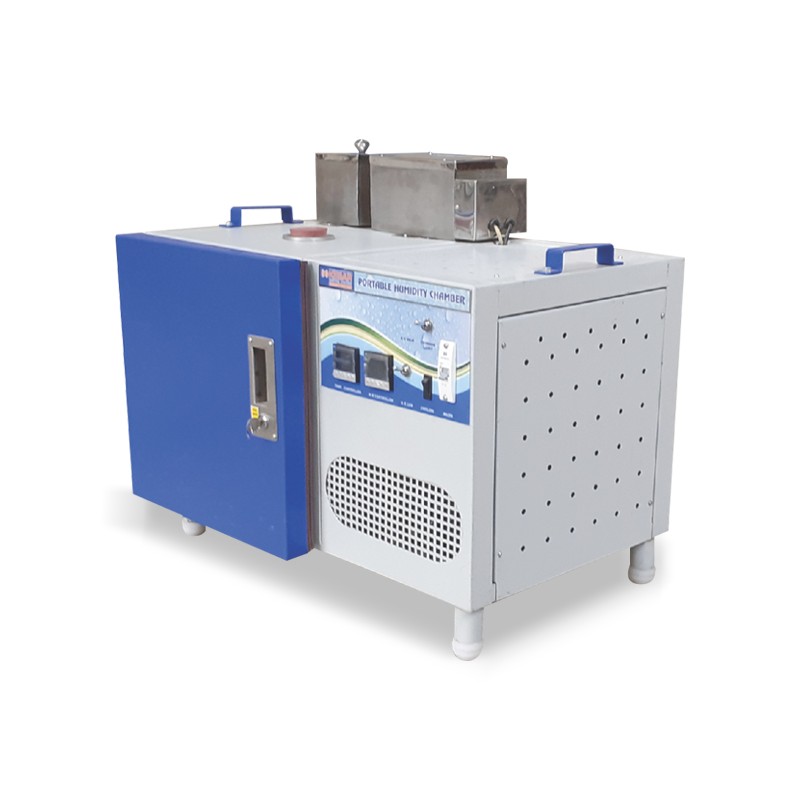

PORTABLE CALIBRATION HUMIDITY CHAMBER
TECHNICAL SPECIFICATION :
| Parameter | Temperature | Humidity |
|---|---|---|
| Range | 50C To 500C | 15% RH To 90% RH |
| Accuracy | +0.20C | +0.5% |
| Uniformity | +10C | +1% |
| Low Temp & Humidity Set Points | 250C Temperature - 15% RH 200C Temperature - 40% RH 250C Temperature - 20% RH 300C Temperature - 35% RH 200C Temperature - 25% RH 400C Temperature - 25% RH | |
| Construction (Both Construction Given) | 1. GMP Model : Interior & Exterior body made of Stainless Steel 304. 2. Standard Model : Interior body made of Stainless Steel 304 & Exterior body made of MS (CRCA) Powder Coating. Inner glass door will be provided. | |
| Insulation | Double walled PUF insulation 50 mm modular panel. | |
| Control System | Digital Indication for temperature / Humidity PID Controller. | |
| PID | Digital indication for temperatures and Humidity. | |
| Temperature Sensor | Temperature PT 100 Sensor will be provided. | |
| Humidity Sensor | Humidity Sensor will be provided. | |
| Cooling System | Compressor make "EMERSON" fitted with ISO-9001 certified ozone friendly hermetically sealed compressor charged with CFC / HCFC free refrigerant, complete with air cooled condenser, fan motor, drier, capillary with complete compressor accessories. | |
| Humidity System | By steam injection method. | |
| Heating System | Long lasting (S.S) tubular fin type heating elements stainless steel. | |
| Power Supply | Mains supply 230V AC, 50Hz Single phase. | |
| Air Circulation | Forced air circulation for uniform temperature & Humidity. | |
| Trays | Perforated stainless steel (SS 304). | |
| Boiler Tank | Complete set made of SS including accessories like float switch, float valve and Humidifier Heaters. | |
| Weight | Approx. 50 KG | |
SIZE & MODEL :
| Model | Capacity | INNER CHAMBER SIZE W x D x HMM | EXTERNAL CHAMBER SIZE W x D x HMM | TRAY SIZE (MM) | NO. OF TRAY | |
|---|---|---|---|---|---|---|
| KCS/ PCHC / 22 L | - | 22 | 300 x 250 x 300 | 760 x 460 x 490 | 290 x 240 | 1 |
