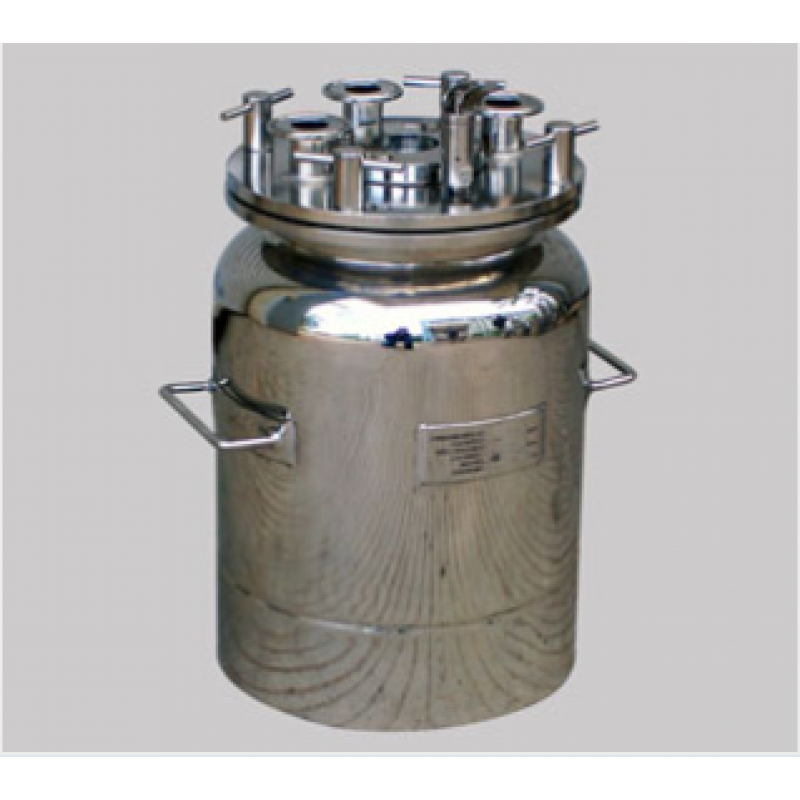

PRESSURE VESSELS

Product Details :

FEATURES :

• Dead leg & Crevice free Mirror polished contact surface as per cGMP criteria
• 100% Aseptic and Hygeinic Design as per USFDA 3A, EHEDG, ASME (BPE) Norms
• 100% cleanable & sterilizable
• Electropolished inside surface to
• Comfortable handling
• Specially designed Pressure Vessel suitable for In-situ sterilization
• Complete set of filtration equipment with Pressure Vessel + Membrane Filter Holder + Sterile Filling Vessels can be supplied

SPECIFICATIONS :

• We provide complete range of Aseptic and sterile SS containers for Pressure Filling Vessels for handling Injectable Liquids under highest grade classified area
• Dispensing Nozzle with Dip Tube
• Pressure Nozzle with Clamp
• Handle for Lifting/Shifting
• SS Trolley with PU Castors
• Sight Glass (Optional)
• Safety Valve
• Vertical, Cylindrical with Conical / Dish top and shallow dish bottom with skirt
• Top opening with T/C clamped with skirt
• Contact parts: SS 316L, Mirror polished to 0.3 Micron RA
• Non-Contact parts: SS 304 Matte finished to 0.8 Micron
• Gasket: Food Grade Silicone
• Dynamic Working of 3.5 to 4 Barg Pressure and partial vacuum
• 5 L to 250 L

APPLICATIONS :

• Injectable product storage and transfer
