Handheld Particle Counter
Product Specification:
Brand | Particles Plus |
Usage/Application | Laboratory , Hospital, Cleanroom, Industrial |
Model Name/Number | 8306 |
Power | 110 to 240VAC 50/60Hz universal in-line power supply |
Size Range | 0.3 Mum |
Size Channels | Factory calibrated at 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 Mum variable binning |
Flow Rate | 0.1CFM (2.83LPM) |
Concentration Limit | 30,000,000 Particles/ft3 @ 10% coincidence loss |
Battery Run Time | >10h continuous operation |
Light Source | Long life laser diode |
Counting Efficiency | 50% @ 0.3Mum; 100% for particles >0.45Mum per JIS |
Zero Count | <1 count / 60min (<1 particles / 6 ft3) |
Count Alarms | 1 to 9,999,999 counts |
Calibration | NIST traceable |
Display | 4.3" (10.9cm) WQVGA (480x272) color touch screen |
Printer | (Optional) External thermal printer |
Vacuum Source | Internal pump with automatic flow control |
Filtered Exhaust | Internal HEPA filter |
Number of Channels | 6 |
Custom Size Channels | 6 Calibration for custom size channels available |
Audible Alarm | Adjustable built-in alarm |
Battery | Removable Li-ion |
Battery Recharge Time | 4h within instrument (<2h with external battery charger) |
Reports | ISO 14644-1, EU GMP Annex 1, FS 209E |
Recipes | 50 user-configurable recipes |
Communication Modes | Ethernet and USB. (Optional) Wireless 802.11b/g, RS485 or RS232. |
Environmental Sensor | Temp and RH probe 32 to 122 Degree Fahrenheit (0 to 50 Degree Celsius) +-1 Degree Fahrenheit (0.5 D |
Alarm | Alarms on counts for all particle sizes, low battery, sensor failure, environmental sensors and flow |
Standards | ISO 21501-4 and JIS B9921 |
Instrument Calibration | Recommended minimum once per year |
External Surface | High impact injection molded plastic |
Dimensions | 5.12" x 4.25" x 12.26" (13.0 x 10.8 x 31.1cm) includes handle and does not include probes |
Weight | 2.2lb (1.0kg) |
Warranty | 2 year limited warranty. Ectended warranties available. |
Sample Time | 1s to 99h |
Sample Locations | Up to 1,000 locations 20 characters long |
Operating Conditions | 41 to 104 Degree Fahrenheit (5 to 40 Degree Celsius) 20-95% Non Condensing |
Storage Conditions | 32 to 122 Degree Fahrenheit (0 to 50 Degree Celsius) 98% Non Condensing |
Product Description- The Particles Plus 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
- Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® data-download software. Particles Plus® counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.
- All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.
Features:-
- The Particles Plus 8306 Handheld Particle Counter measures 0.3 to 25.0 μm with a flow rate of 0.1 CFM (2.83 LPM).
- Easy to configure, this instrument displays up to 6 user-selectable size channels as well as temperature and relative humidity. View data and generate ISO 14644-1, EU GMP Annex 1 or FS 209E reports on screen or via printer, USB key, real time through its versatile output options or export to Particles Plus® data-download software. Particles Plus® counters can be controlled and monitored remotely via web browser. The 8306 has a mass concentration mode that approximates density in μg/m³.
- All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 8306 ensures compliance with an on-board pulse height analyzer.
Product Details:-
- Measures 0.3 μm to 25.0 μm
- 0.1 CFM (2.83 LPM) flow rate
- Long life laser diode technology
- Measures up to 6 channels of simultaneous data
- Approximates mass concentration in μg/m³ with density and refractive index corrections
- Integrated handle for one-handed operation
- Large easy-to-use icon driven color touch screen display
- Temperature and relative humidity probe included
- Stores up to 45,000 sample records, 1,000 sample locations and 50 recipes
- Annotation function allows user to save 32 character notations to a sample record
- Remote diagnostics allows for remote service investigation through the Internet
- Easy configuration and transferable from instrument to instrument

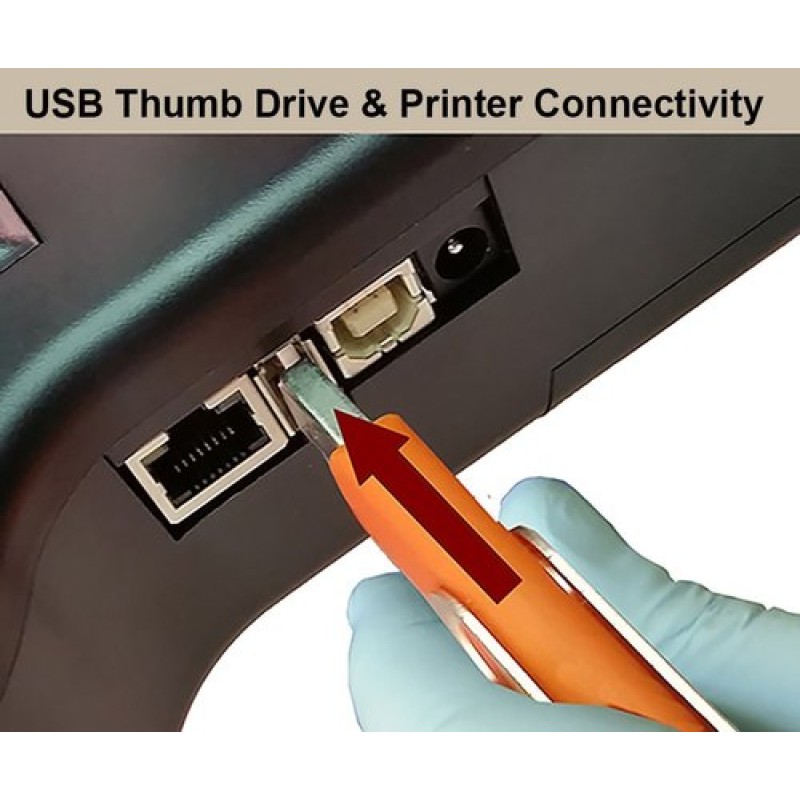

- Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS 485 or RS232
- Displays user-definable reports for ISO 14644-1, EU GMP Annex 1 and FS 209E
- Internal audible alarm with comprehensive alarm management
- User-selectable channel sizes
- Complies with ISO 21501-4 and JIS B9921 standards
- Easy to clean and wipe down with minimal particle traps
- Seamless integration into a facility monitoring system
- Lightweight high-impact injection molded plastic enclosure
Other Features:-
Accessories | Operating manual and IMS software on USB flash drive, isokinetic probe, temperature relative humidity sensor, purge filter, battery, data download software, USB cable, power supply and cable |
Optional Accessories | Printed manual, carrying case, spare battery, external battery charger, external printer and isokinetic probes, barbed fittings, IMS-RT monitoring system |
Buffer Memory | 45,000 sample records (rotating buffer) including particle count data, environmental data, locations, annotations, and times. Scrollable on screen or printout. |
