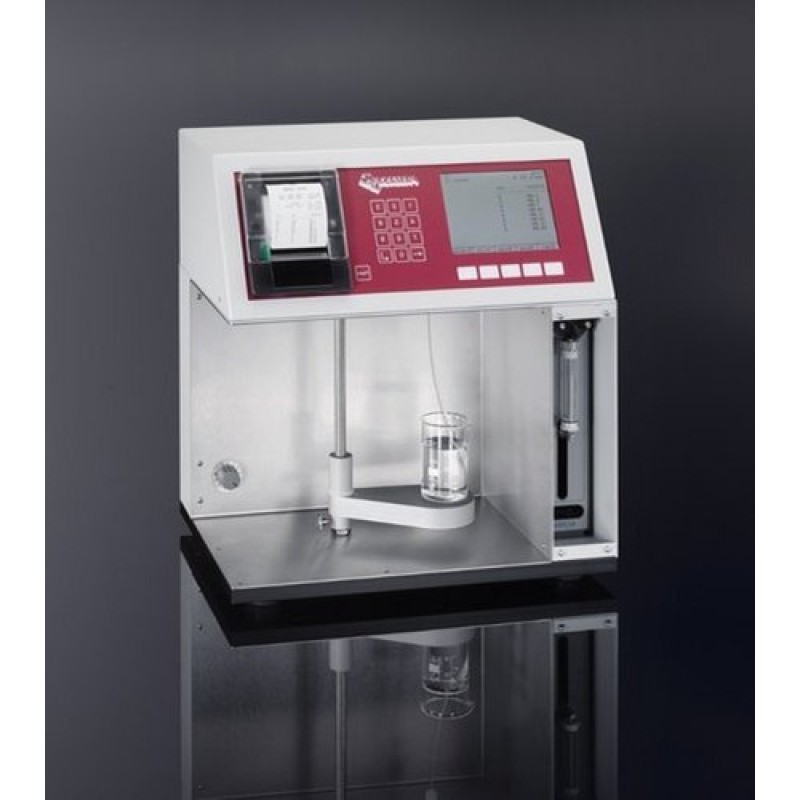

Pamas SBSS Liquid Particle Counter
Product Details :
Brand | Pamas |
Usage/Application | Laboratory |
Model Name/Number | SBSS |
Size | 400 mm x 600 mm x 280 mm (W x H x D) |
Voltage V | 100-240 V |
Weight | 30 kg |
Size Channels | 16 or 32 freely adjustable |
Display | LC display with keypad |
Data Transfer | ASCII code, RS-232-C interface |
Frequency | 50-60 Hz |
Laboratory particle counter for liquids with a viscosity of up to 1600 CST with an external pressure supply and precise flow rate control
The Pamas SBSS is a particle counting system for batch sampling. The Pamas SBSS is the standard instrument used as a reference in many testing labs. The instrument may be programmed to measure a sample without the need of an operator, like pre-filling the internal dead volume, degassing the sample with vacuum, pressurizing the sample for a number of measurement runs, and relieving pressure at the end. High accuracy and repeatability, fast purging, and backflush possibility are the key benefits of the system.
Applications
- Hydraulic oils
- Turbine and insulation oils
- Gear and engine oils
- Water based hydraulic fluids
- Phosphate ester based hydraulic fluids
- Fuels
- Highly volatile fluids
- Parenterals, protein solutions according to common pharmacopoeias
Product features
- Customizable measurement settings
- 16 freely adjustable size channels (32 channels upon request)
- Pressure sampling up to 10 bar
- Optional vacuum cycle for sample degassing
- Integrated magnetic stirrer
- Use of any sample vessel with a max. diameter of 7 cm and a height of 18 cm
- Measuring volume of 1 to 1,000 ml
- Automatic sample flow and volume control via a stepper motor-driven syringe module
- Interchangeable syringes with 1 ml, 10 ml, and 25 ml volume
Standards and methods
ISO 11171 | ISO 4402 | ISO 21501-3 | ISO 21501-2 | USP <1788> | ISO 4406 |
SAE AS4059 | NAS 1638 | GOST 17216 | CHARN* | GJB 420B | GJB 420A |
NAVAIR 01-1A-17* | SAE 749D* | ISO/DIS 11218.2* | ASTM D7647 |
*in connection with PAMAS PMA software
USP <787>** | USP <788>** | USP <789>** | Ph. Eur. 2.9.19** | JP XVI** | KP X** |
IP 2.5.8** | BP XIII** | IEC 60970 | ASTM D6786 | ISO 11500 |
**in connection with PAMAS USP software
Volumetric sensors
PAMAS HCB-LD-50/50
Available size ranges:
- 1–200 µm (ISO 21501-3)
- 1–400 µm (ISO 21501-3) option on request
- 1–100 µm (ISO 4402)
- 4–70 µm(c) (ISO 11171)
- Max. particle concentration: 24,000 P/ml at 25 ml/min
PAMAS HCB-LD-25/25
Available size ranges:
- 1–200 µm (ISO 21501-3)
- 1–100 µm (ISO 4402)
- 4–70 µm(c) (ISO 11171)
- Max. particle concentration: 120,000 P/ml at 25 ml/min
PAMAS SLS-25/25
Available size ranges:
- 0,5–20 µm (ISO 21501-2)
- 1–20 µm (ISO 4402)
- 1.5–25 µm(c) (ISO 11171)
- Max. particle concentration: 13,000 P/ml at 10 ml/min
Software
- PAMAS USP for pharmaceutical applications (21 CFR Part 11 compliant)
- PAMAS PMA for the contamination control of clean liquids
