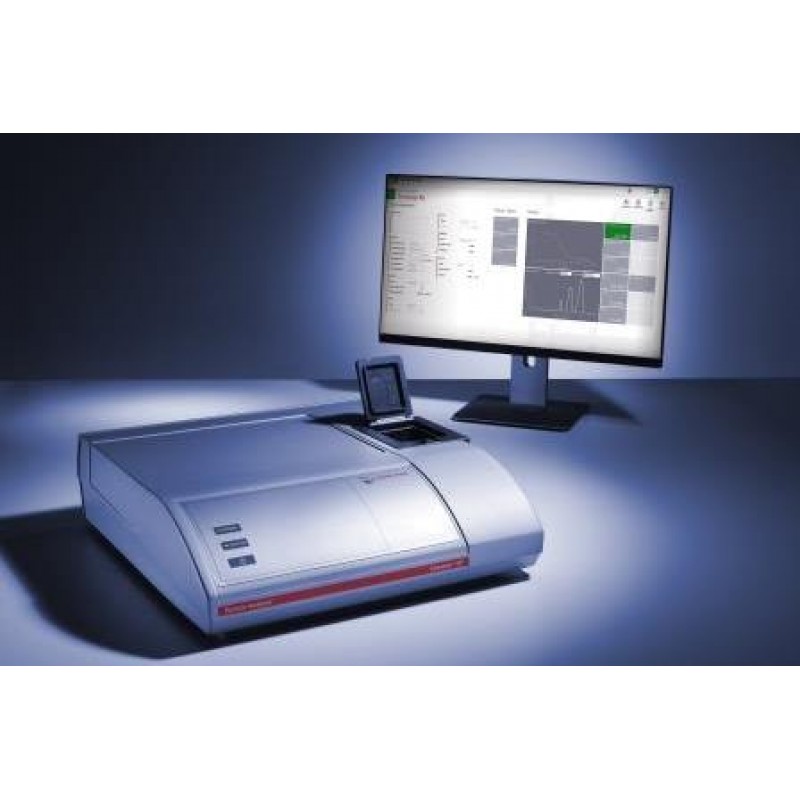

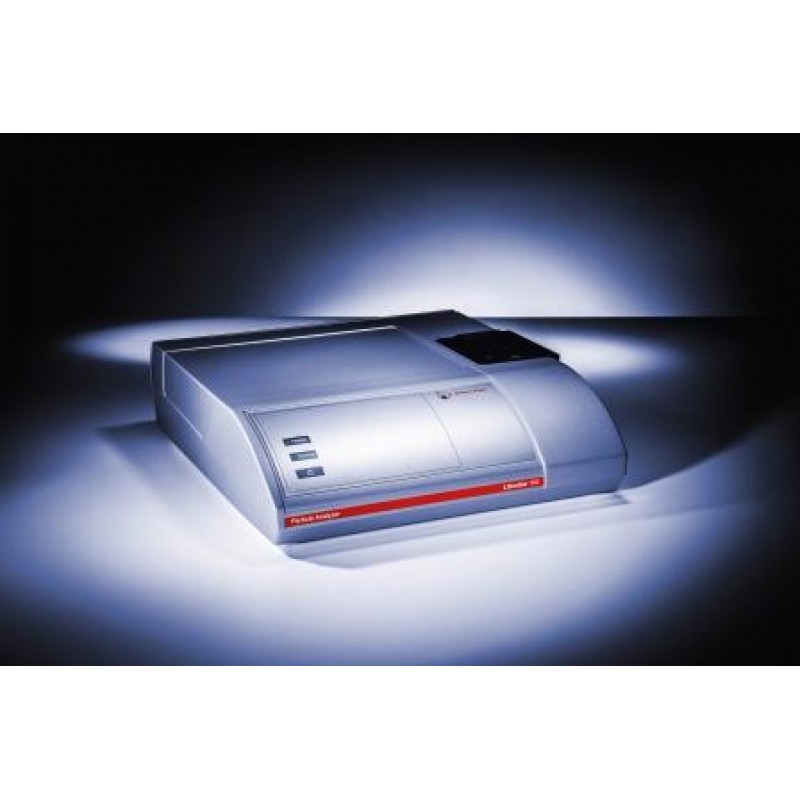

Particle Size Analyzer:
Litesizer-100
- Particle size measurements from the nano- to the micrometer range
- DLS back scatter detection ensures broad concentration range
- Automatic measurement modes
- Continuous transmittance measurement
The Litesizer 100 is an instrument for characterizing nano- and microparticles in dispersions and solutions. It determines particle size by measuring dynamic light scattering (DLS).
A highlight of the Litesizer 100 is its ingeniously simple software. We have created a one-page workflow, where input parameters, results and analysis are all on a single page: You can set up your experiments in a few seconds, and produce the analyses and reports you need at the touch of a button.
Key Features :
Particle-size measurements: Unprecedented resolution
Several different particle sizes in a single suspension can be precisely resolved, thanks to highly developed algorithms in the firmware.
Continuous transmittance measured automatically
Transmittance gives you instant feedback about your sample, and allows automatic optimization of measurement parameters (angle, focus position, and measurement duration).
Ingeniously simple software, Kalliope™
Kalliope™ provides an intuitive one-page workflow, where input parameters, measurements and analyses are all at hand. In addition, Kalliope™ is fully compliant with the US FDA's 21 CFR part 11 regulations.
Technical specifications :
General specifications | |
Temp. control range | 0 °C–90 °C |
Light source | Semiconductor laser / 40 mW, 658 nm |
Laser warm-up time | 6 min |
Ambient temp. | 10 °C–35 °C |
Dimensions (W, D, H) | 460 mm, 485 mm, 135 mm |
Weight | approx. 16 kg (35 lbs) |
Particle size specifications | |
Measuring range | 0.3 nm–10 µm* (particle diameter) |
Min. sample volume | 12 µL |
Sensitivity | |
Min. concentration | 0.1 mg/mL (lysozyme) |
Maximum sample concentration | 50 %w/v |
Accuracy | Better than +/-2 % on certified reference material |
Repeatability | Better than +/-2 % on certified reference material |
Measurement angle | 175° |
Transmittance specifications | |
Accuracy | Better than +/- 1 % |
Measuring time | 10 s |
Minimum sample volume | 15 µL |
*under laboratory conditions
