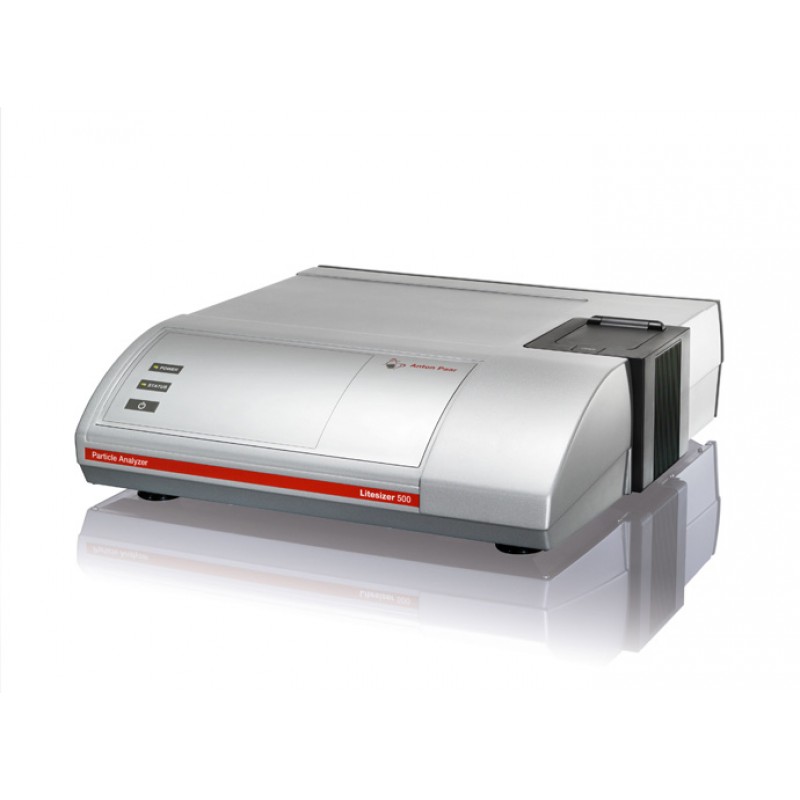

Particle Size Analyzer:
Litesizer-500
- Particle characterization from the nano- to the micrometer range
- Particle size measurements via dynamic light scattering at three different measurement angles
- Determination of zeta potential using patented cmPALS
- Molecular mass and refractive index measurements

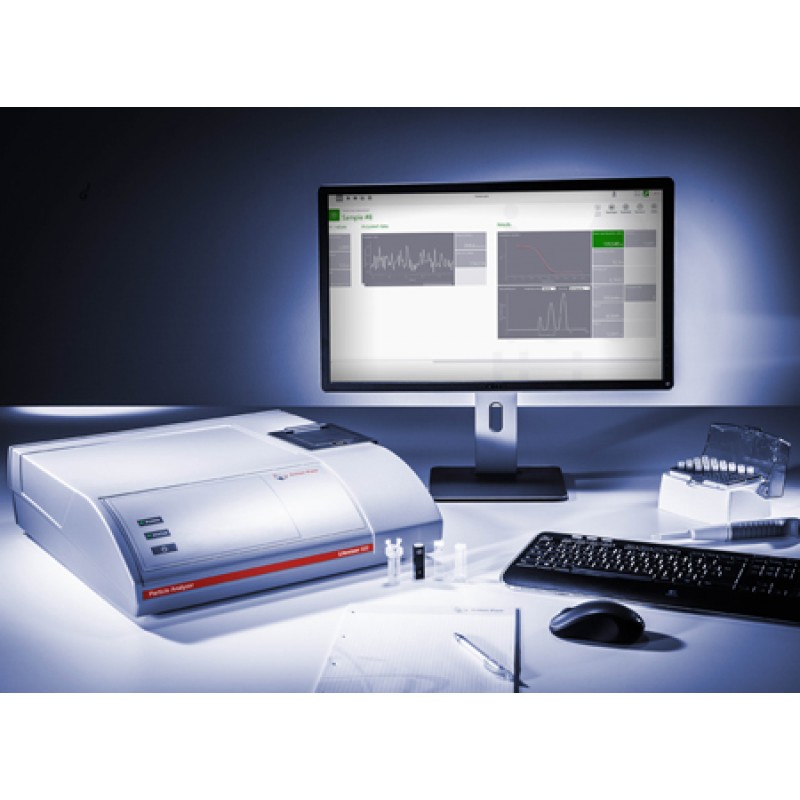

The Litesizer 500 is an instrument for characterizing nano- and microparticles in dispersions and solutions. It determines particle size, zeta potential, and molecular mass by measuring dynamic light scattering (DLS), electrophoretic light scattering (ELS), and static light scattering (SLS).
Moreover, the Litesizer 500 is the only DLS-based particle analyzer that is able to perform a straightforward measurement of the sample’s refractive index.
A highlight of the Litesizer 500 is its ingeniously simple software. We have created a one-page workflow, where input parameters, results and analysis are all on a single page: You can set up your experiments in a few seconds, and produce the analyses and reports you need at the touch of a button.
Key Features
Continuous transmittance measured automatically
Transmittance gives you instant feedback about your sample, and allows automatic optimization of measurement parameters (angle, focus position, and measurement duration).
Accurate determination of the refractive index
While for most particle analyzers these indices must be determined from external sources, the Litesizer 500 is able to measure the refractive index for the exact wavelength and temperature of your experiment. This ensures maximum accuracy of particle size and zeta potential results under all experimental conditions.
The Litesizer 500 determines the solvent refractive index within ±0.5 %, as defined by ISO 22412:2017 concerning the accuracy of the refractive index required for DLS.
Particle-size measurements: Unprecedented resolution
Several different particle sizes in a single suspension can be precisely resolved, thanks to highly developed algorithms in the firmware.
cmPALS – new patented technology for zeta potential
With cmPALS (European Patent 2 735 870), measurements can be performed at much lower applied electric fields, and within significantly shorter measuring times, thereby enabling reliable measurements of even highly sensitive samples.
Unique Ω-shaped capillary tube for zeta potential
Measurements are more stable and reproducible because of the unique Ω-shaped capillary in the cuvette.
Ingeniously simple software, Kalliope™
Kalliope™ provides an intuitive one-page workflow, where input parameters, measurements and analyses are all at hand. Kalliope™ is fully compliant with the FDA’s 21 CFR Part 11 regulations.
Technical specifications :
General specifications | |
Temp. control range | 0 °C–90 °C |
Light source | Semiconductor laser / 40 mW, 658 nm |
Laser warm-up time | 6 min |
Ambient operating temp. | 10 °C–35 °C |
Dimensions (W, D, H) | 460 mm, 485 mm, 135 mm |
Weight | approx. 18 kg (40 lb) |
Particle size specifications | |
Measuring range | 0.3 nm–10 μm* (particle diameter) |
Minimum sample volume | 12 µL |
Sensitivity | |
Min. concentration | 0.1 mg/mL (lysozyme) |
Max. concentration | 50 %m/v (sample-dependent) |
Accuracy | Better than +/-2 % on NIST traceable standards |
Repeatability | Better than +/-2 % on NIST traceable standards |
Measurement angles | 15°, 90°, 175° |
Zeta potential specifications | |
Measuring range | >= +/- 1000 mV |
Mobility range | 10 -11 m²/V.s to 2 x 10 -7 m²/V.s |
Size range | 3.8 nm–100 µm |
Min. sample volume | 50 µL (sample viscosity dependent) |
Sensitivity | 0.1 mg/mL (lysozyme) |
Maximum sample concentration | 70 %w/v |
Accuracy | +/- 10 % |
Repeatability | +/- 3 % |
Maximum sample conductivity | 200 mS/cm |
Molecular mass specifications | |
Measuring range (mass) | 980 Da–20 MDa |
Measuring range (particle size) | up to 40 nm (diameter) |
Lowest concentration limit | 0.1 mg/mL (lysozyme) |
Accuracy | +/-10 % |
Repeatability | +/-5 % |
Measurement angle | 90° |
Transmittance specifications | |
Accuracy | Better than +/-1 % |
Measuring time | 10 s |
Minimum sample volume | 15 µL |
Refractive index specifications | |
Measuring range | 1.28 to 1.50 |
Accuracy | +/-0.5 % |
Minimum sample volume | 1 mL |
*under laboratory conditions
