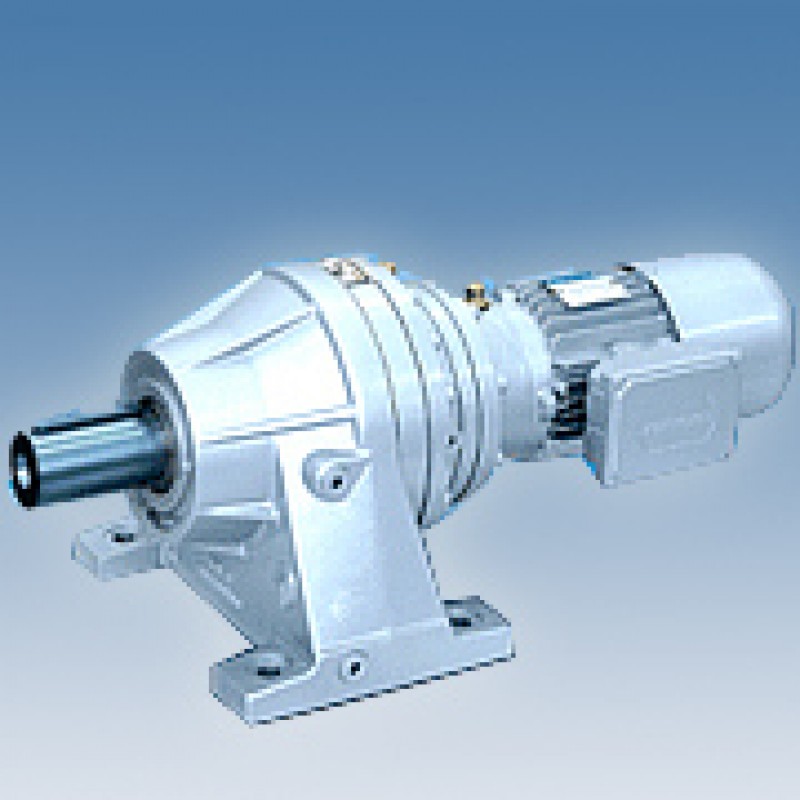

Planetary Drives

Product Details :

Our Bonfiglioli planetary drives are powerful and compact drives to serve in heavy duty applications. This product is versatile in terms of mounting, gear layout, interface and shafts.

Technical specifications of planetary drives are as mentioned below:

• Torque Range: 1000 - 450.000 Nm
• Transmissible Mechanical Power: to 450 kW
• Reduction Ratios Range: 1:3,4 to 5.000
• Gear Unit Version: In line; Right angle (with bevel gear pair Gleason)
• Output Configuration: Foot and flange mounted
• Output shaft: solid with key, splined, splined hollow, hollow shaft with shrink disc
• Gear Unit Input Configurations: IEC-normalized Motor Adapters; Solid Input Shaft

Applicable AC motors:

• Compact motors and brake motors M series
• IEC motors and brake motors BN series
• Single and dual speed motors

Main Brake Motor Features:

• DC and AC brake
• Fast Braking and/or brake releasing through
• SB, NBR, SBR optional electronic devices

Main Motor Options:

• Thermistors and thermostats sensor
• Servo ventilation
• Line driver and push-pull incremental encoder

300 Series of our products differ in their torque measurements:
