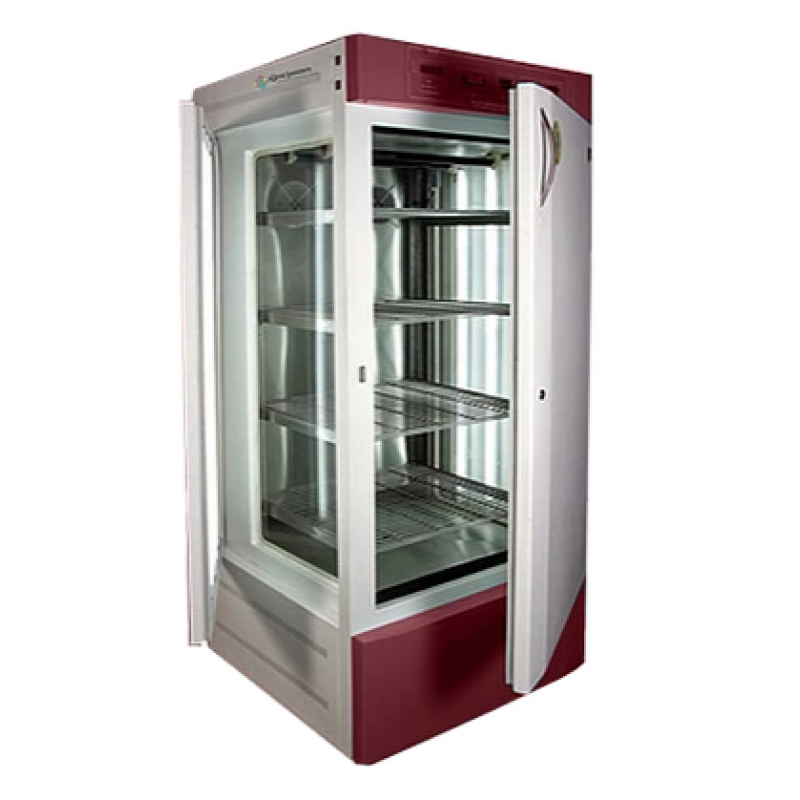

Plant Growth Chamber

Download Brochure

Product Details :

Plant Growth Chamber is a chamber having three side illumination, humidity & temperature. It has applications in plant science, soil science & agriculture research etc. The use of plant growth chamber is to create artificial environment using combination of temperature, humidity and light at different set points for biological samples, electronic components and other relevant applications.

Features and Benefits :

• Construction : We construct the inner chamber of machine with thick gauge of stainless steel 304 & exterior with powder coated GI sheet for corrosion resistance surface. High density PUF insulation of 70mm is filled between inner and external walls. Main chamber is fabricated with arc welding. We construct sizes as small as 100 litres to 1200 litres or customize as per user requirement. Caster wheels with brake are fitted for easy movement.
• Doors : We use double door mechanism with inner door for observation which is fixed directly to the inner chamber that give you access to view plants inside without any variation in internal atmosphere. The exterior door is insulated and fixed with easy to use latches.
• Temperature & Humidity : The temperature range is 5°C to 60°C and humidity range is 50% to 90%. These parameters are controlled through PID controller with excellent accuracy and uniformity through PT100 temperature and capacitive humidity sensors. High Quality heaters are used for temperature. For humidity, stainless steel tank with immersion heater is used with automatic water filling facility.
• Illumination : Illumination plays important role in effective plant growth condition; therefore, we use high quality growth lights at three sides of the chamber. These lights are controlled through cyclic timer for 24X7 a week. These lights can be easily changed or replaced at user level.
• Optional : We also equip our plant growth chambers with some advance features such as PLC based HMI controller. It features color touch screen having display and control of temperature and humidity with data monitoring and storage and also facility USB interface to transfer data into pen drive. 30mm port hole for external wires and validation are also available.

Advantages :

• Accuracy of temperature, humidity & light
• Made according to plant height
• Digital control panel
• Digital light timer
• Height adjustable shelves
• Durable construction

Technical Specifications :

Standard Sizes / Dimensions :
