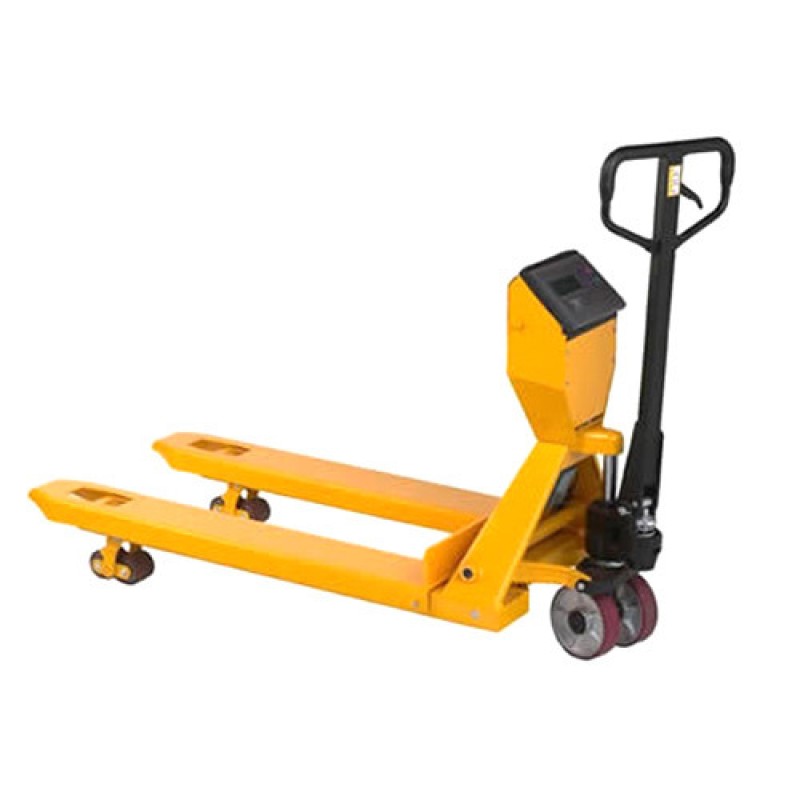

Pallet Truck
Product Details :
Brand | MANSI |
Model Name/Number | MMHE |
Usage/Application | Material Handling |
Power Source | Electric |
Lifting Capacity | UP TO 5 TON |
Loading Capacity | UP TO 5 TON |
Power | 230V |
Type Of Weighing Scale | ELECTRONIC |
Load Capacity | 1-3 ton, 3-5 ton |
Wheel Material | Rubber, Nylon, PU, PP |
Max Lifting Height | 200 mm |
Fork Length | 1500 mm, 1800 mm |
Specifications:
- Capacity: 1ton, 2ton, 3ton, 4ton, 5ton
- Fork length: 1150mm/as per customer requirement
- Fork width: 550mm /as per customer requirement
- Fork: 150mm
- Lower height: 85mm /as per customer requirement
- Raised height: 200mm /as per customer requirement
- Lift height: 115mm
- Lift: 10mm / Stroke
- Lower Speed: Continuously variable
- Wheel: 2nos 180x50mm steering nylon wheel with 6204zz double ball bearing & 4nos 80mmx70mm roller nylon wheel with 6204zz double ball bearing
- Color: golden yellow powder coated color
- Handle: 3lever position handle (lift/lock/release)
- Turning radius: 114 degree
- Structure weight: 85kgs to 100kgs
- 20' feet container: 180nos
Additional Information:
- Production Capacity: 100 PER YEAR
- Delivery Time: 1-5 DAYS
