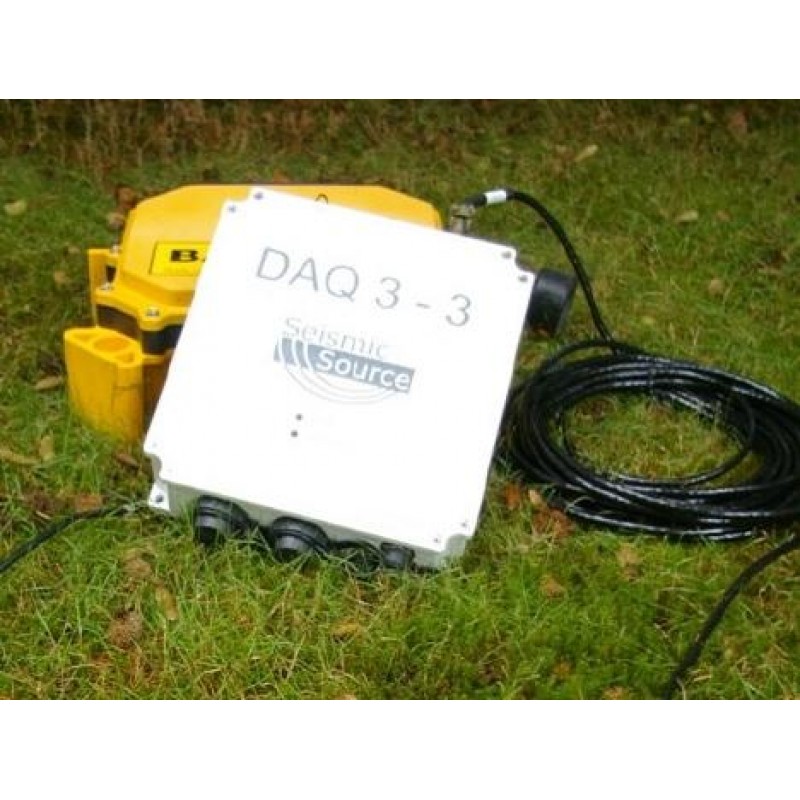

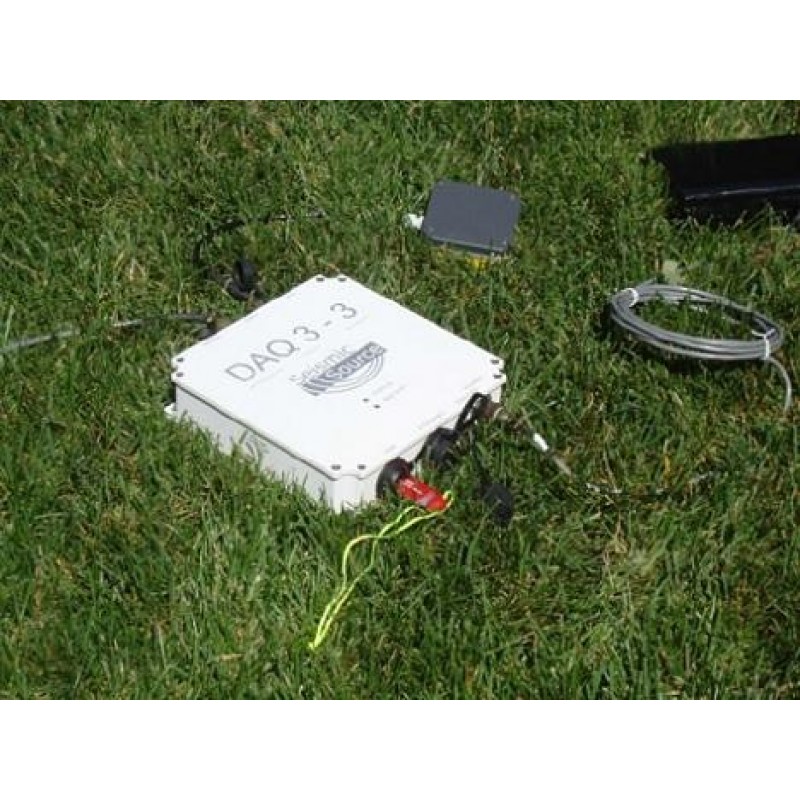

DAQ3-3 Portable High Resolution Versatile Seismic Recording system

The DAQ3-3 is the third generation of portable seismograph systems. The system can be configured as a stand-alone monitoring system, a refraction system or a distributed seismic reflection system.

The DAQ3-3 has been designed for temporary or long term installations and can be monitored continuously or periodically, locally or remotely. External clock discipline via GPS Module, VHF/UHF radios or Wire enables usage in any environment.

Field Benefits

Cutting-Edge Technology for Data Quality

• Best 32 bit A/D
• High Resolution Clock

• Low Noise & Low Distortion Means Better Data

Designed to Produce and Protect Data

• Data Always Stored in Box - No Lost Data
• Offload Data While Recording – No Lost Production

• Better Data Handling for Superior Production

Versatile Operation

• Continuous Recording
• rigger on Time, Data Event or Trigger Input

• Different Modes for Different Types of Projects

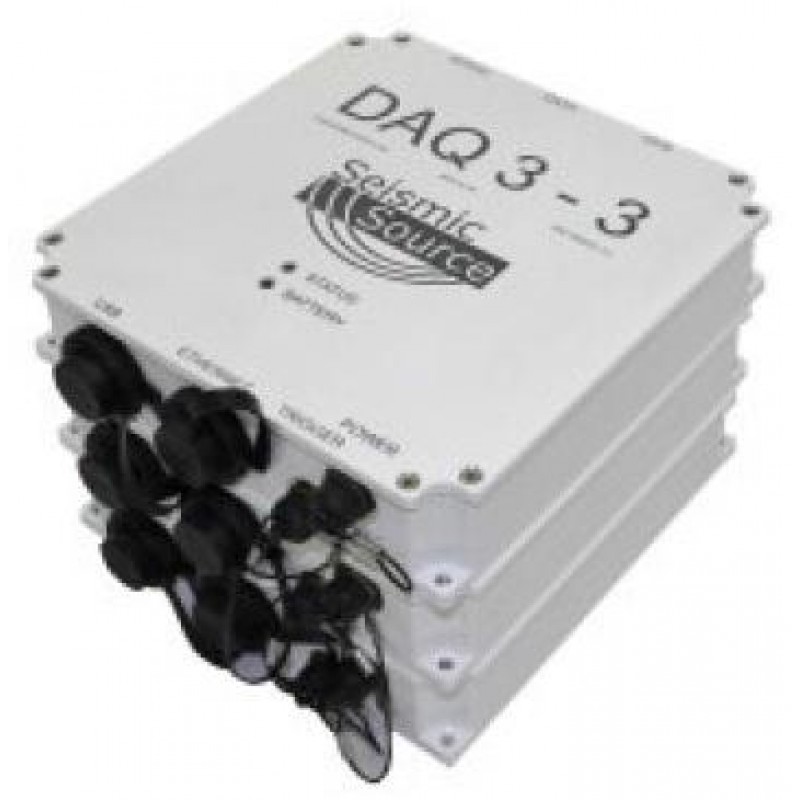

Modular and Stackable

• Combine Units for Additional Channels
• Uses Common GPS Module & Network Connection

• Use "MegaDAQ" Configuration for Maximum Channels in Minimal Space


Built-In Trigger Circuit

• Operate as Time Break Recorder
• Captures T0 Time and Aux Channel Data

• Great for Monitoring Autonomous Sources

Hardware Benefits

Sturdy Aluminum Construction

• Rugged, Lightweight, "O" Ring Sealed to IP 67
• Threaded Holes for Mounting

• For Permanent Mounting, or Long-Term Deployment

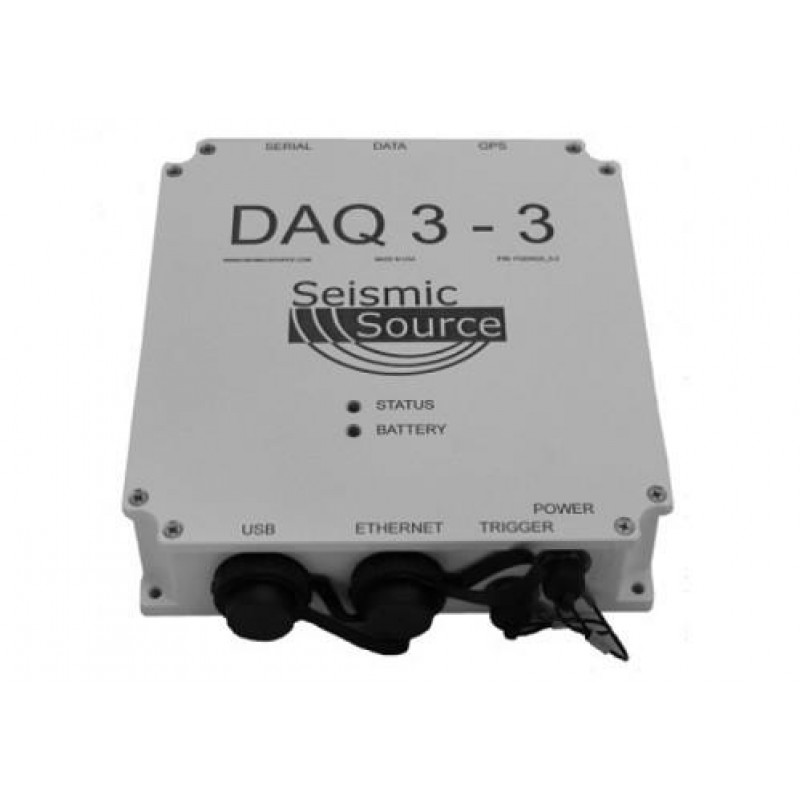

"Off the Shelf" Standard Connectors

• USB "A" Connector for Data Backup
• RJ-45 Ethernet Connector for Data Collection

• Makes Communication & Installation Easier

Common Data Signal Connector

• One Set of Three Differential Signals for Geophones
• One Set of Three Differential Signals for Seismometers

• 12V Power Output for Active Sensors

• Supports a Wide Variety of Sensor Types

All External Networks

• GPS Module
• WiFi Module / Cellular Modem

• Enables Mounting inside Containers and Vaults


DAQ3-3 Uses

Multiple Markets

• Engineering Seismic
• Oil & Gas Exploration

• MicroSeismic Frac Monitoring

Permanent Installations

• Mountable Aluminum Enclosure
• Remotely Locatable Networks

Earth Monitoring Stations

• Low Power for Long-Term Use
• Use Cellular Modem for Remote Data Collection

Downhole Recording

• MegaDAQ configuration for deeper wells
• se WiFi network to collect data from multiple wells


Source Tracking and Monitoring

• GPS provides Source Point Locations
• Use Hammer Switch or Vibrator Controller for Time Break Signal

• DAQ3-3 records Auxiliary Channel Signals

Data Download

Superior Design

• Download Current or Historical DataDoes Not Interrupt Data Acquisition

USB Data Offload

• Duplicates Data While Recording
• Promotes Faster Station Visits


Network Data Offload

• Cable, WiFi, Cellular, Satellite, etc.
• Uses Standard Off-the-shelf Components


DAQLink 3 Seismic Recording System Specifications
