3 Phase Panel Meter-Volt / Amp Meter

3 Phase Panel Meter-Volt / Amp Meter

Product Details :

MODEL

Dimension (HxWxD) mm Panel Cutout (mm)

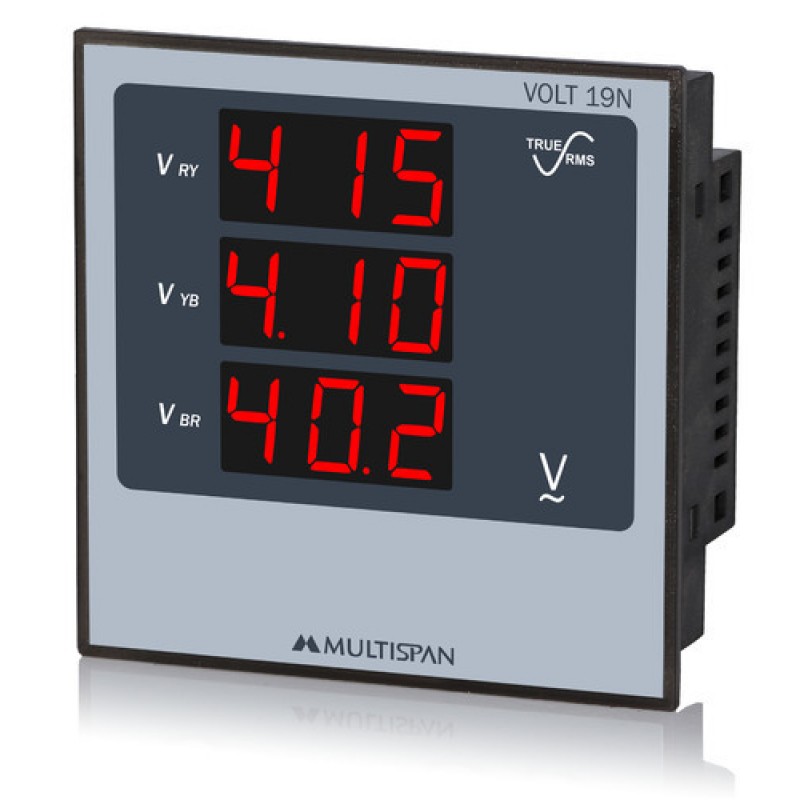

VOLT-19-N

96 X 96 X 50

92 X 92

AMP-19 N

96 X 96 X 50

92 X 92

Display Features

Three Display : 3 digit, 0.56" LED display, 7 segment Bright seven segment LED display for better readability.







KAmp Indication

INPUT

Input Signal Display Voltage (AC) Display Current (AC)

30 /3 Wire

50V - 520V AC (P-P)

30 /3 Wire

0 - 6000 A

SPECIFICATION

CT selection Primary CT selection Secondary Accuracy Power supply

Class 1.0

230 V AC ±10%, 50 Hz

5 ~ 6000A

5A

Class 1.0

230 V AC ±10%, 50 Hz

Enclosure Material Operating Ambient Temp Relative Humidity

Plastic

0°C - 55°C

Upto 95% RH Non Condensing
