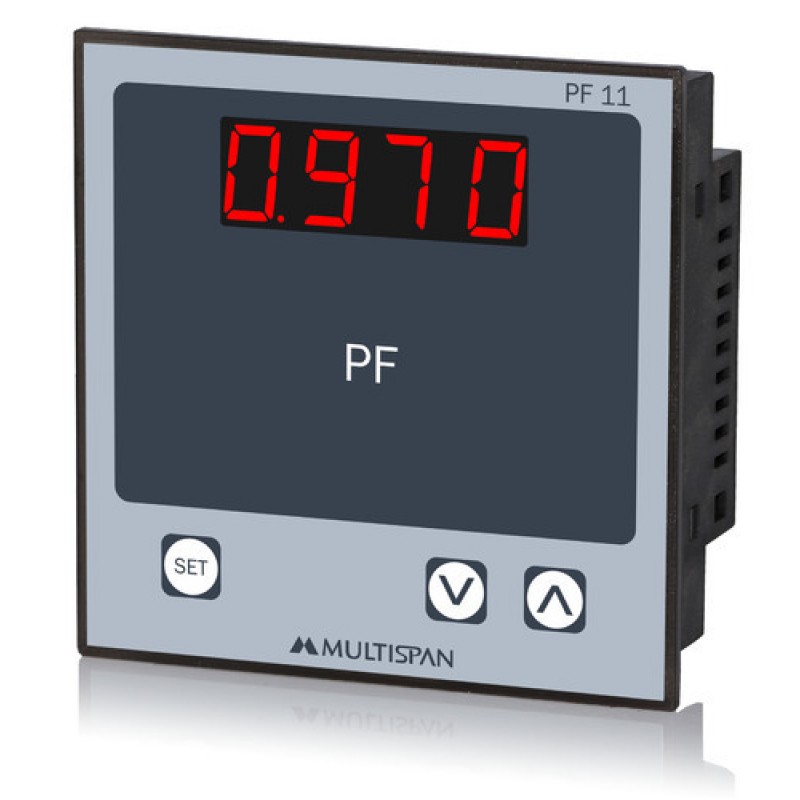

Single Phase Meter
Product Details :
MODEL Dimension (HxWxD) mm Panel Cutout (mm) | PF-11 96 X 96 X 50 92 X 92 | PF-13 96 X 96 X 50 92 X 92 |
Display Features INPUT | Single : 7 segment, 4 digit, 0.56" RED LED display | |
| True RMS. Brighter seven segment LED display for better readability | |
Input Signal | 10, 2 Wire, 230V AC, 50Hz, 5A AC | 30, 4Wire, 230V AC (p-n)(star), 5A AC |
SPECIFICATION Accuracy Power supply | Class 1.0 230 V AC ±10%, 50 Hz | |
Enclosure Material Operating Ambient Temp Relative Humidity | Plastic 0°C - 55°C Upto 95% RH Non Condensing | |
Single Phase Meter
- Views: 114
-
Multispan Control Instruments Private Limited - Product Code: PF-11
- Availability: In Stock
- ₹0
