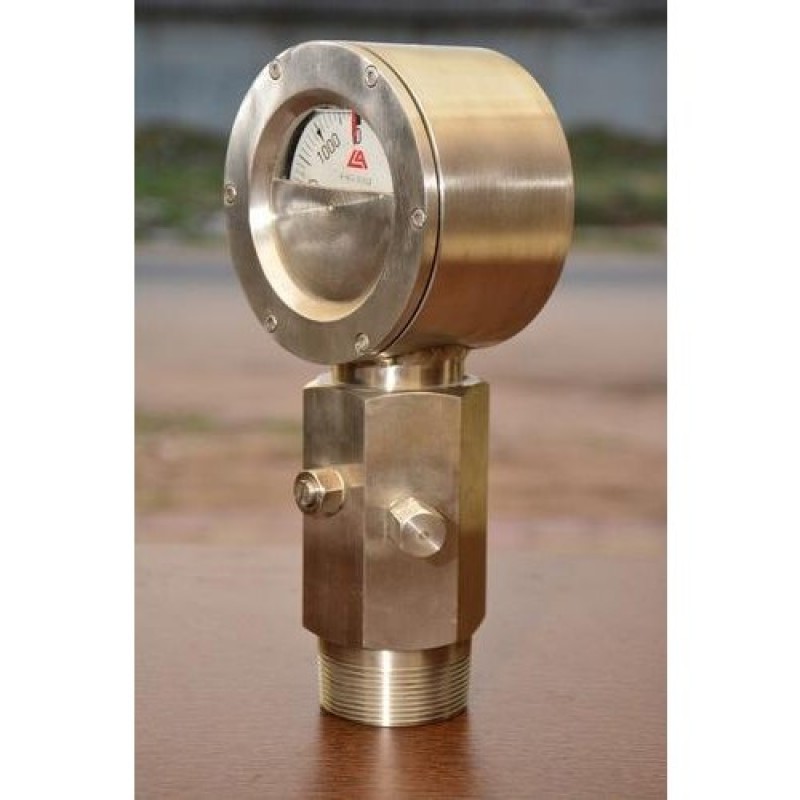

Mud Pressure Gauge
Product Details:
Material | Aluminium |
Accuracy | 1 per FSD |
Overrange Protection | 130 per. of Full Scale |
Nominal Dia | 100 mm |
Specification :
- Pointer : Fixed Pointer
- Dial : Aluminum, Rotating Dial
- Mounting : Direct Bottom Mounting
- Movement_material : AISI SS 304
- Principle_material : AISI SS 316
- Diaphragm_material : AISI SS 316L
- Process_connection : As per requirement
- Case_fill : Glycerin filled
- Window : Safety Glass
- Gasket : Neoprene
Features:
- All SS Heavy construction to withstand severe working conditions
- Special Mechanical Design
- Rotating Dial with Steady Pointer
- Easy Installation
Application:
Mud pump/Petroleum Industry/Drilling rigs
