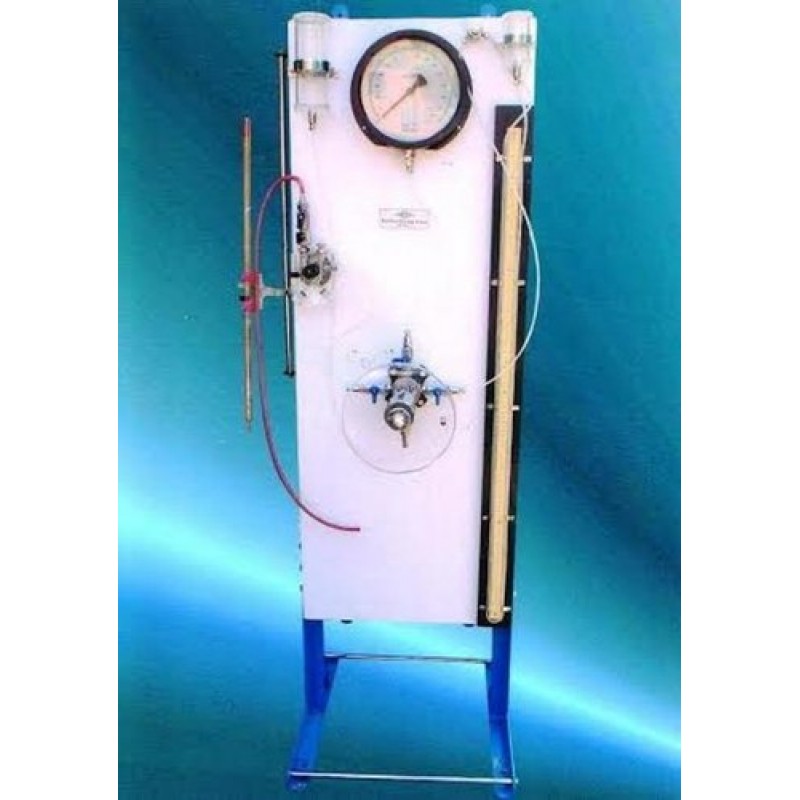

Rajco Bishop Pore-Pressure Apparatus
Product Details:
Minimum Order Quantity | 1 Unit |
Brand | Rajco |
Color | Blue |
Consists of panel for wall
mounting on which are fitted 1.0 to 10 |
kg/cm²x 0.1 kg/cm² a pressure
gauge , Bourdon tube 20 cm dia. |
MANOMETER: Glass U-tube manometer
for measuring low |
postitve pore pressure negetive
pore pressure and checking |
zero error of pressure gauge.
It is provided with a mercury trap |
(Mercury supplied at extra cost)
Null indicator made out of |
clear transport perspex with
mercury trap and cursor to indicate |
the mercury level. |
BURETTE: 50 ml Burette for
measuring the volume change in |
the soil specimen. Pressure pump
fitted with four sleeve packed |
valves, Operated by means of a
hand wheel on the end of the |
piston rod which is threaded thru
the pump cap and gives a |
smooth, fine adjustment of
pressure Copper coil and water |
reservoir. |
The unit is tested against leaks
upto 10kg/cm² |
