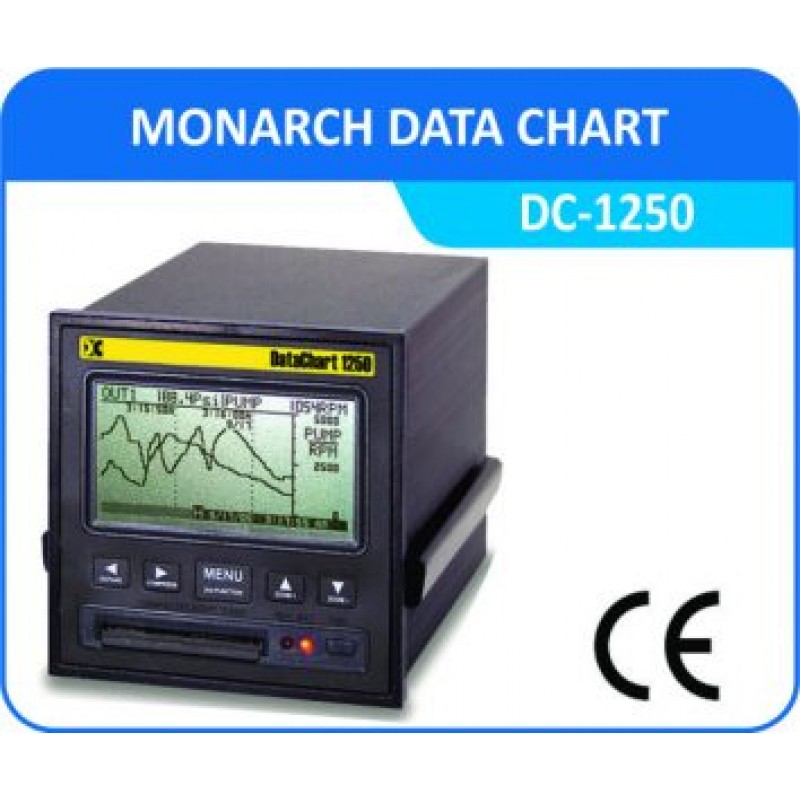

Dual Channel Paperless Recorder DC1250

Download

Description:

The DataChart DC1250 is a powerful, 2 channel compact digital recorder with intuitive operation, flexible input configuration and large memory capability. A maximum sample storage rate of 100 samples per second can be set for both channels allowing for capture of short duration process signals anomalies. CompactFlash™ cards up to 2 Gigabyte size can be used allowing many data points to be stored over long periods of time.

Salient features:-

• Ethernet Communication
• A Clear View through highly reflective twisted nematic LCD display with a bright white LED backlight.
• Versatile Power
• USB Communication
• Data Chart Navigator Software
• Exporting data is as simple as clicking the Excel™ Icon in the Data table export window. Navigator automatically converts the historic data, starts up Excel™ and loads your data into an organized spreadsheet.

The DC1250 can be used in conjunction with many of Monarch’s speed measurement sensors. Power for sensors is provided from the DC1250 rear terminals. Measure, display and record RPM ranges from 0 – 600,000. Choose the sensor best suited for your application or take your existing signal (0 – 5V TTL) directly into the 1250.

Application:-

As a 2 channel Vibration Monitor/ Recorder, the DC1250 is ideal for use on typical rotating machinery such as motors, pumps fans, turbines, compressors, cooling towers and chillers.
