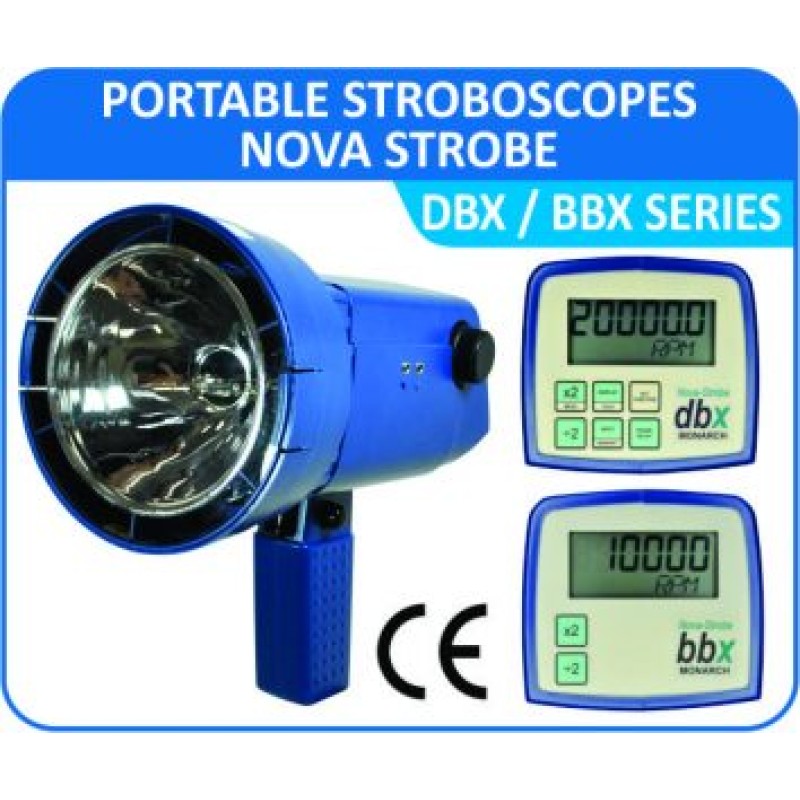

Portable Stroboscopes Nova Strobe DBX/ BBX series

Download

Description:

Nova-Strobe X – The standard for high intensity multi-function portable stroboscopes. Models are available with digital displays, battery or AC power, and a useful range of features which provide unmatched performance and value.

Four models range from the Nova-Strobe DBX Deluxe the most versatile battery powered digital stroboscope with internal phase shifting, down to the Nova-Strobe BAX Basic, the most cost effective AC powered digital stroboscope.

Both the battery powered Nova-Strobe DBX and AC powered Nova-Strobe DAX Provide a range of 30 to 20,0000 flashes per minute and an accuracy of ±0.002 of setting. Flash rates are easily adjusted to fractional RPM by a coarse/fine control knob. Individual TTL compatible input and output jacks are provided for ‘daisy chaining’ of multiple strobes, triggering from an external source, or providing a trigger signal to external equipment.

Both DBX and DAX provide internal phase shifting to keep the target precisely in view. Both provide x2 and ÷2 capability for distinguishing actual RPM from harmonic frequencies. In addition, 6 user presetable memory flash rates for repetitive measurements and storage of the last flash rate measured are included.

Salient features:-

• Internal rechargeable batteries or AC powered models
• Weighs less than 2.0 Lbs. for easy handling
• More than 20% brighter Xenon light than competitors
• Electronic switching provides continuous cool operation
• Tripod mounting bushing in handle.
• N.I.S.T. Traceable Certificate of Calibration included
• Internal phase shifting for easy reference target viewing
• Tachometer mode, speed measurement up to 250,000 RPM
• Power for optional sensors
• Battery charge indicator (DBX only).
