MODEL

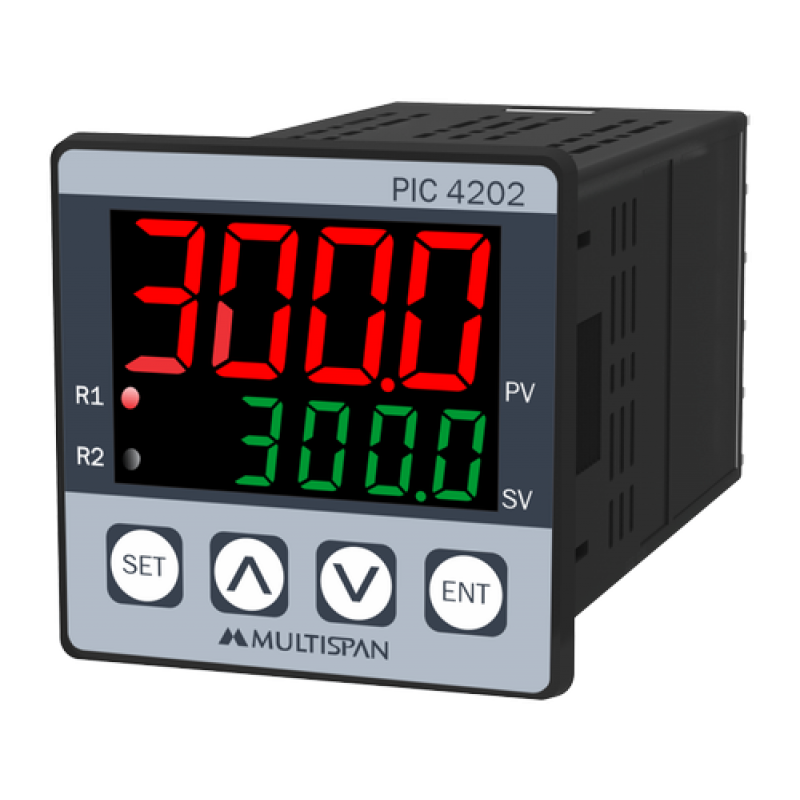

PIC-4202

Dimension (HxWxD) mm

48x48x95

Panel Cutout

45x45

Display

Upper:7 segment ,4 digit,0.56",RED LED display-Process value,

LOWER:7 segment ,4 digit,0.33",GREEN LED display-set value

Input

0-10V DC /4-20 mA DC / 0-20 mA DC

Range

-999 TO 9999

Relay Output

2 Relay

Relay Rating

1 C/O,5A,230V AC

Transmitter Supply

24V DC(optional)

Set Point

2 Set point

Control Action

ON-OFF Action

Operating mode

SET-1:High alarm, Low alarm, In band, Out band, Absolute Low, Absolute out band, SET-2:High alarm, Low alarm, In band, Out band, Absolute Low, Absolute out band

Power supply

100-250V AC/DC SMPS,50/60Hz

Enclosure Material

ABS&  Polycarbide

Operating Ambient Temperature

0°C to 55°C

Relative Humidity

Up to 95%RH Non Condensing
