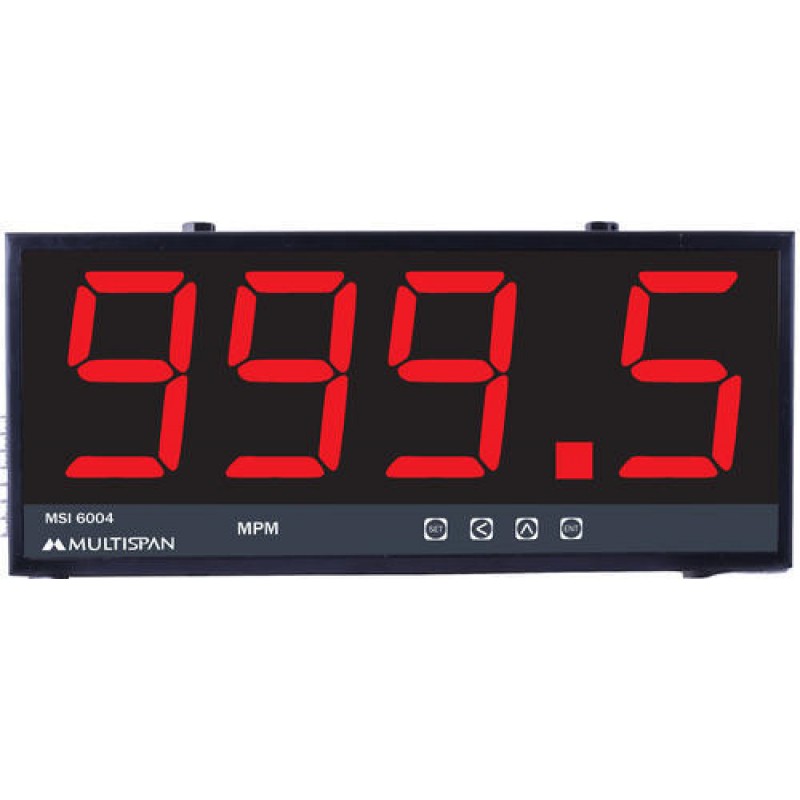

Process Indicators-Single
Product Details :
MODEL | UTI-6004 | UTI-3004 |
Dimension (HxWxD) mm | 160 X 380 X 50 | 130 X 235 X 50 |
Display | Single Display: 7 segment, 4 digit, 4 1/2", RED LED display | Single Display: 7 segment, 4 digit, 2.25", RED LED display |
Input | J / K / PT-100 2W/3W (Configurable) | |
sensor range | J(0°C to 600°C), K(0°C to 1200°C), PT-100 2W/3W ( 0°C to 400 °C, - 99.9°C to 400.0°C) 2 Relay for Alaram | |
Accuracy | ±1% of FSD | |
Power supply | 90 - 270V AC / DC, 50 / 60Hz, SMPS | |
indication | "OPEn" message is displayed if the sensor is disconnected | |
Enclosure Material | Metal | |
Operating Ambient Temp | 0°C - 55°C | |
Relative Humidity | Upto 95% RH Non Condensing |
