MODEL

Dimension (HxWxD) mm Panel Cutout (mm)

BC-1046

96 X 96 X 50

92X92

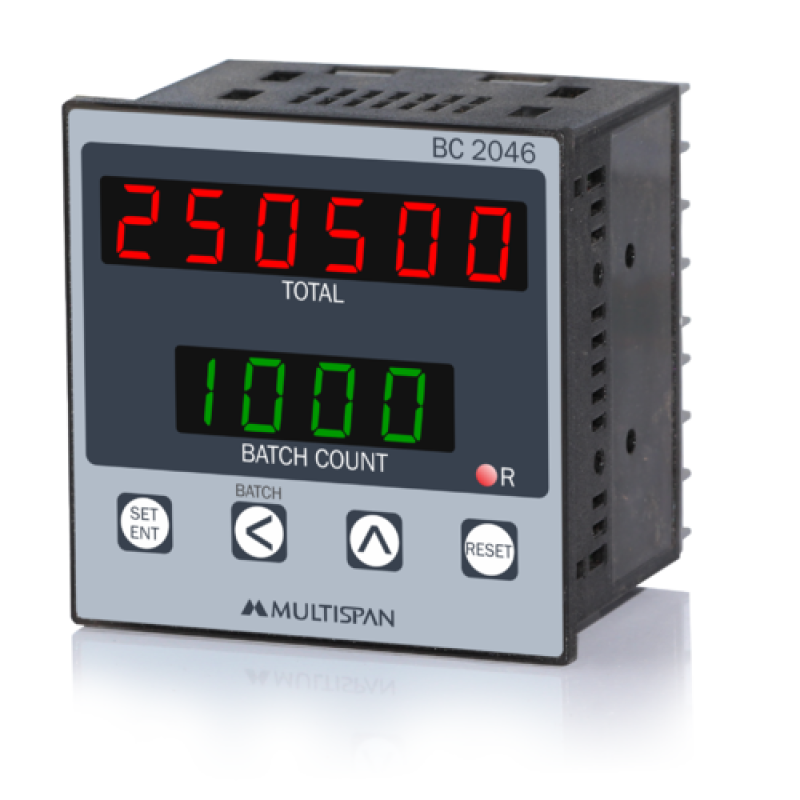

BC-2046

72 X 72 X 60

68X68

BC-445

48 X 48 X 95

44X44

Display Range

Upper : 7 segment, 6 digit, 0.56", RED LED display- Total Count Lower : 7 segment, 4 digit, 0.4", GREEN LED display- Batch Count

Upper : 7 segment, 6 digit, 0.4", RED LED display- Total Count Lower : 7 segment, 4 digit, 0.4", GREEN LED display- Batch Count

Upper : 7 segment, 5 digit, 0.3", RED LED display- Total Count Lower : 7 segment, 4 digit, 0.3" GREEN LED display- Batch Count

Upper display range (0~999999 COUNT) Lower Display range (0~9999)

INPUT

Input Signal

OUTPUT

NPN / PNP Proximity Switch / Micro switch (Configurable) / 230V AC Pulse (Factory Set)

Control Output Relay Ratings SSR / Buzzer

1 - (Relay + Buzzer / SSR + Buzzer) 1 C/O, 5A, 230V AC 12V DC approximately
