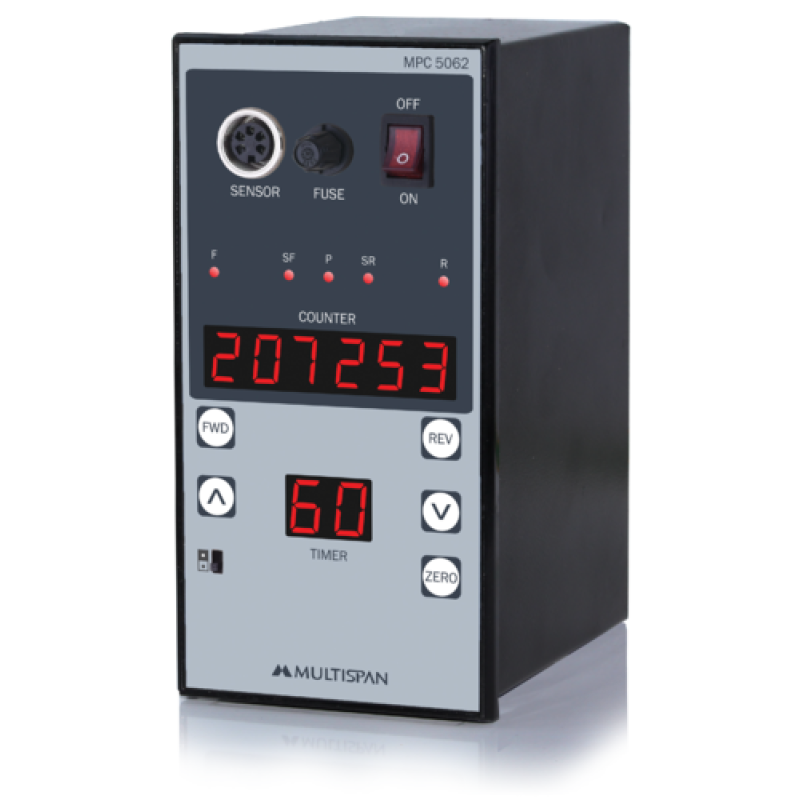

MODEL

Dimension (HxWxD) mm Panel Cutout (mm)

MPC-5062 __1

96X192X100 ^9 92X 188

Display Features

Upper : 7 segment, 6 digit, 0.56', RED LED display - Total COUNT (0-999999) Lower : 7 segment, 2 digit, 0.56', RED LED display- TIME (0-99)X10 milliseconds)

Micro Controller Based Controlling On-Off Power Supply Switch Built-in Pouch Totaliser with 6-Digit Memory Digital Display of Motor ON timer (Adjustable)

Push Button for Manual Operation of Motor in Forward or Reverse Direction

INPUT

Input 1 Input 2

1 or 2 NPN Proximity Switch (Factory Set) Color mark Sensor

Control Output Output Ratings

2 - Output (For Forward & Reverse Winding) 2A, 110V AC

Setting Reset Facility Memory Retention

Front Keypad Manual Reset Facility Non-Volatile Memory

Power Supply Indication

110V AC, 50 Hz (linear power supply)

LED for indicating: Forward Direction, Reverse Direction, Sensor Forward, Sensor Reverse & Color Mark Sensor

Enclosure Material Operating Ambient Temp Relative Humidity

Metal

0°C - 55°C

Upto 95% RH Non Condensing
