ROTAP SIEVE SHAKER APPARATUS

Product Details:

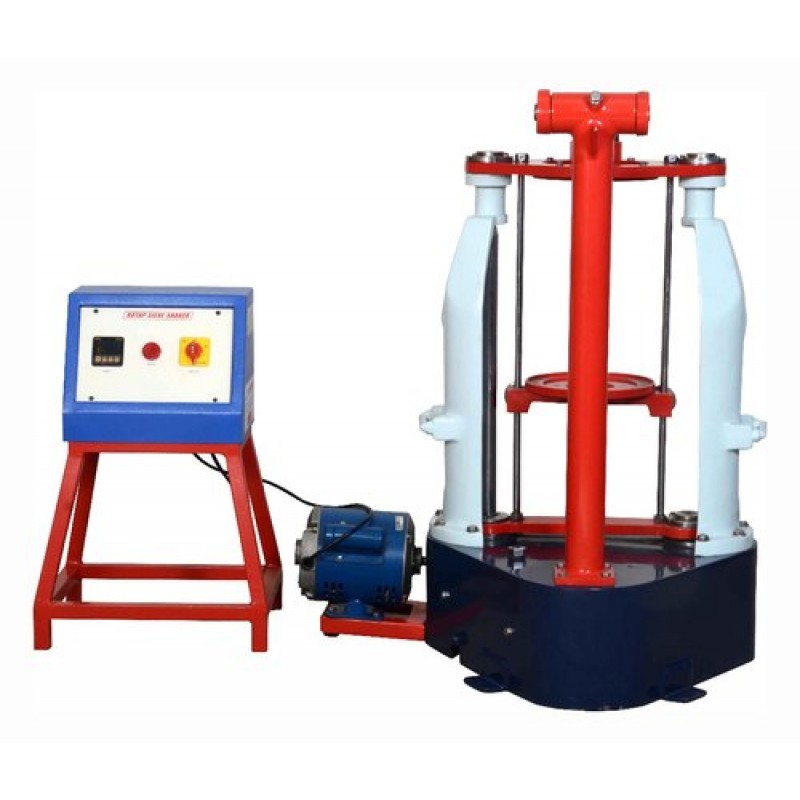

description;The rotap sieve shaker reproduces the circular and tapping motion given to test sieves in hand sieving. The uniform, mechanical action ensures accurate and dependable test. Using the regular height 20-cm diameter sieves, one sample can be tested on a series of six sieves of different openings, all with one operation of machine. The Rotap Sieve Shaker is simple and durably constructed and is run by a motor. The running parts operate in oil. The machine is easily installed. No special foundation is required. Test Sieves are supplied at extra cost. A time switch from 0 to 60 minutes is provided.
utilities required;• Electric Supply: Single phase, 220 V AC, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts. • Material for analysis. • Floor Area: 1 m x 1 m. • Electronic Weighing Balance: capacity 2 kg (Least count 1 gm
technical details; • Sieve assembly : Compatible to sieves of 20-cm dia. (for 6-7 sieves) • Drive : By ½ HP motor • Control Panel comprises of : Standard make on off switch, Mains Indicator etc. • Special arrangement for setting time for shaking. • An ENGLISH instruction manual consisting of experimental procedures, block diagram etc. will be provided along with the Apparatus. • The whole set-up is well designed and arranged on a rigid structure painted with industrial PU Paint.
