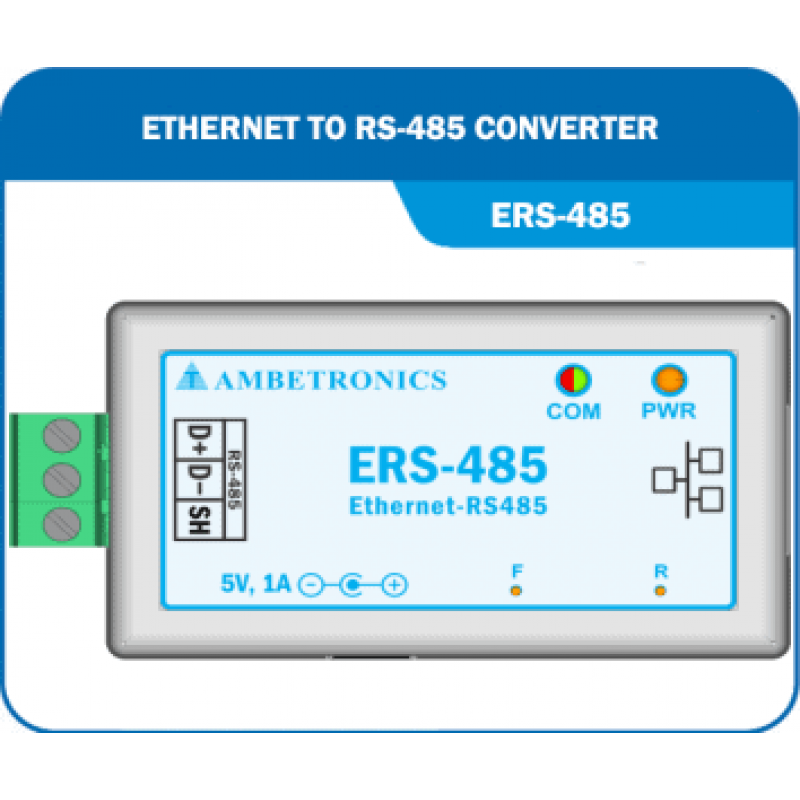

RS-485 To Ethernet  Converter:

Description:

Ambetronics is leading manufacturer of RS-485 to Ethernet Converter. ERS-485 devices are ideal for applications and devices that require an efficient way of communicating with serial RS-485 devices over an Ethernet network.

The ERS-485 is an economical Modbus-to-Ethernet converter that can quickly and easily be added to any device with a RS-485 serial port, making that device Web-enabled. It is a single port serial server, that converts a serial port to an Ethernet Port, thus removing cable length limitations, and allowing for “serial tunneling” of a device through an Ethernet or TCP/IP.

Converting Data From RS-485 To Ethernet:

RS-485 data sent and received on serial ports on the ERS-485 converter are encapsulated in Ethernet packets in a manner that best fits the type of data being transported.

AEPL’s ERS-485 converter (commonly referred to as Terminal Servers or Device Servers) connect RS-485 based equipment across an Ethernet network enabling you to do following things such as:

• Cable replacement using RS-485 to Ethernet
• Have virtual COM ports connect PC/servers to remote RS-485 devices over Ethernet
• Communicate to multiple RS-485 devices at the same time across a network
• Use ERS-485 Converter to connect Serial PLCs to Ethernet
• Connect serial equipment over Ethernet with ERS-485 Converter
• Modbus RTU to Modbus over TCP/IP or Modbus TCP/IP

Features:

• LED Indication
• Low Cost
• 10/100Mbps Ethernet
• TCP/UDP/Telnet Modes
• DHCP/Static IP Modes
• Web Based Configuration
• Low Power

Technical Specifications:

• Protocols: Support TCP, UDP, DHCP ,HT TP Server-
• Client, TELNET, Modbus TCP
• Speed: 10/100Mbps
• Working: Half Duplex
• Configuration: In-built HT TP Web Server
• Working mode: Support Server and Client
• Transmission: 100 meter
• Connector: RJ45

Serial interface:

• Parity bit : None, Even, Odd, Space, Mark
• Data bit : 5bit, 6bit, 7bit, 8bit
• Baud rate : 600bps to 460800 bps
• Flow control : RTS/CTS or XON/XOFF or No flow control
• Interface protection : 2KV static protection
• Interface type : RS-485 (D+, D-, SH)

Power Supply:

• Power input : 5VDC, 1A
• Consumption : ~1.5W
• 1 DC jack for power connections

Environment:

• Working temperature : -20°C to 55°C
• Storage temperature : -20°C to 60°C
• Relative humidity : 5% to 95% RH, Non-condensing

Appearance:

• Compact Size : 78 mm (L) x 41mm (W) x 24mm (H)
• Material : ABS Plastic
• Weight : ~ 100g

Applications Of RS-485 To Ethernet Converter :

• Fire and Security Panels.
• Remote equipment management.
• Access Control.
• Industrial Control.
• Home Automation.
