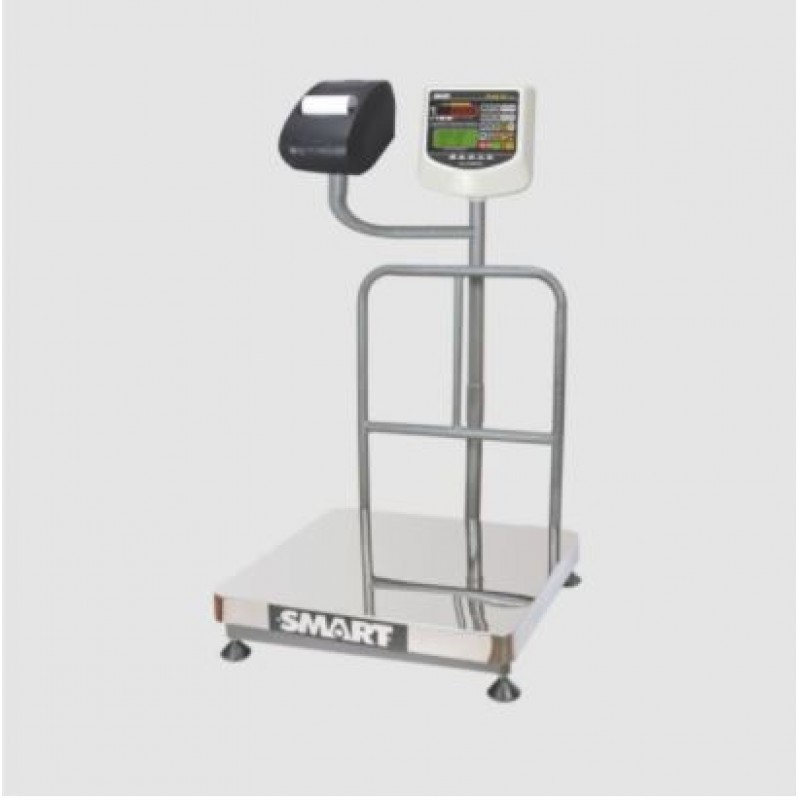

Receipt Printing Platform Scale
The Receipt Printing Platform Scale is a Customized scale designed for Restaurant & Industrial use. This scale comes with features, including hi/lo check weighing, pre-set tares, alphanumeric keypad, built-in overload protection and quantity alarm. This scale comes with an internal counting resolution of 1/100,000 enabling it to count very small items with impressive precision. Bright LED display for Weight can be read easily even in poor lighting conditions.
Description :
Features & Specifications
- Bright RED LED for weight display.
- Easy to clean ABS enclosure; resistant to harsh and corrosive environments.
- Suitable for use on the table, column or wall.
- 16 x 4 Line, Backlit character LCD for operator dialogues/messages
- Full Mobile Keypad alphanumeric data entry without external keyboard
- 8 direct function keys.
- Internal resolution 300,000 counts.
- Display resolution Upto 99,000 increments.
- Menu driven operation & configuration.
- Programmable data files and print formats.
- Real time clock with battery back up.
- Keyboard calibration.
- Upgradeable Firmware by user
- Connectivity to DMP Printer (Programming Interface for ESC/POS, EPSON,IBM Compatible)
Database
- Supplier Master, Customer Master, Formulations or any other database required
- Storage option of up-to 100,000 Records of data
- Storage of data is time stamped
- Customized Report on Printer / USB Pen Drive – Excel Format
IO Section
- 3 serial communication ports for PC, Printer PLC
- USB Host – Pen Drive connectivity upto 4GB
- 16bit High precision 4-20mA / 0-10V Output for connection to PLC
- GSM/GPRS Connectivity Option(Integration with FTP/HTTP/SMTP) Protocols.
- Read Data through Barcode Scanners
- 101 Key PS2 External Keyboard Port
- 4 Potential Free Relay Outputs for direct loads upto 5Amps(Opto-Isolated Circuit)
Application Software
- Pharmaceutical – Tare Gross Net (Dispensing Application)
- Pieces / Quantity Counting, Labeling Reporting
- Formulation / Ingredient Control
- Weigh Bridge / Vehicle Management
- Shipper Scale
- Product Dosage System (batch Control) – Loading / Unloading
- Agricultural Produce Collection
- POS Systems
Customizing The Product
- The development area inside the indicator allows to us to easily customize your application software.
- The software can be easily upgraded through remote support using a PC and internet connection
- All features mentioned above are optional so that you can choose and pay for what you need.
- An overall product which make complete economic sense.
- MOST IMPORTANT – Designed and developed in India by SMART. Be SMART and CHOOSE Smart
- For more information and your queries you may write to us with your specific requirement
Specifications :
RECEIPT PRINTING SERIES | |||||
---|---|---|---|---|---|
Platform Size | Capacity (kg) | Division (g) | Loadcell | Platter | Accessories |
400 x 400 | 50 / 60kg | 5 / 10gm | 1 | SS | Attached Pole Remote Display* Separate Pole* Dust Cover* Ti10-Price Computer* Ti10-Piece Counting* RS232 Option* Printer Option* |
400 x 400 | 100 / 150kg | 10 / 20gm | 1 | SS | |
400 x 500 | 50 / 60kg | 5 / 10gm | 1 | SS | |
400 x 500 | 100 / 150kg | 10 / 20gm | 1 | SS | |
500 x 500 | 100 / 150kg | 10 / 20gm | 1 | SS | |
500 x 500 | 200 / 300kg | 10 / 20gm | 1 | SS | |
600 x 450 | 100 / 150kg | 10 / 20gm | 1 | SS | |
600 x 450 | 200 / 300kg | 20 / 50gm | 1 | SS / MS | |
600 x 600 | 100 / 150kg | 10 / 20gm | 1 | SS / MS | |
600 x 600 | 200 / 300kg | 20 / 50gm | 1 | SS / MS | |
600 x 600 | 500 / 600kg | 50 / 100gm | 1 | SS/MS |
Custom built sizes available
