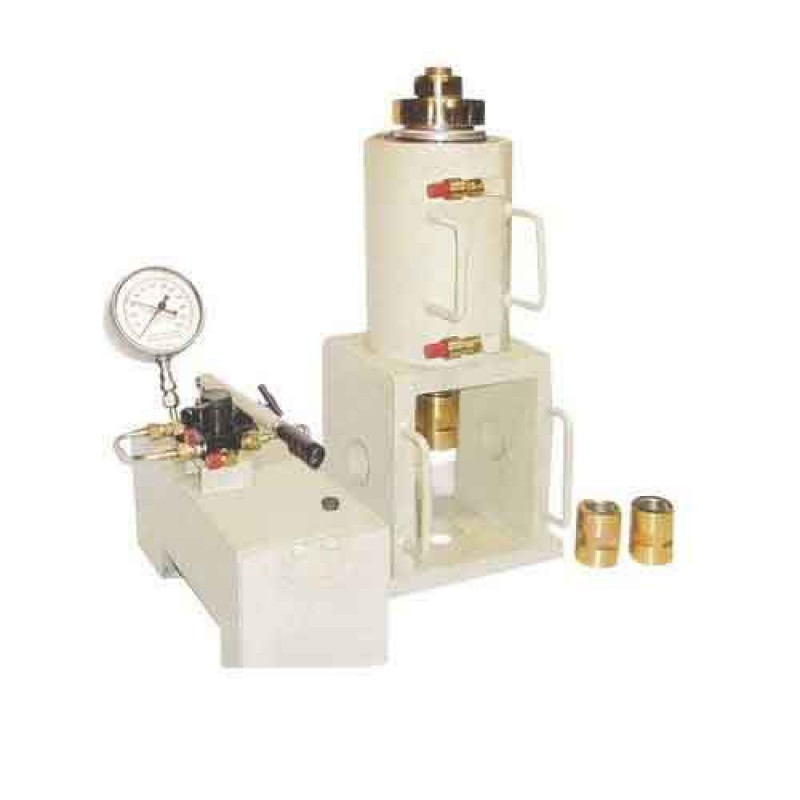

Pullout Test Apparatus
Model No.: SMEW-0168
- 500 kN (50 Tonnes)
Consists of following :
- Hydraulic Centre Hole Jack: 500kN (50 Tonnes) capacity with 54mm Centre Hole, 150 mm Ram Travel, Double Acting
- Hand Operated, two stage Pump Thermoplastic Hose: 6m long with pair of quick couplings
- Load Gauge: 150mm dia, 500kN x 5KN
- Reaction Frame: 500kN capacity with 90mm hole at base
- High Strength Test Rod: 40mm dia.
- High Strength Coupling: Having RH thread to suit Test Rod on one end and LH to suit 32 mm dia. Rockbolt on the other end.
- Dial Gauge: 0.01 x 25 mm
Pullout Test Apparatus
- Views: 128
-
SM Engineering Works - Product Code: SMEW-0168
- Availability: In Stock
- ₹0
