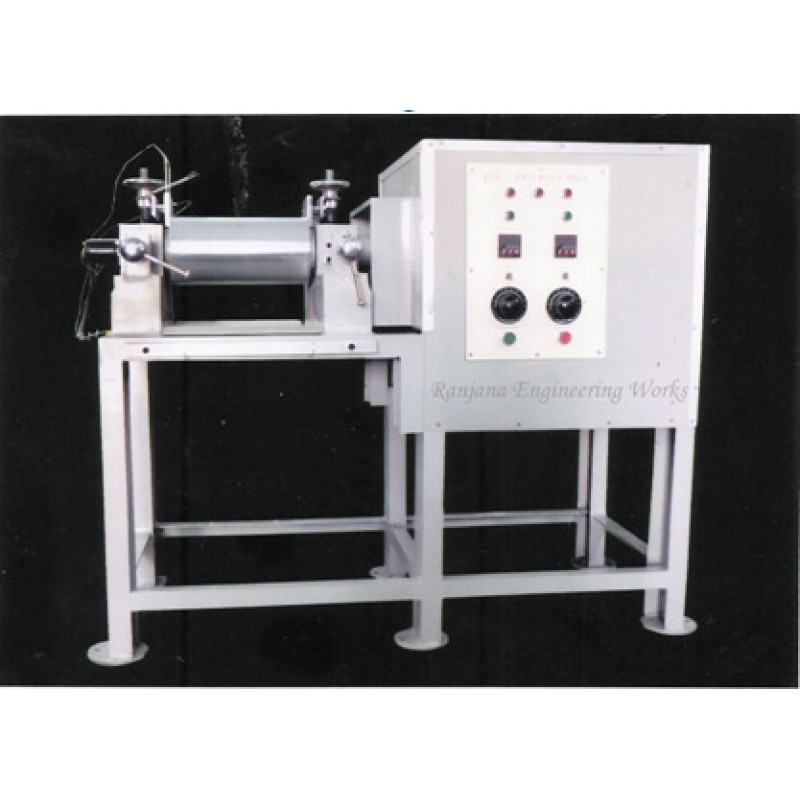

Rolling Mill
Product Details :
Condition | New |
Mill Type | Hot Rolling Mill |
Automation Grade | Semi-Automatic |
To prepare sample sheets from PVC granules for quick testing of raw material/finished products in laboratory.Eliminates need of running extruders on production lines, thus saving precious raw material & production loss.Electrically heated rollers.Rolling mill is made of corrosion resistant steel, surface hardened and polished. High temperature sealings are used for the bearings.Both rolls run at a fixed speed and with a constant friction ratio.
Technical Data
Roll diameter: 150 mm Roll width: 300 mm Working width: 275 mmRoll Speed: Approx. 22/27 min-1Power: 2 * 1.5 kWTorque: 500 NmRoll Temperature: Up to 220°C
