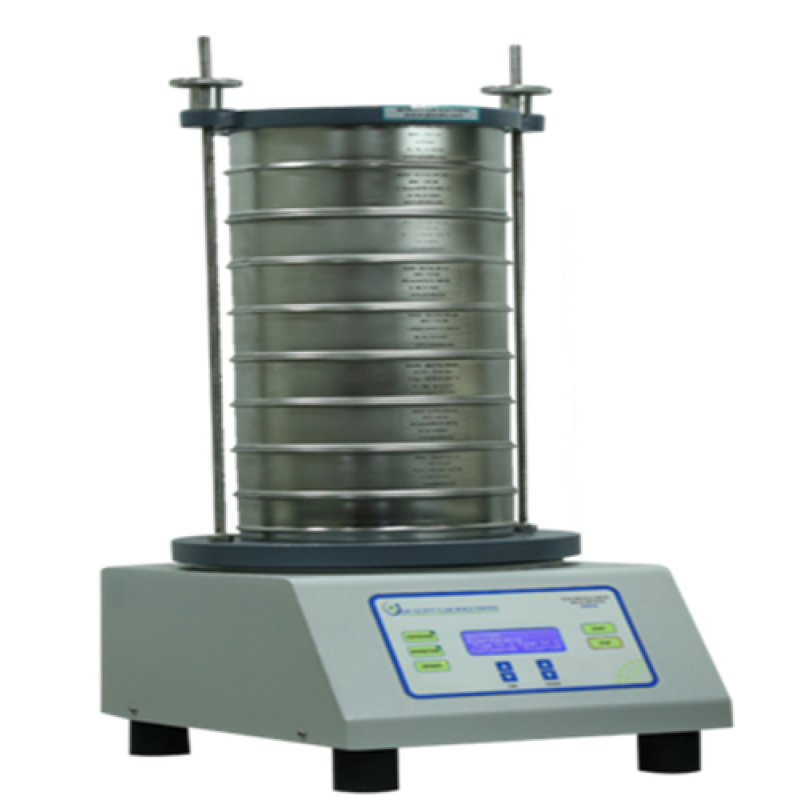

SIEVE SHAKER
Product Details:
Usage/Application | Separation, Fractioning, Particle Size Determination |
Brand | AMAZE INSTRUMENTS |
Material | Aluminum Alloy |
Model Name/Number | AI-SS-174 |
Shape | Rectangular |
Capacity | 2KG |
Automation Type | Automatic |
Color | Grey |
Laboratory Sieve Shaker: It is ideally used as a particle size analyser for governing the separation of particles according to their sizes. The instrument can handle pharmaceutical powders and granules as well as chemical processing materials, dyes, chemicals and is also used by the food processing industry. It is also used to test sand, cement and gravel
Specifications:
- Applications - Separation, Fractioning, Particle Size Determination
- Display - Bright LED Display
- Sieving - Both Dry and Wet
- Sieve Diameter - 200
- Vibration Frequency - 1420 times/minute
- Measuring Range - 0.038 4mm
- Mode Selection - Continuous
- Max. Batch / Feed Capacity - 2 kg
- Programmable Time - 1 to 99 min
- Vibration Amplitude - ≤ 5mm
- Noise - 50 dB
- Power - AC 220V 125W
- Weight - 25 kg (without test sieves)
