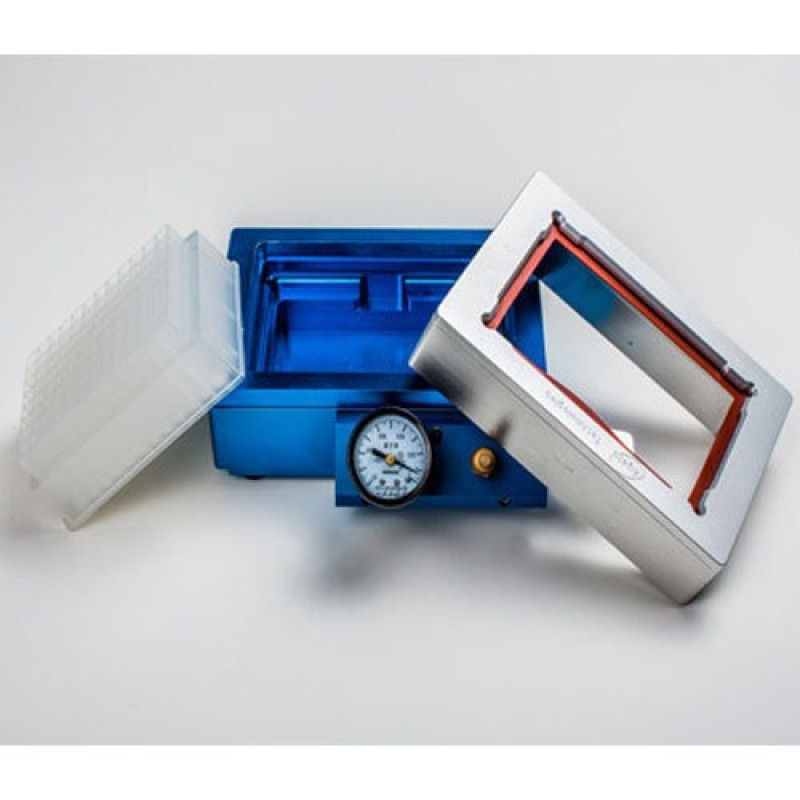

96-Well Plate Vacuum Manifold
- VM96 Features
- The degree of vacuum can be controlled by adjusting the needle value
- Vacuum gauge shows the degree of vacuum
- Corrosion-resistant design of the whole system
- Elevate the module by adding collection plate
- VM96 Operation Procedures
- Use vacuum tubing to connect the suction port of VM96 and the inlet pot of the vacuum pump;
- Remove the top cover of VM96, and put 96-well collection plate into the cavity of the bottom cover of VM96;
- Put back the top cover;
- Put the 96-well SPE plate exactly on the top cover of VM96;
- Make sure the gas valve at vacuum state (perpendicular). Start the vacuum pump, adjust the vacuum valve to suitable degree of vacuum (i.e. SPE plate flow rate);
- After elution, rotate the gas valve 90 degree to non-vacuum state. Then remove the 96-well SPE plate. Note This device is a precision vacuum device, keep in mind is not removable to avoid collisions, so as to avoid a vacuum leak warranty.
* Note Collection plate spacer could be used for micro collection plate to avoid cross contamination.
VM96 Specifications
