Sample Changer:

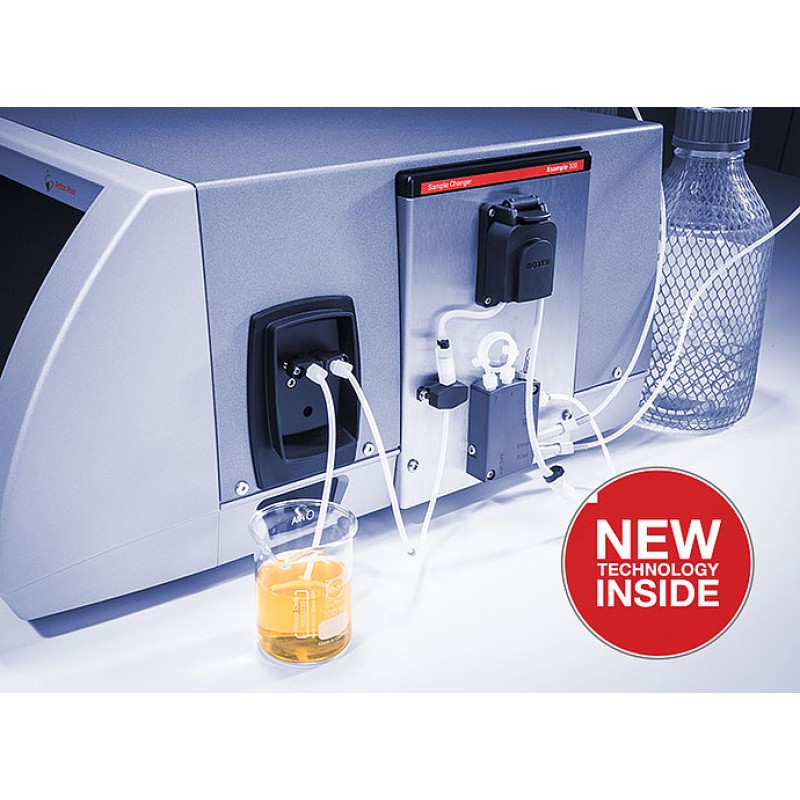

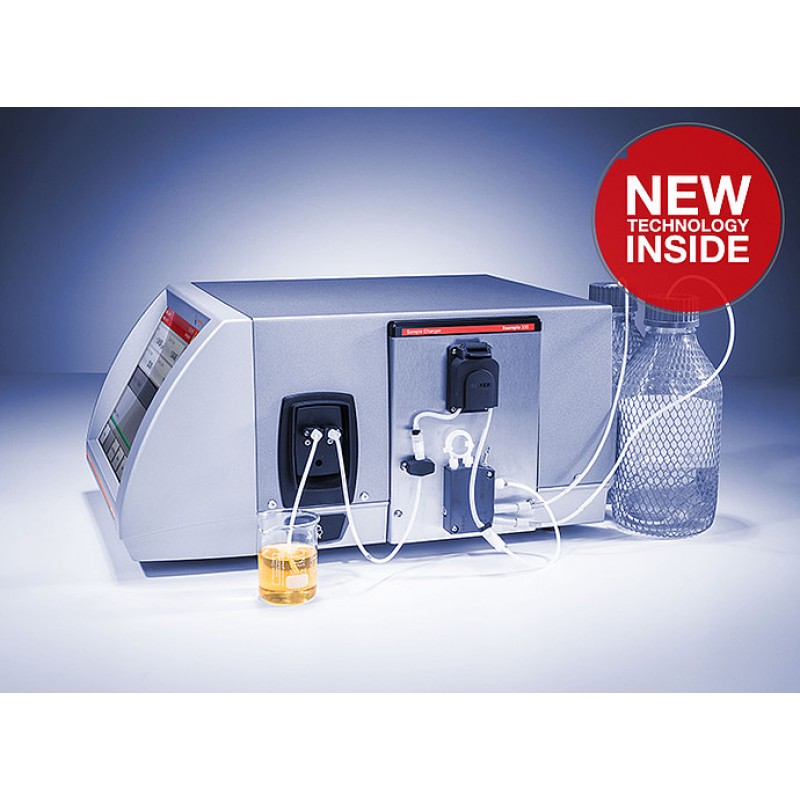

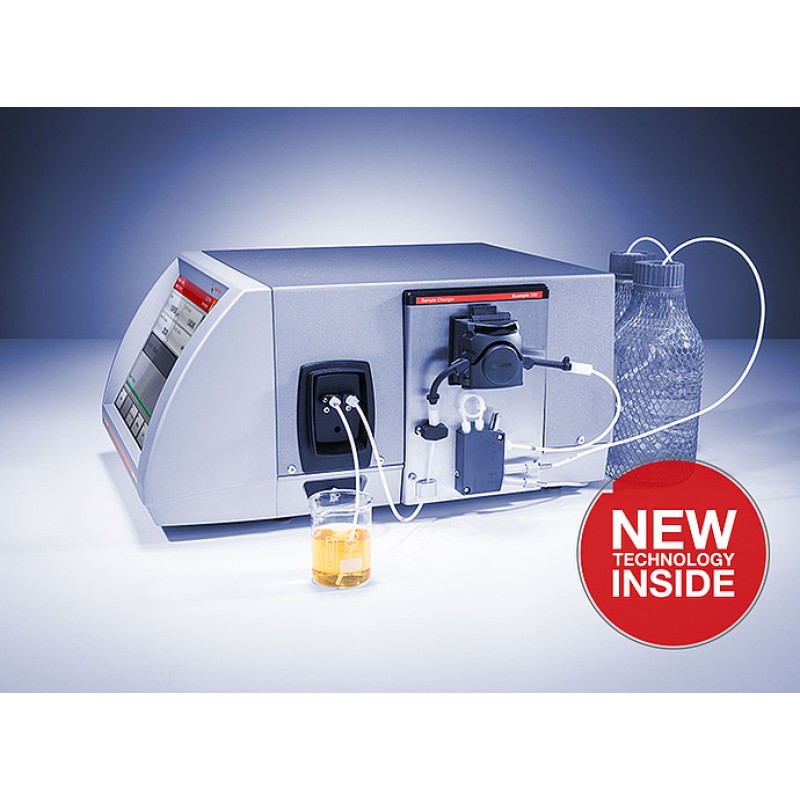

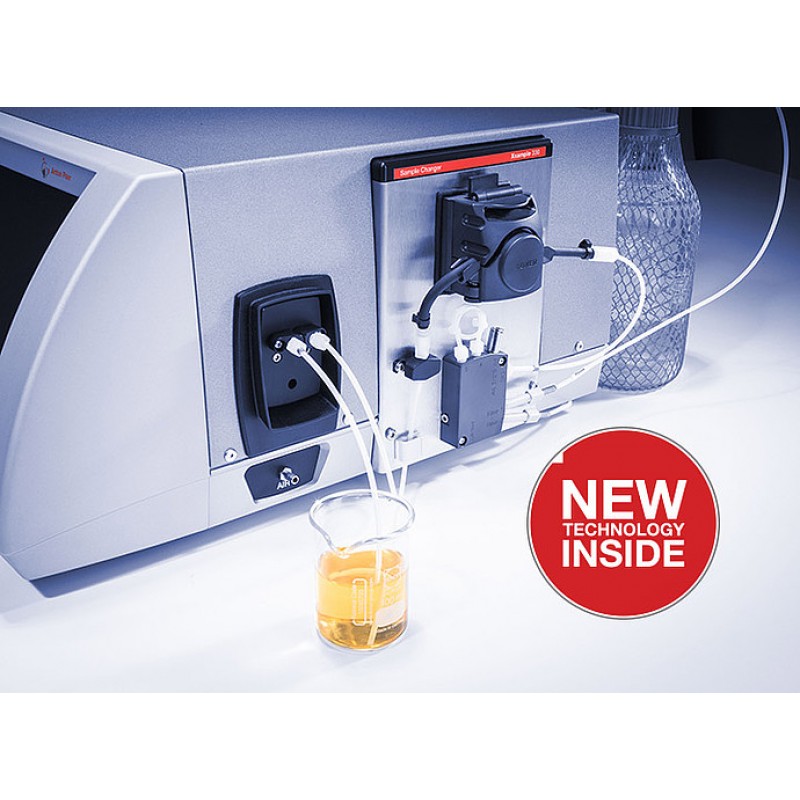

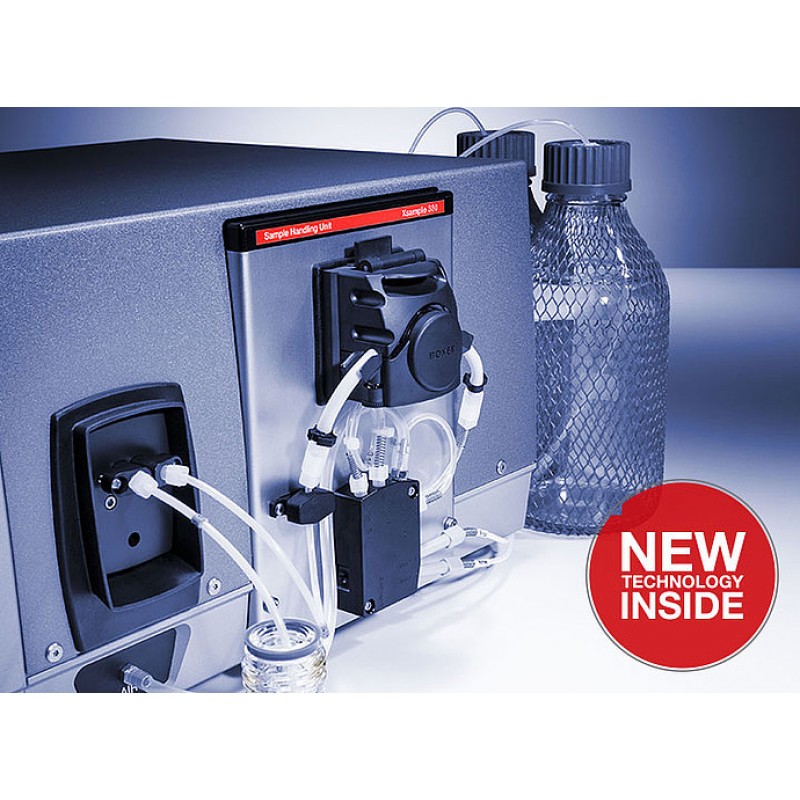

Xsample-330
- The single sample changer for a wide range of samples
- Prevents sample carry-over with automatic rinsing and drying after each sample
- Highly resistant wetted parts for handling aggressive samples
The new industrial grade peristaltic pump in combination with automatic cleaning makes Xsample 330 perfectly suitable for measuring single low-viscosity samples with widely different properties in direct succession. Once measured, the sample is drained or recovered and the system is automatically cleaned with up to two cleaning agents. A drying step is performed by the operator to perfectly prepare the measurement cell(s) for the next sample.
Key features
Automatic cleaning
- Automatic rinsing and drying after each sample for perfect preparation of the system
- Up to two different cleaning agents can be used in any order for an individual cleaning procedure.
- Advanced settings for cleaning procedures to increase measuring performance
For a wide range of samples
- Filling with peristaltic pump covers a wide range of different sample viscosities up to 3,000 m.Pas
- All wetted parts of Xsample 330 (high resistance) are made of durable materials for aggressive samples, such as phosphoric acid or trichloroacetic acid
- Adjustable filling modes for different types of samples enable perfect measuring results
Highly efficient sample handling and easy operation
- Depending on the system size, only a minimum amount of sample volume is needed to perform a measurement
- Easy operation by an integrated user interface on the master instrument
- Straightforward measurements of different sample viscosities due to a sensor-controlled stop of the filling procedure
- Automatic sample recovery returns expensive or hazardous samples back to their vials
Technical specifications :;
Xsample™ 330 (High-resistance) :
Viscosity range | up to 3,000 mPa•s at ambient and measuring temperature¹ |
Filling mode | with peristaltic pump:
|
Typical time for filling and measuring cycle | 2 to 5 minutes |
Minimum sample volume | approx. 10 mL to 20 mL |
Compressed air supply | max. 2 bar (29 psi) relative |
Quality of air necessary | Class 3 according to ISO 8573-1: max. particle size: 5 μm max. pressure dew point: –20 °C (–4 °F) max. oil content: 1 mg/m³ |
Environmental conditions (EN 61010) | indoor use only |
Operating temperature | +15 °C to +35 °C (+59 °F to +95 °F) |
Pollution degree | 2 |
Over voltage category | II |
Altitude | max. 3,000 m (9,840 ft) |
Power supply | supplied by the master instrument AC power supply voltage according to technical data plate at the rear of the master instrument (protective grounding required) |
Dimensions excl. master instrument (L x W x H)Xsample™ 330Xsample™ 330 High-resistance | 205 mm x 148 mm x 185 mm (8.1 in x 5.8 in x 7.3 in)205 mm x 148 mm x 205 mm (8.1 in x 5.8 in x 8.1 in) |
Weight excl. master instrument Xsample™ 330 Xsample™ 330 High-resistance | approx. 3.7 kg (8.2 lbs) approx. 3.8 kg (8.4 lbs) |
¹ Recommended for samples with a viscosity up to 500 mPa•s at ambient and measuring temperature. For samples with a viscosity higher than 500 mPa•s at ambient and measuring temperature, bubbles may occur during filling.
