Sample Changer:
Xsample-530
- The multi-sample changer with the highest cleaning performance
- Handles up to 71 samples with optional sample recovery
- Automated cleaning and drying with up to three solvents
- Customized magazines available for your own vials
- Measurement of volatile samples

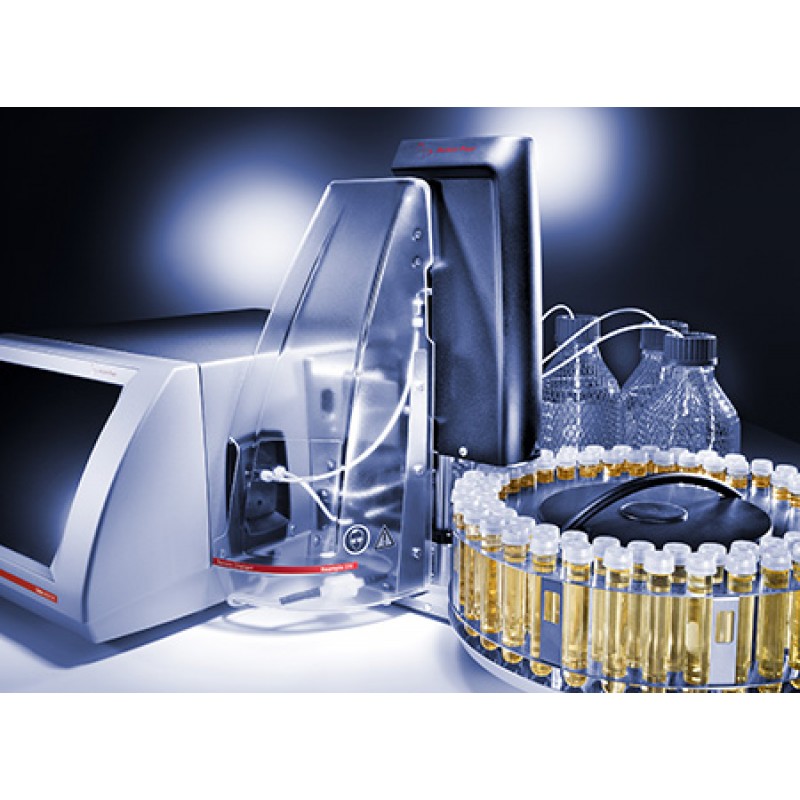

The Xsample 530 sample changer for all Anton Paar master instruments handles samples with a wide range of properties. With controlled filling power, samples from plain water to highly viscous oils (up to 36,000 mPa.s) are filled in a minimum of time. The 71-position magazine for unattended operation can be exchanged with one hand to ensure easy handling and filling.
With up to three cleaning agents, Xsample 530 is ready to measure a great variety of samples in one run. No compromises regarding mechanical components as well as a superior resistance to chemicals ensures increased uptime of the system and low maintenance costs.
Key Features
Perfect measurement results due to perfect cleaning
- Automatic rinsing and drying after each sample for perfect preparation of the system
- Up to three different solvents can be used in any order to achieve optimal cleaning performance
- Active needle cleaning – inside and outside – prevents any sample cross-contamination.
- Advanced settings for special treatment of the sample to increase performance
Easy operation through simplified workflows
- The removable magazine for easy sample collection has a capacity of 71 samples (12 mL vials) or 35 samples (45 mL vials).
- Customized magazines for almost any type of vial are available to ensure a smooth workflow in your lab.
- Standard modes in the intuitive software enable seamless sample measurement.
- Optional bar code reader for digital error-free data input and automated method assignment
Intelligent checks and procedures according to your needs
- Automatic sample recovery (optional accessory) returns expensive or hazardous samples to its vial
- Automatic filling and draining (sensor-controlled) for low-viscosity samples or samples up to 36,000 mPa.s
- Automatic air check before measurement to rule out sample cross-contamination
- Automatic pressure and tightness test to ensure trouble-free and safe operation
Technical specifications :
Viscosity range Operation with internal air pump Operation with 2 bar external compressed air | 12.000 mPa·s at ambient and measuring temperature 36.000 mPa·s at ambient and measuring temperature |
---|---|
Filling mode | Pressure mode
Suction mode (optional) |
Minimum sample volume per measurement | approx. 3 mL (with master instrument DMA™ M) depending on system configuration |
Sample recovery | optional |
Rinse consumption per cycle | approx. 4 mL |
Sample throughput | max. 9 per hour depending on application and used pressure source |
Number of sample vials | 71 positions for 12 ml vials optional: 35 positions for 45 ml vials customer specific magazines on request |
Automatic filling and drying | Piston pump, internal air pump of master instrument or compressed air selectable |
Compressed air supply (optional) | 1.80 bar – 2.20 bar (26 psi – 32 psi) relative external compressed air typically: 2.0 bar (29 psi) rel. |
Necessary quality of air | Class 3 from ISO 8573-1: max. particle size: 5 μm max. pressure dew point:-20°C (-4°F) max. oil content: 1 mg/m3 |
Environmental conditions (EN 61010) | Indoor use only |
Air humidity | 10 to 90% relative humidity, non-condensing |
Operating temperature | +15 to +35 °C (+59 to +95 °F) |
Power supply | supplied by master instrument Mains voltage according to the type plate at the rear of master instrument (protective grounding required) |
Dimensions excl. master instrument (L x W x H) | 370 mm x 490 mm x 430 mm (14.6 in x 19.3 in x 17 in) |
Weight excl. master instrument | approx. 48 kg (105.8 lbs) |
Optional bar code reader | Laser Line Scanner, 1D Code Reader class 2 |
