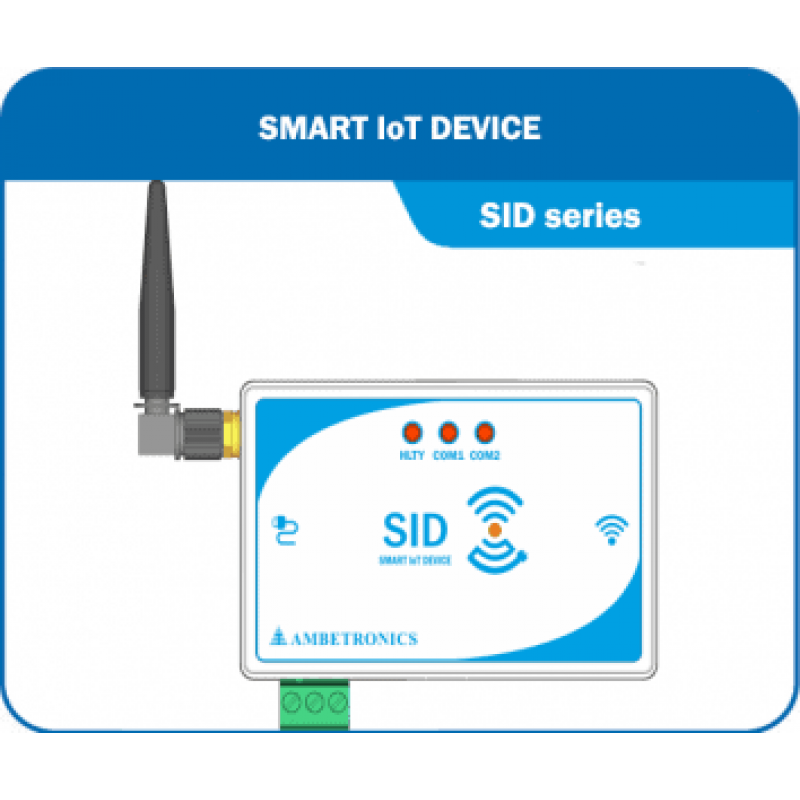

Smart IoT Device

Description Of  Smart IoT Device :

The Smart IoT Device (SID2G485) is a versatile device which reads the MODBUS memory map of any RS-485 MODBUS protocol device and sends the data to the cloud server. The data stored can be viewed as per customer requirement on dashboard. SID is an ideal solution for online monitoring of RS-485 MODBUS data. SID mainly consist of GSM module / Wi-Fi module and microcontroller based control circuit. SIC supports generic MODBUS RTU, MODBUS TCP/IP and MODBUS over TCP/IP Protocols for data acquisition and uses MQTT protocol to communicate with IT application database on cloud.

Features :

• 96 – Nodes Compatible with GSM.
• Global supporting GSM module (2G-900MHz/1800MHz)
• Settable Alarm set-points for each channel (High/Low)
• Communication Failure detection
• Bi-colour LED indications.
• 7V to 24V DC Input.
• Adaptor base power supply 9V/12V/15V.
• Ethernet/RS-485 /RS-232 Input and Output Port (for SCADA/PLC/PC)
• Wi-Fi/LoRa/IQRF Wireless Input and Output Port.
• SMS/Email Notification.
• MQTT/TCP-IP Connection.
• Cloud Base Support System.

Technical Specifications:

DEVICE CONFIGURATION :

• Nodes : 96 (MODBUS slaves)
• Configuration : AEPL-IoT PC Software
• Operating Mode : Programming and Applications
• Security : Password protected configuration

SERIAL INTERFACE:

• 3 x RS485 ( RS-232 /Ethernet optional )
• Supported Baud Rates : 9600, 19200, 38400, 57600, 115200.
• Parity : None, Odd, Even
• Stop Bits : 1, 2
• Protocol Supported : MODBUS RTU, MODBUS TCP/IP and MODBUS over TCP/IP
• Connector : 3 pin terminal block (DB9/RJ45 Optional).

CLOUD CONNECTIVITY:

• Protocols : MQTT (TCP/IP optional)
• Data Format : JSON
• Transmission : Transparent
• Data Interval : 60 to 999 seconds

ENVIRONMENTAL SPECIFICATIONS

• Temperature Range : -10° C to 50° C
• Relative Humidity : 10% to 90% RH, Non- Condensing

WIRELESS CONNECTIVITY  Smart IoT Device (SID):

• Quad-Band : 850/900/1800/1900MHz
• Antenna : 3dbi
• SIM Slot : 1
• Connector : SMA Female
• Output Power : 2W @ 850/900MHz
• 1W @ 1800/1900MHz

HOUSING DETAILS FOR SID:

• Cabinet Material : Polycarbonate, White colour
• Dimension : 53mm (H) x 86.5 mm (W) x 20 mm (D)
• Weight : Approx 100 grms.

INDICATIONS:

• Healthy : Blue / Red
• MODBUS Communication : Blue / Red
• Network : Blue / Red
