Softening Point Apparatus (Ring & Ball Apparatus) IP 58 and IS 1205-1958

Product Details :

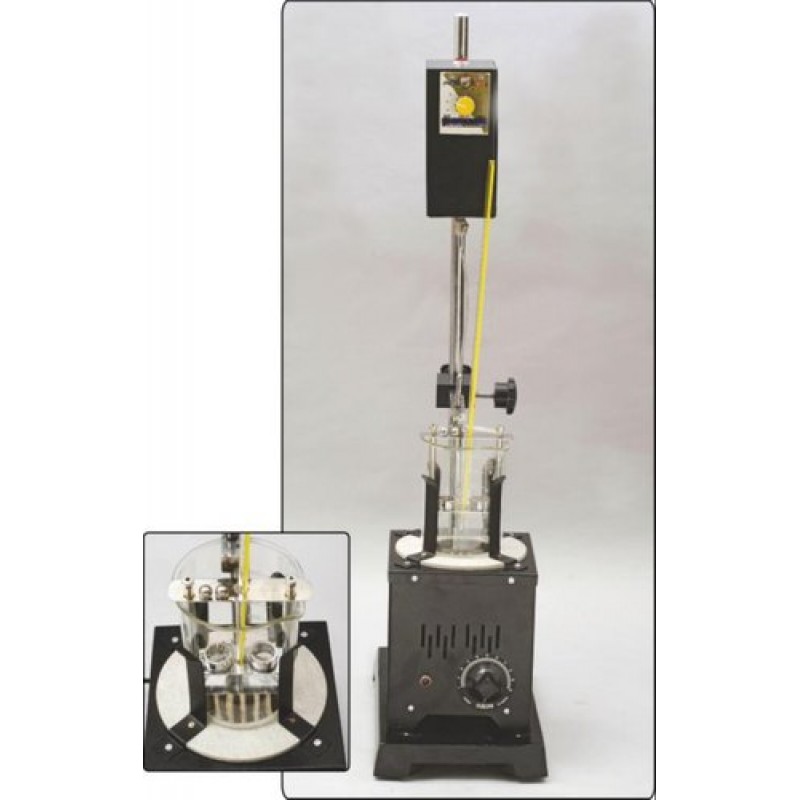

This apparatus is meant for determination of softening point of Bituminous materials according to IP 58 and IS 1205-1958. Softening point is that temperature at which the specimen under test becomes soft enough to allow a steel ball of specific dimension to fall a required distance under test condition . The apparatus consists of glass beaker, ring stand two steel balls with ring and ball guides & hand stirrer.

IIC-412     Softening Point Apparatus(without glass beaker) Rs. 3000-00

IIC-412C   Softening Point Apparatus(with glass beaker)

IIC-412/A  Softening Point Apparatus (Ring & Ball Apparatus),with electric motorized stirrer and electric heater ,stand with temperature regulator.

IIC 412/B  Softening point apparatus with motorized stirrer , electric heated by concealed hot plate with temperature regulator. Optional Accessories:1. IIC -412/A    Thermometer IP 60C.

2. IIC -412/B    Thermometer IP61C.

3. IIC -412/C    Spare Concealed Hot Plate.

4. IIC -412/D    Spare centering guide and steel ball(Pack of 2 Nos).
