Softening Point Tester :
RKA-5
- Ring-and-ball softening point tester
- For samples without sharply defined melting points
- Suitable for measuring bitumen
- Automatic assessment of results according to the requirements of the standard
The ring-and-ball softening point tester automatically determines the temperature at which a substance attains a particular degree of softness. It is used for samples without sharply defined melting points, which become softer and less viscous as the temperature rises.
The RKA 5 with its different ball-centering and dispensing devices is used for bitumen.
Key features
Benefits at a Glance
- Temperature-heating rate chart for conformity check of each test
- Multi-point temperature calibration
- Provision against the erroneous detection of air bubbles
- Automatic assessment of results acc. to the requirements of the standard
- Statistical and database functionality
- The heating system is spill-protected and in a sealed case for safe operation and easy cleaning
Convenient Operation
- A laser scanner system covers the whole beaker cross-section area. This ensures a very reliable detection of the falling ball.
- The smart jog wheel operation system (turn and push) and Pmove®, as an innovative operation platform, make it easy to select one of the pre-set standard programs or choose one of the 20 user-definable settings.
Customized User Flexibility

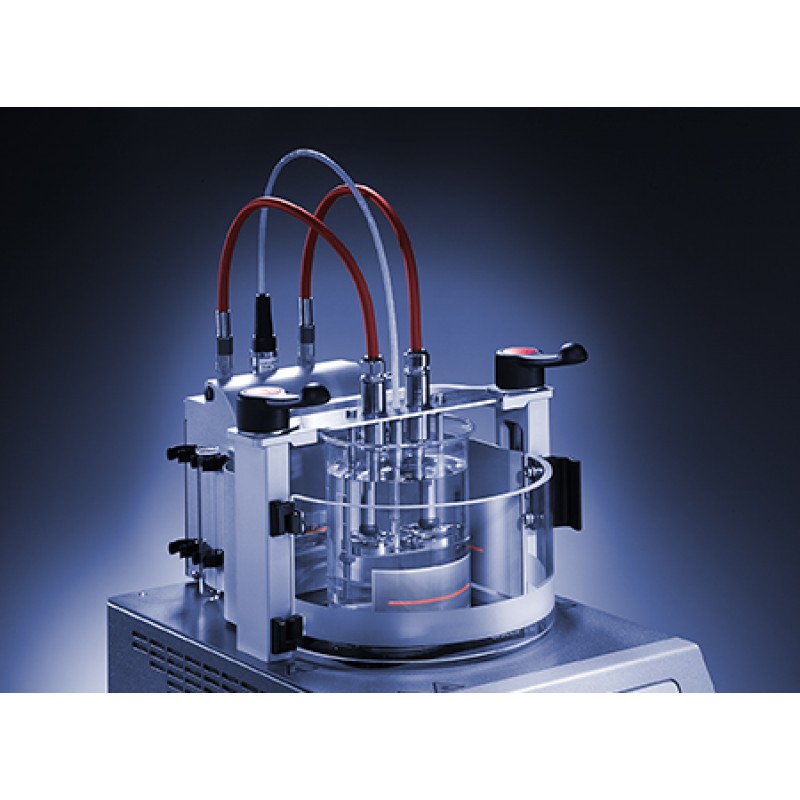

- Automatic electromagnetic ball-dispensing system (optional) recommendable for softening points > 80 °C.
- It consists of a standard test rack and centering guides in combination with two electromagnetic holders for the automatic ball dispensing after 15 min.
- Bar code scanner (optional) for up-to-date sample identification
Technical specifications :

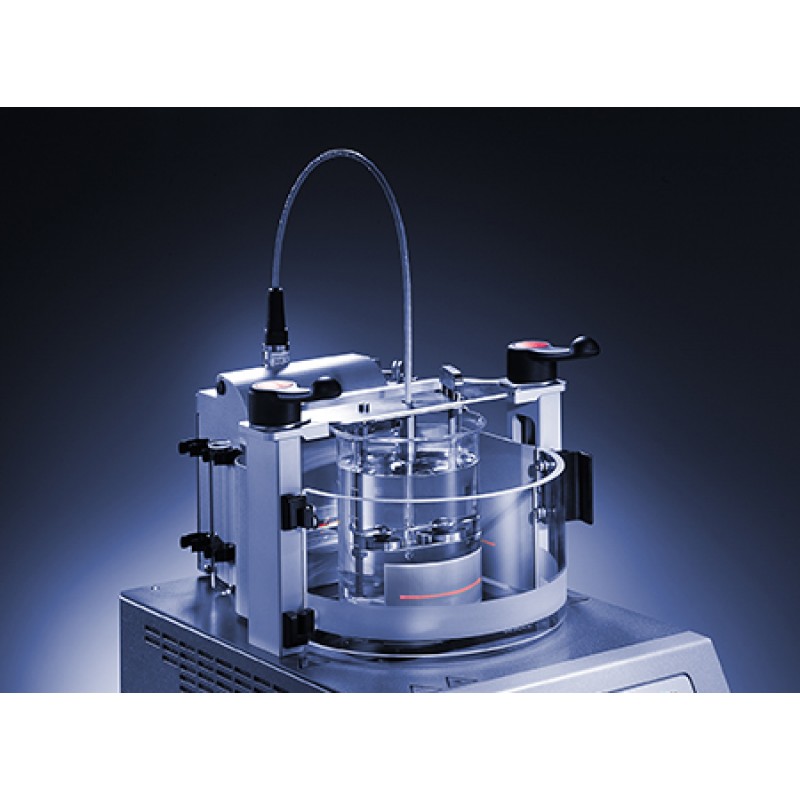

Configuration | RKA 5 incl. test rack with manual ball-centering and dispensing device |
---|---|
Application range | up to 160 °C |
Test places | 2 |
Heating | IR radiation, ROBAX® heating plate, spill-protected |
Stirring | 100 rpm to 150 rpm (program-dependent) |
Display | 5” graphical color, graphical menu guidance |
Cooling after test | Powerful fan |
Temperature probe | Pt100 (4-wire, gold contacts) |
Interfaces | RS232, 3x USB, LAN, LIMS compatibility |
Power supply | 115 V or 230 V, 50 Hz/60 Hz, 1.2 kW |
Dimensions | 230 mm x 470 mm x 520 mm (W x D x H) |
Weight | approx. 12 kg |
Resolution | 0.1 °C |
