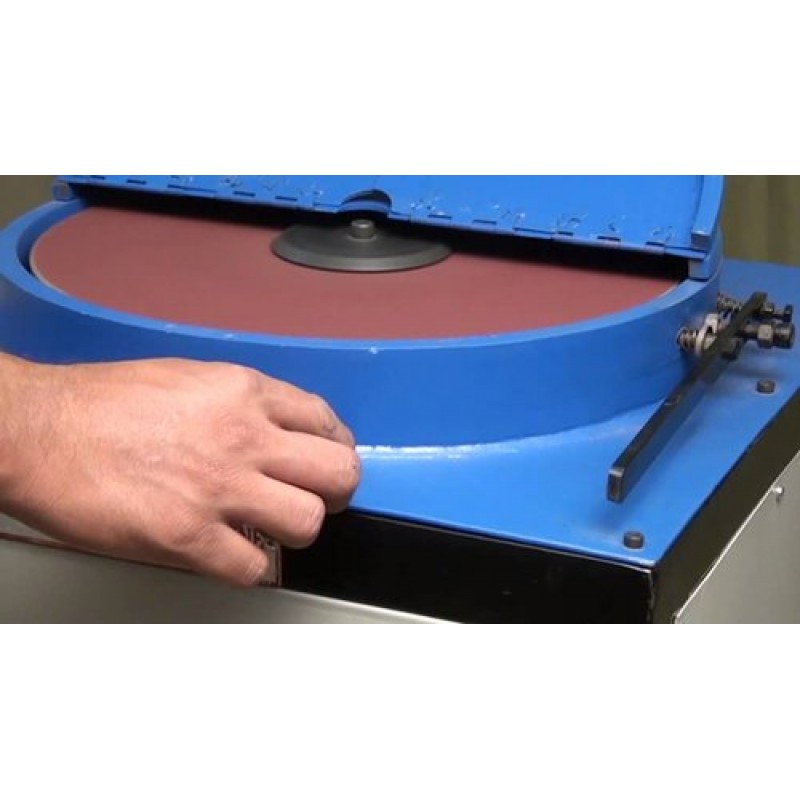

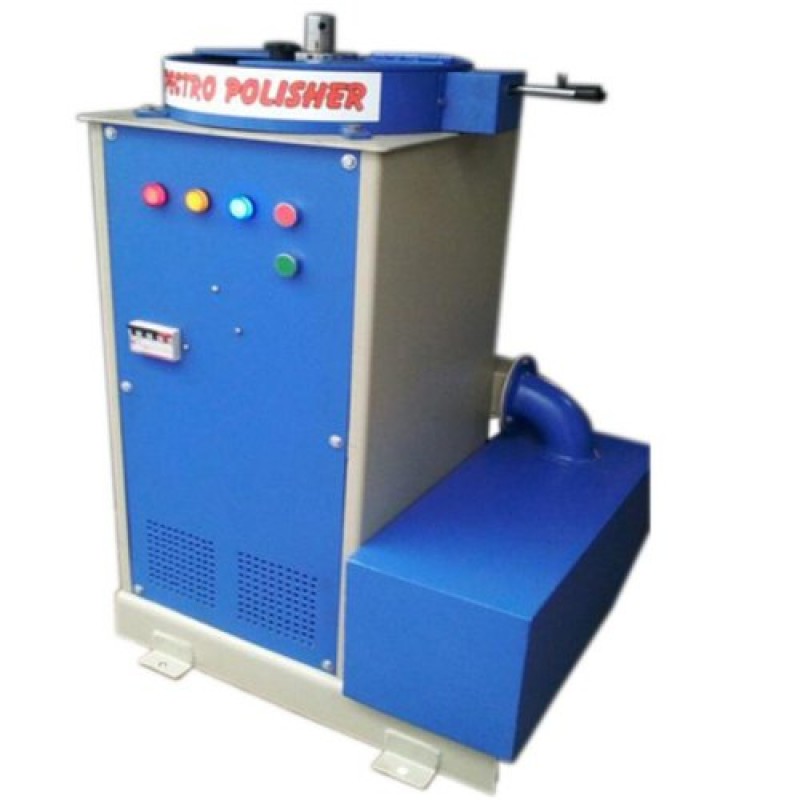

Spectro Sample Polishing Machine
Product Details :
Brand | fine testing |
Automation Grade | semi automatic |
Machine Capacity | 2880 RPM |
Automatic Grade | Semi-automatic |
Power | 3 Phase |
Finishing | powder coated |
Material | ms |
Voltage | 440 |
This Spectro Sample Polishing Machine is Used to Polish the Metal Samples Whose Chemical Analysis to be done.
Features :
- The Machine Consists Of Heavy Duty Frame
- Abrasive Polishing Paper Mounted On Polishing Disc is used to Polish the Samples
- Rotating Disc With Vacuum Clamped Abrasive Disc
- Abrasive Paper Disc (350 MM Diameter, 40 MM Bore), 60 Grit
- Vacuum Abrasive Paper Disc Clamping
- Motor Starters For Disc And Blower To Protect Motors From Over Current
- Dynamically Balanced Disc
- Quick Paper Change (Single Bolt)
- Compact In Size
Technical Specification :
- Disc Diameter – 350 MM
- Disc Bore- 40 MM
- Single Speed – 2800 RPM
- Disc Motor – 1 OR 2 HP, 2800 Rpm , 50 HZ, 415 V Ac Supply
- Suction Motor – 1 HP, 1400 Rpm, 415 V Ac
- Starter – L & T Make Push Button D.O.L Starter Type With Overload Preventer
- Variable Speed is also available
