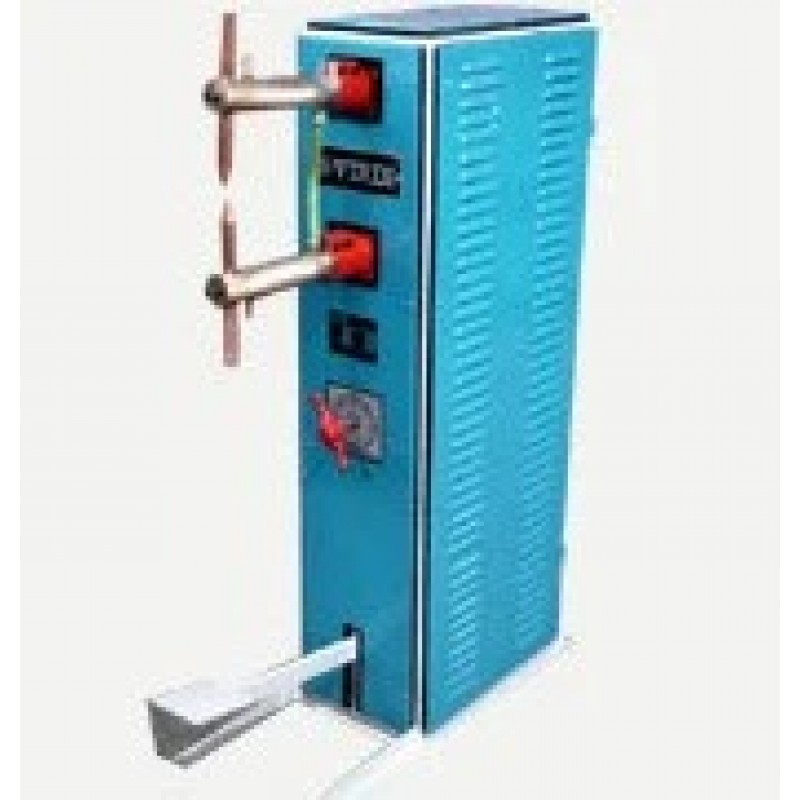

Spot Welding Machine

• High weld abilities are achieved with special type of transformer.
• Ability to weld thick material at low speed using short length arms.
• In Manually operated machine at low speed using short length arms.
• Easy maintenance.

Construction

The unit is of robust construction sturdy heavy rigidly reinforced welded steel construction. It combines a compact streamlined appearance with maximum resistance to mechanical deflection. The transformer enclosed in the main frame and is easily accessible, for inspection.

Welding Transformer

Manufactured from high grade materials of copper strips and sections, water cooled with class ‘F’ insulation with standing continuous temperature rise of 140`C. The coils are impregnated and tropicalised.

Current Control

By tap method with 8 tap adjustments on primary of the main transformer having current control from 50% to 100% in 8 steps.
