Spring Testing Machine

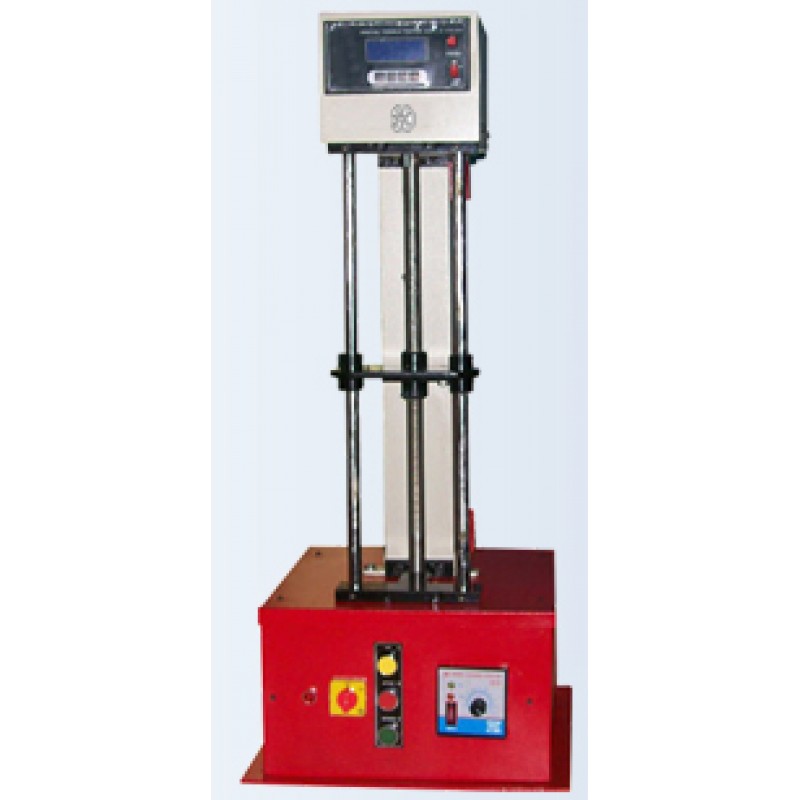

RISHIKESH Digital Spring Testing Machine is designed to test the compression load vs. length and tension load vs. length in kgf. The extension and compression length is monitored in the digital display in mm by 0.01mm and the force is displayed in kgf the machine can also use for tensile and elongation of various materials and other force related test can also done with specified fixtures.

Display unit : The display unit shows the force in kg and linear measurement in millimeters by 0.01mm

Technical Details

1. Test capability: Load Cell

2. Maximum Load 50kgf

3. Maximum Extension : 300mm

4. Test feature : Compression and Extension.

6. Motor : ¼ HP DC

7. Drive : DC variable controller

8. Power : 220 - 230V AC
