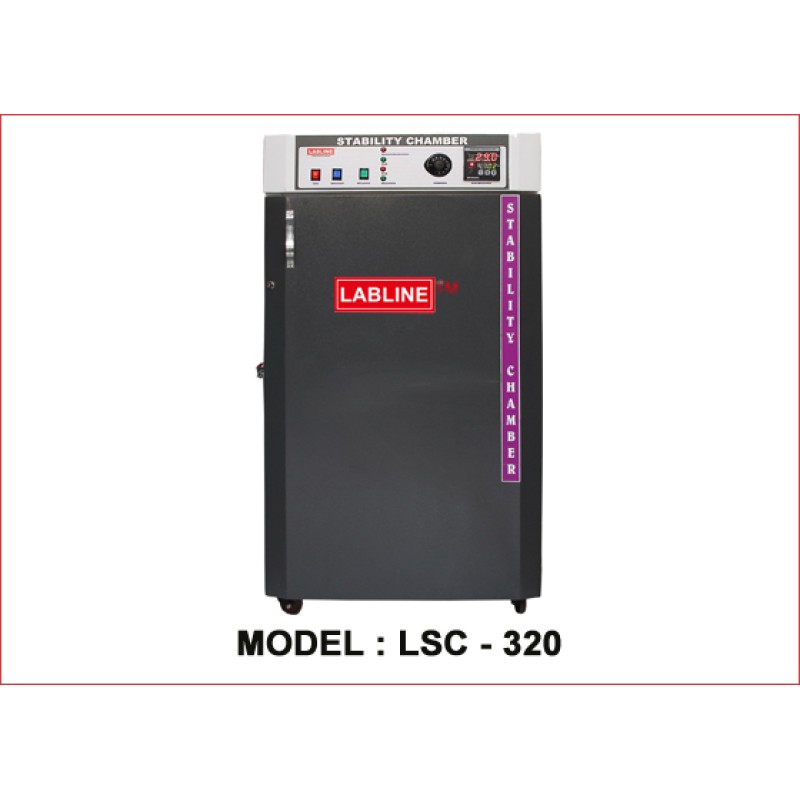

Stability Chamber / Environmental Chamber / Humidity control

Unique Features :

• Ergonomic Design
• Flexible & Space Saving Stability Chamber
• Superior Functionality
• Negligible Maintenance
• High Temperature Accuracy
• Better Temperature Uniformity
• Long - Term stability tests

Technical Data :

• For conditions as per ICH guidelines ( International Conference of Harmonization) 250C - 60% RH/400C - 75% RH/ 300C - 65% RH/ 250C - 40% RH/ 400C - 25% RH/ 300C - 35% RH.
• Temperature Range : 10.00C to 60.00C
• Accuracy/ Uniformity : ± 0.10C / ± 10C
• Humidity Range : 25% to 95% RH
• Accuracy/ Uniformity : ± 2% RH / ± 3% RH
• Temperature / Humidity display : Digital LED 3.5 digit.
• Control : Microprocessor based PID control Auto tune.
• Resolution : 0.10C / 1% RH
• Temperature sensor : PT - 100
• RH sensor : Direct capacitance type
• Heating : 'U' shaped tubular heater in stainless steel.
• Cooling : CFC free Copeland make compressor utilizing R 134A eco friendly refrigerant, with condenser, motor and relay or as per the requirement of customer for higher accuracy.
• Steam injection : Boiler with reservoir made of thick stainless steel, with heater, water inlet control, low water level safeguard
• Air circulation: cooling type fan with impellar / blower and flange type motor.
• Construction : Double wall, outer cabinet mild steel powder coated and inner chamber stainless steel 304 grade, Double door - outer metal body and inner acrylic door.
• Chamber illumination :Fluorescent light with door switch.
• Castor wheels for easy move ability with minimum weights bearing of 50kg.
• Trays : Stainless steel wire mesh heavy duty.
• Electrical : 230V / 15A / 50 Hz
• Calibration certificate by ERTL - Mumbai with traceability ERTL.

Safety Features :

High Temperature safety cut off

Low water level boiler cut off

Electrical overload cutoff relay for compressor

Time delay for compressor switch ON

Electrical circuit breaker

Pre Installation Mandatory Requirement :

(Guarantee void in case of non compliance)

Distilled water or DM water continuous supply with tap for boiler input of % "BSP at 3 feet height.

Room temperature around machine preferably at 250C with air conditioning or a well ven lated room with exhaust fan. However, surrounding temperature should not exceed 300C.

Stabilized input voltage of 230V A.C Amps. Use of servo controlled stabilizer is recommended.

Water Drain line with 1/2" nozzle to be provided at floor level.

Optional Accessories :

• Micro PLC Based Control & Recording system for Reach in stability testing chamber with in - built Recording, PC Interface with 21 CFR Software, DOT - Matrix Printer Interface.
• R.H. Imported Sensor for 100 % RH Readings
• Standby Refrigeration Systems as per capacity.
• PLC for auto change over for standby refrigeration.
• CFR 21 part 11 compliance software for PLC with Rs. 485 or Ethernet Communication.
• Data Logger for Rs. 485 communication system with PC Connectivity.
• 4, 8 and 12 channel Data Scanner complete with sensor RH and PT-100 Sensor.
• SMS Mobile alert system.
• Door Access Security system.
• Safety Digital Temperature Controller
• Timer
• Recommended Stabilizer.
