Super Speed Kymograph

Product Details :

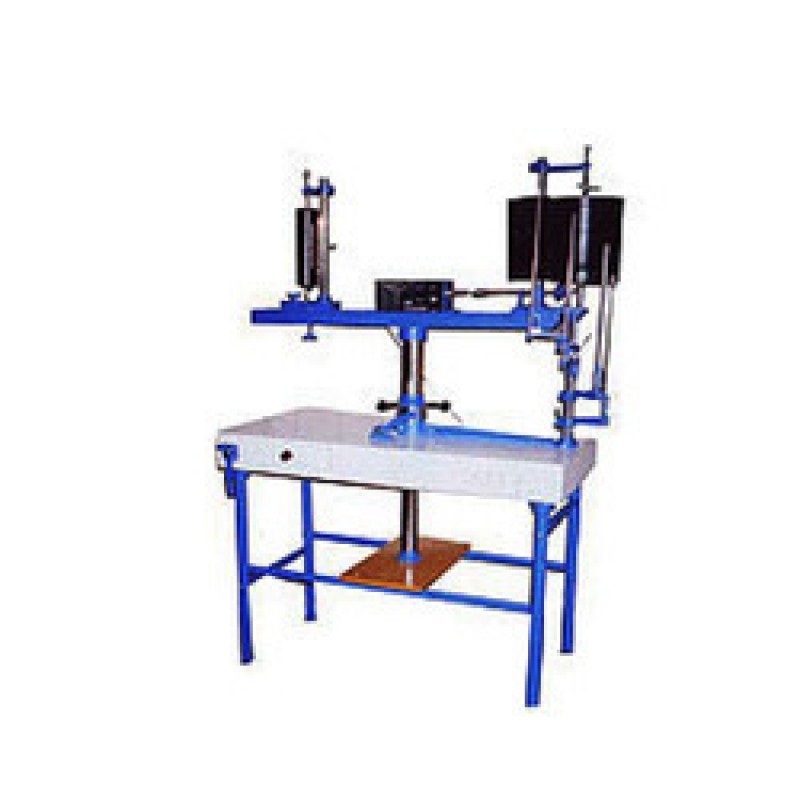

Super Speed Kymograph MSW-023:

Super Speed Kymograph (Research Kymograph) (Starling Long Kymograph) (Brodies Kymograph) UNILAB offer very good quality super speed Kymograph with improved lifetime pinion lift. The range of fine vertical adjustment 15 cms. Close mesh 10-speed gearbox, gear ratios 1:2 no. Backlash. Instantaneous start at all speeds with built-in vibration free, noiseless motor, speed variation from 1 rev. In 25 min. For 25 min. To I rev in ii hours. Permissible paper length 2.5 meters, adjustable along machined 120 cm bed; automatic paper tensioning devices, flat writing surface attachment 3 jointed arm upright with fine tangential adjustment, auxiliary cylinder with fine tilt adjustment to permit equalization of tension at the top & bottom of the paper, neutralization clutch for immediate start & stop, centralized electrical points for respiration pump, time clock, and operation table, mounted on heavy metal platform with castor, with manometer & two way time marker. Super Speed Kymograph assembly, comprising:-

• Super Speed Kymograph with manometer & time marker.
• Starling respiration pumps 500 cc cap. A geared motor coupled.

• All mains a.c. Time clock, permitting time marks 1, 5, 10, 30 or 60 sec.

Additional Information:

• Production Capacity: 50
• Delivery Time: 15
• Packaging Details: Wooden Box export worthy.
