Laser Plummet
Click Image for Gallery
Laser Plummet Laser Plummet
Laser Plummets
Product Details:
Heavily used in industry installations, and construction, distortion observations and engineering inspections, as well as various other engineering and surveying worksites. During construction, Laser plummets transfer points of reference, on large construction sites, in particular, with tall buildings, tunnelling and areas where accurate vertical alignment is critical.
The visible infrared radiation or a monochromatic beam of light that provides a number of reference points for aligning the instrument. Laser plummets are designed with accuracy and are ideal for mining or larger construction jobs and for the construction of vertical lift shafts.

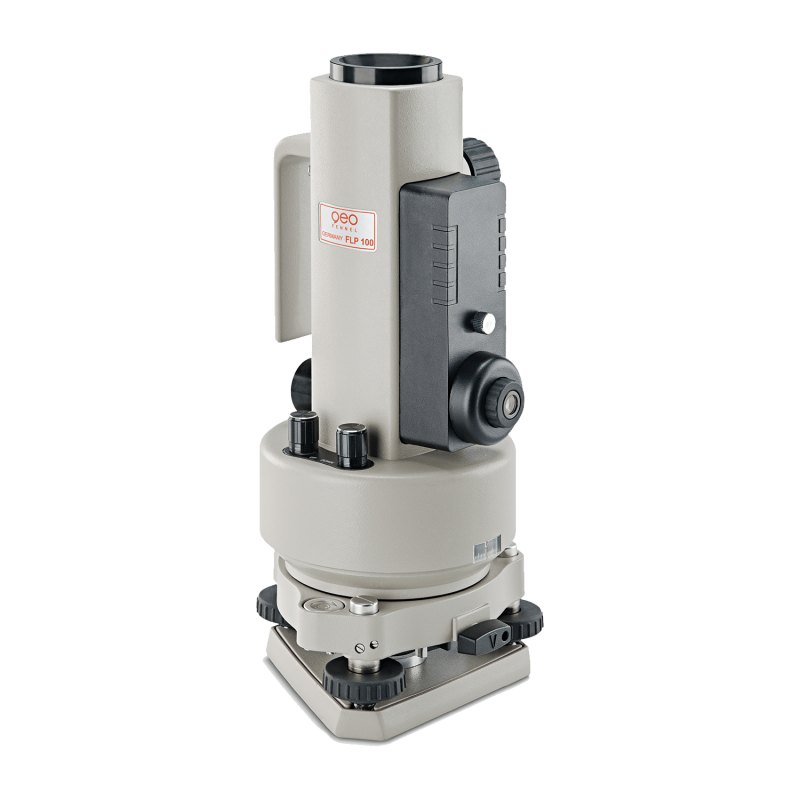

GeoFennel Germany, Laser Plummet Model FLP-100
A precise laser plummet incorporating a coaxial telescope for both laser and optical observations.
Features
  • Easy to use with two laser plummets (up and down)
  • Laser dot visible up to ≥ 120 m
  • High accuracy for precision work

Specification

Dust / water protection:
IP 54
Max. visible distance:
≥ 120 m (day), ≥ 250 m (night)
Operation temperature:
-10 °C to +50 °C
Weight:
2,8 kg
Plate level:
20″ / 2 mm
Accuracy:
± 1 mm / 1.5 m (floor), ± 2,5 mm / 100 m (above)
Deviation to optical axis:
≤ 3″
Spot size Ø:
3 mm / 80 m (above)
Power supply:
2 x AA Alkaline
Laser wave length:
350 nm (floor), 635 nm (top)
Laser class:
1 (floor), 2M (top)
Telescope magnification:
26 x
Shortest focussing distance:
0,4 m
Objective diameter:
36 mm

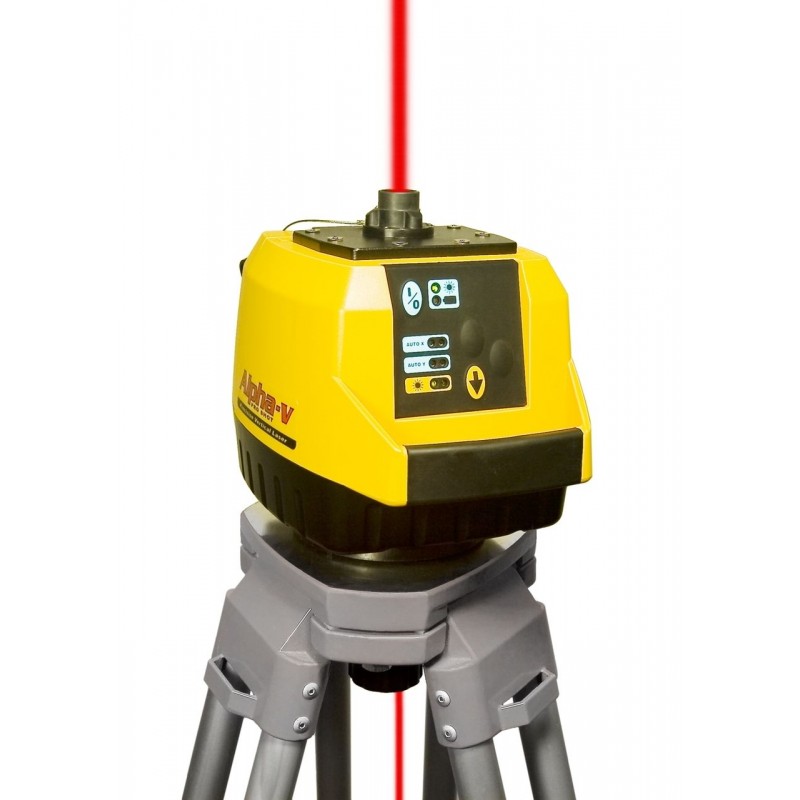

ProShot USA Laser Plummet Model Alpha VWhen accuracy is critical, the Alpha-V is the laser you can rely on.  Starting with the highly reliable Alpha chassis, our engineering team hand builds and tests this specialty laser to exacting standards. The results an instrument that will consistently perform to high tolerances, under real world jobsite conditions.

Specifications

Measurement range upto
100 meters (330 ft)
Measurement range down
5 meters (16 feet)
Beam accuracy up/down
+ 5 arc sec / + 1 arc min
Self-Levelling range / type
+4 Degrees/ Servo meter
Up beam spot dia (nom.)
Exit 9.5 mm/ 100 M: 12 mm
Exit 3/8 in/ 330ft : 7/16 in
Down beam spot dia (nom.)
Exit 3.0 mm/ 5M: 4.8mm
Exit 1/8 in/ 16ft : 3/16 in
Power supply
Four C-Cell Alkaline Batteries
Run time : down beam on
65 hrs
Automatic Shut-Off
If off-level longer than 3 min
Dust and water sealed
To International std. IP56
Operating Temperature
-10 deg C to +50 deg C
Laser Type
Diode: 635nM high visibility
Laser output power (Typ)
Up 2.25 mW/ Down : 2.25 mW
Laser Classification
Class 3A/IEC 825-1 Class 3R
Height / Weight
6.5 in (16.5cm)/ 4.0 lbs (1.8 kg)
–
–
