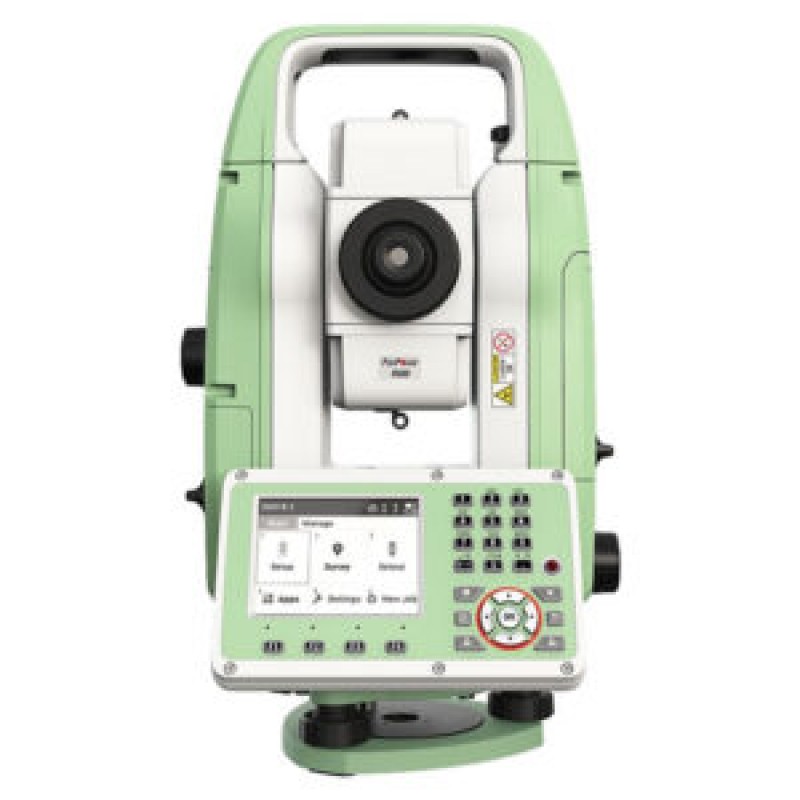

• Leica Flexline TS03 Total Station

  Product Details:

• Leica Flexline TS03 Total Station high-quality, manual total stations are based on a proven product concept that has been revolutionizing the world of measurement and survey for nearly 200 years. The instruments are equipped with a comprehensive application-based software package – Leica FlexField software – that enables most surveys and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments.

SPECIFICATION
Leica FlexLine TS03
ANGULAR MEASUREMENT
Accuracy Hz and V        Absolute, continuous, diametrical

• Leica FlexLine TS03
  ANGULAR MEASUREMENT
  Accuracy Hz and V        Absolute, continuous, diametrical      2’’ / 3’’ /5"
• Display resolution: 0.1″ (0.1 mgon)
• Quadruple axis compensation
• Compensator range: +/- 3.78′ (+/- 0.07gon)
• Electronic level resolution: 2″
• Circular level sensitivity: 6′ / 2mm
• Quadruple axis compensation
• Compensator setting accuracy: 0.5″ / 1″/ 1.5″ / 2″            yes
• DISTANCE MEASUREMENT
  Range
• Prism (GPR1, GPH1P): 1.5m to 3.500m
• Prism GPR1 (Long Range mode) > 10.000m                  yes
  Non-Prism / Any surface
  R500         yes
  R1000 no
  Accuracy / Measurement time Single prism

• Precise+ / Once: 1mm + 1.5ppm (typical 2.4s)
• Precise&Fast / Once&Fast: 2mm + 1.5ppm (typical 2s)

• Tracking / Continously: 3mm + 1.5ppm (typical < 0.15s)
• Averaging: 1mm + 1.5ppm

• Long Range mode / > 4km: 5mm + 2ppm (typical 2.5s)            yes
  Non-Prism / Any surface
• 0 m – 500m: 2mm + 2ppm (typical 3-6s)
• > 500m: 4mm + 2ppm (typical 3-6s)                                         yes

Laser dot size

• At 30m: 7mm x 10mm

• At 50m: 8mm x 20mm
• At 100m: 16mm x 25mm                                                          yes
  Telescope
• Magnification: 30x

• Resolving power: 3”
• Focusing range: 1.55m / 5.08ft to infinity

• Field of view: 1°30’ / 1.66gon / 2.7m at 100m                             yes
  GENERAL

Display and keyboard 3.5“ (inch), 320 x 240 px QVGA, grayscale, 28 keys yes

2nd keyboard no
Key illumination no
Operation

• Endless drives for HZ & V
• Trigger-Key: user-definable with 2 functions                        yes
  Power management Exchangeable Lithium-Ion battery yes
  Operating time with GEB361 up to 30h

           Operating time with GEB331    up to 15h
            Battery charging time with
          GKL341 charger for GEB361 / GEB331 3h 30min / 3h
         GKL311 charger for GEB361 / GEB331           6h 30min / 3h 30min
Data storage

• Internal memory: 2GB Flash

• Memory card: SD card 1GB or 8GB
• USB memory stick: 1GB                                           yes
  Processor
• TI OMAP4430 1GHz Dual-core ARM® Cortex™ A9 MPCore™

• Operating system – Windows EC7          yes
• Interfaces RS2327, USB device           yes
  Bluetooth®8, WLAN9 no
  Mobile Data side cover: LTE-Modem for internet access no
  Guide Light (EGL)
• Working range: 5m to 150m
• Position accuracy: 5cm at 100m

• Wavelength red /orange: 617nm / 593nm               no
  Laser plummet
  (Laser class 2) Accuracy
• Plumb line deviation: 1.5mm at 1.5m instrument height

• Diameter of laser point: 2.5mm at 1.5m instrument height                yes
  AutoHeight module for automatic instrument height measurement (Laser class 2) Accuracy
• Distance accuracy: 1.0mm @ 1m

• Distance range: 0.7m to 2.7m               no
  Weight 4.3kg
  Environmental specifications Working temperature range: –20°C to +50°C yes
  Arctic version: –35°C to +50°C no
  Dust / Water (IEC 60529) / Humidity: IP66 / 95%, non-condensing yes
  Military Standard 810G, Method 506.5 yes
  FEATURES
  Leica FlexLine TS03 is a classic manual total station for standard measuring tasks, enabling you to carry out most survey and layout tasks easily and efficiently.
  Be it building construction, civil engineering, or surveying and mapping – the Leica TS03 helps you tackle your daily challenges and tasks trouble-free:
  Managing directors of construction departments benefit from minimal downtime of your survey crews to deliver projects under budget and in time.
  Survey managers can rely on the highest product durability in the market, which increases your planning certainty.
  Surveyors work faster by measuring more points per day with fewer measurement errors and rework.
  Leica FlexLine: The new generation of manual total stations
  The new Leica FlexLine series is based on a proven product concept, revolutionizing the world of measurement and survey for nearly 200 years. Unlike any other manual total stations in the market, Leica Geosystems manual total stations focus on providing the highest quality, the lowest total cost of ownership, and the longest durability in the industry, enabling users to work with purpose-driven solutions for the best performance results.
  Leica FlexField software: Comprehensive, intuitive, and easy to use
  The Flexline TS03 Total Station is equipped with the Leica FlexField software, an intuitive, easy-to-use, and familiar software. Guided workflows and easy-to-understand graphics and icons ensure a low learning curve when working in the field. The software makes the interpretation of measurement values or text no longer necessary and guarantees a faster and simple operation when you need it. With its pinpoint distance measurement system, you will be able to measure both prisms and any surfaces.
  The Leica FlexLine TS03 Reflectorless Manual Total Station is one of the top-class instruments with an accurate EDM (Electronic Distance Measurement) technology that offers a reflectorless range of up to 1,640 feet (500 m). This manual total station operates a range of 11,483 feet (3,500 m) using a single prism. It is also equipped with a broad application-based Leica FlexField software for better surveying and stakeout performance.


2″, 3″ & 5″ angular accuracy

1.5m to 3500m Single Prism Range

Prism GPR1 (Long Range mode) > 10.000 m

R500 EDM – 500m Reflectorless Range

2 GB Internal Memory Approx 100,000 Points

USB Memory Stick & SD Memory Card support

3.5″, 320 x 240px QVGA, grayscale and full alphanumeric keyboard

Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering
