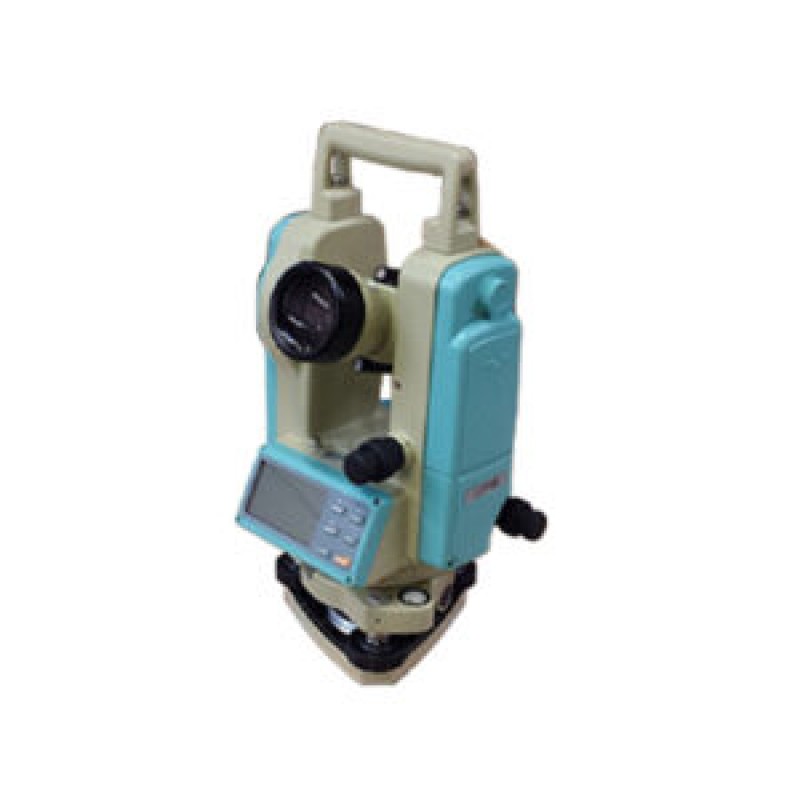

Leica LDT 05 Digital Theodolite
Product Details:
The Leica LDT 05 Digital Theodolite is designed for enhanced performance in construction applications. Work faster with the advanced features of the Leica Digital Theodolite LDT-05 to improve productivity while increasing the bottom line.
Fast set-up and easy to use The advanced features of the LDT-05 Leica Theodolite make set-up fast and very easy. The intuitive onboard functions allow most anyone to use this great tool, even those with minimal experience! Economical and affordable The LDT-05 is attractively priced to fit everyone’s budget. Contact us today for more details and a formal quote.
- 5-second accuracy – High accuracy for tight tolerances
- vertical compensation – A tilt warning occurs if out of compensation range, preventing costly errors
- Optical plummet – a Makes setting over a point a snap — much faster & easier
- Precision dual LCD panels with large, easy-to-read numbers
- Zero resetting – Instantly resets the horizontal angle to zero
- The Leica LDT-05 includes both rechargeable and alkaline battery options
SPECIFICATION
Model Leica LDT-05
Precision 5”
Display resolution 1” or 5”
Display units DEG (360° 00’ 00”), GON (400), MIL (6400), V / %
Telescope
Magnification 30x
Objective aperture 45 mm (1.7 in)
Minimum focusing distance 1.35 m (4.43 ft)
Stadia multiplication factor/constant 100/0
Compensator
System Automatic vertical compensator, User set On/Off
Working Range ± 3’
Operation
Display Double side large character back-lit LCD
Keys 6 one-touch button functions
Optical plummet
Image Erect
Magnification 3x
Field of view 5°
Focusing range 0.5m~
Environmental conditions
Protection from dust and water dust and water-resistant
Weight
Weight including battery and tribrach 4.6 kg (9.9 lb)
Battery/Power management
Type of battery Rechargeable NiMH, replacement alkaline battery pack
Operation period without laser plummet 36 h
FEATURES
Leica theodolite is a new generation technical equipment for measuring both horizontal and vertical angles, It is a key instrument for land surveying and civil engineering work. The electronic theodolite consists of a telescope movable within two perpendicular axes – the horizontal axis, and the vertical axis. When the telescope is pointed at the desired object, the angle of each of these axes can be measured very precisely.
Enhanced Reliability - 5’’ horizontal and vertical readout
- Precision dual LCD panels with large, easy-to-read numbers
- Vertical angle measuring provides three different options plus percentage of grade
Easy-to-read & easy-to-use - Auto Power Off option
- Optical plummet
- Zero resetting
Removable tribrach for multiple set-ups
Audible right-angle notification - Once the (0) horizontal angle is determined, the Leica LDT-05 emits an audible tone for each of the right angle directions
- The beeping stops when the units come within +/– 1°
Rugged IP54 protection
- Water-resistant, sealed construction
- One year warranty
